Flow Amplifier (Danfoss)
G. Counter pressure valve with orifice
shown dismantled.
2. Removing pressure relief valve.
A. Unscrew plug with washer (hexagon
socket for 8 mm internal hexagon).
B. Screw pressure relief valve out (10
mm hexagon key).
C. Remove washer (magnetic rod).

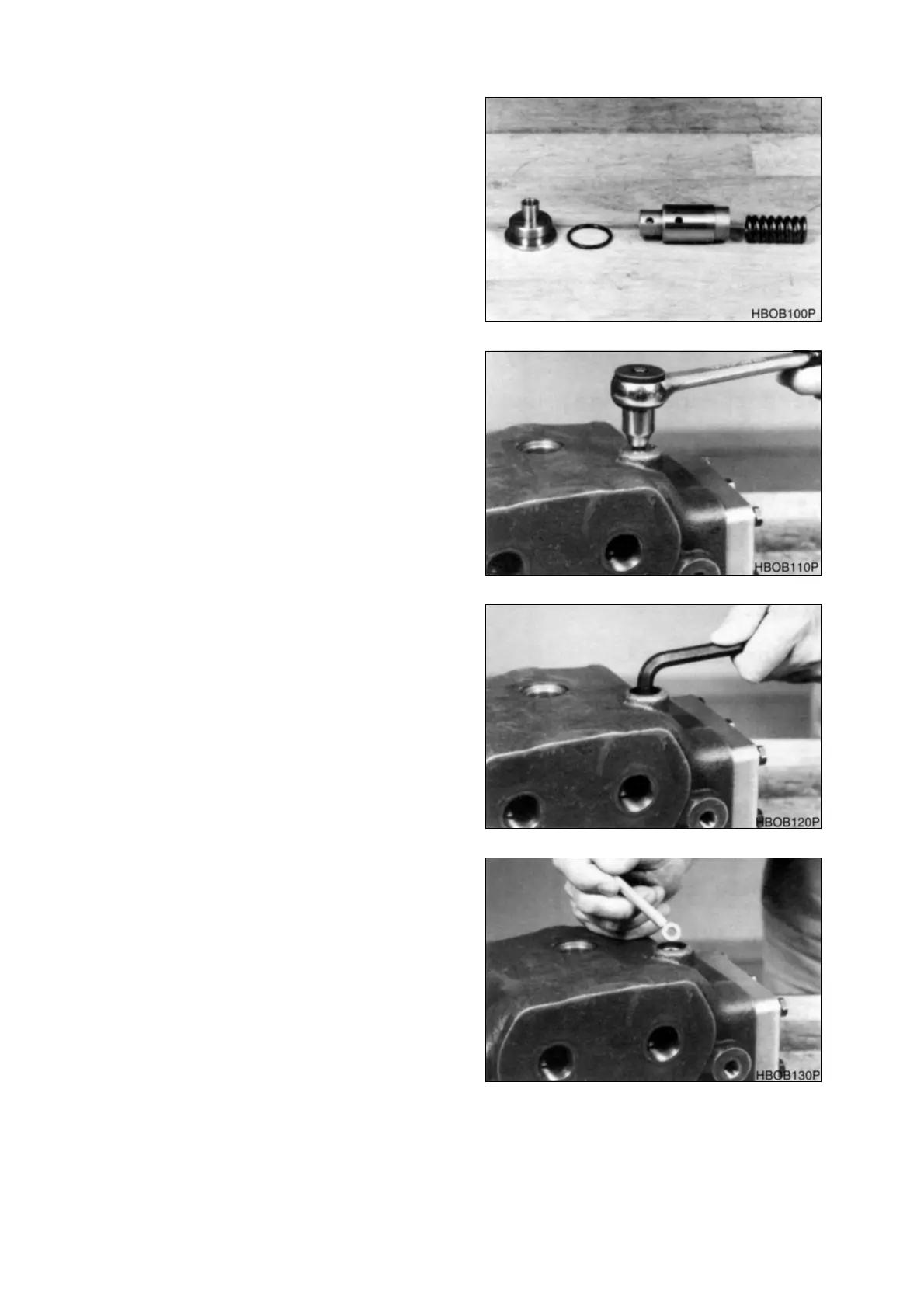

Figure 11
Figure 12
Figure 13
Figure 14
