Flow Amplifier (Danfoss)

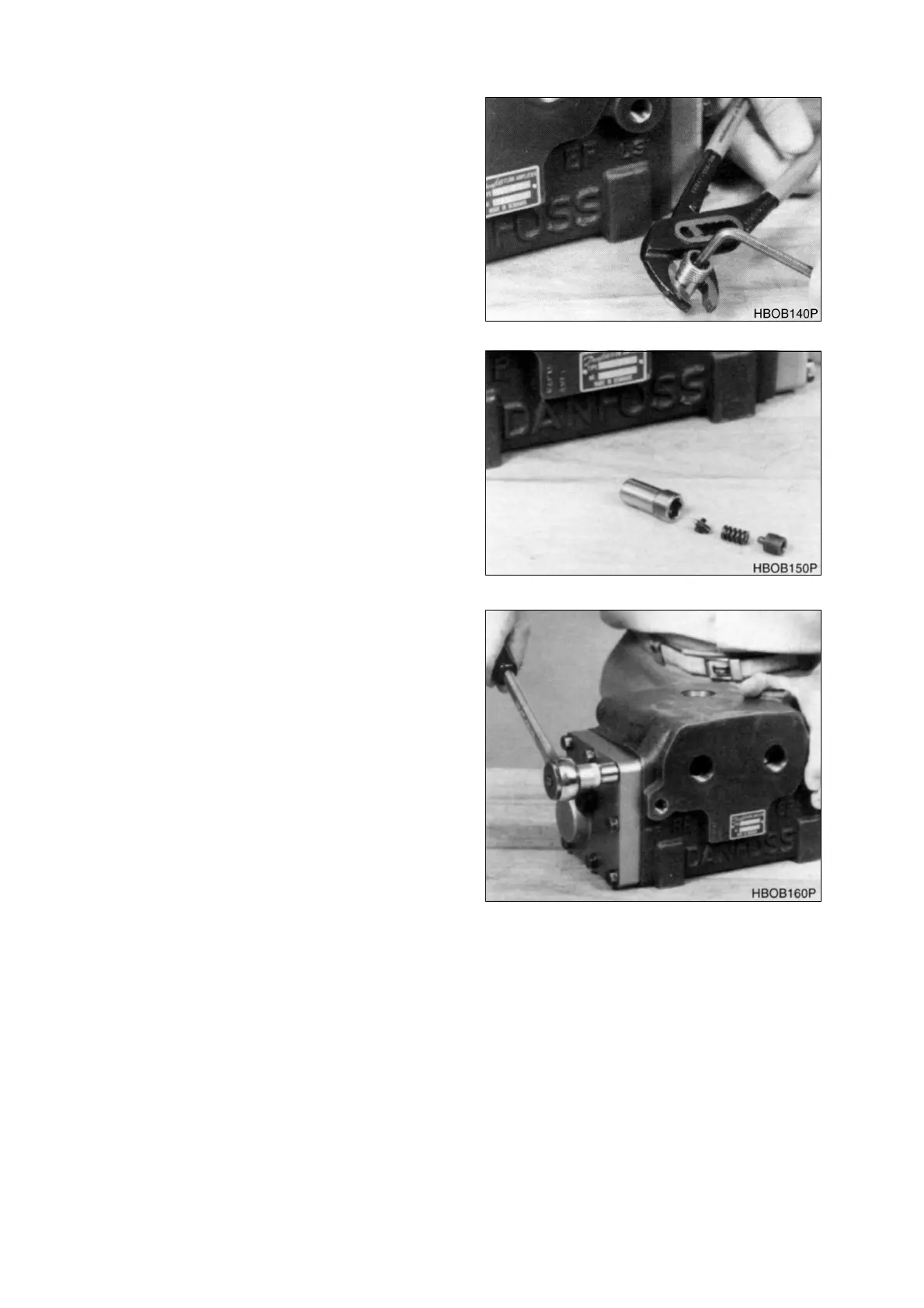

3. Dismantling pressure relief valve.
A. Hold cartridge and screw adjustment
screw out (5 mm hexagon key).
B. Pressure relief valve shown
dismantled.
4. Removing end cover at PP-connection.
A. Unscrew screws with spring washer
hexagon socket for 13 mm external
hexagon and 10 mm internal
hexagon.
Figure 15
Figure 16
Figure 17
