Flow Amplifier (Danfoss)
C. Priority valve spool with throttle
check valve for internal PP shown
dismantled.
12. Dismantling of amplifier spool.
A. Carefully remove spring from recess
with 3 mm screwdriver.
NOTE:
Avoid damage to spring ring.
B. Carefully guide spring ring back.

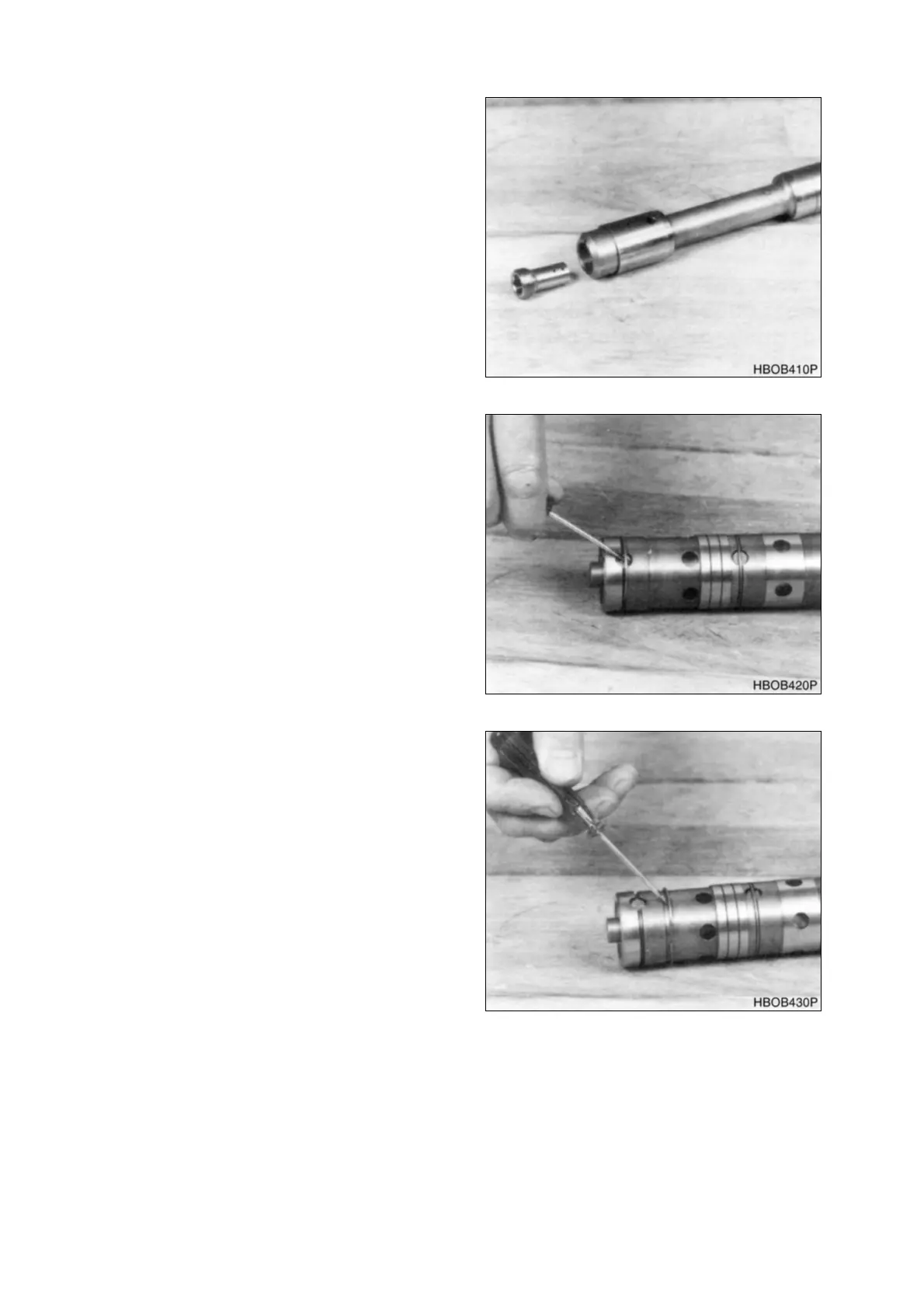

Figure 42
Figure 43
Figure 44
