Daewoo Mega 500-V - Page 576

S0709665K
Page 22
Flow Amplifier (Danfoss)

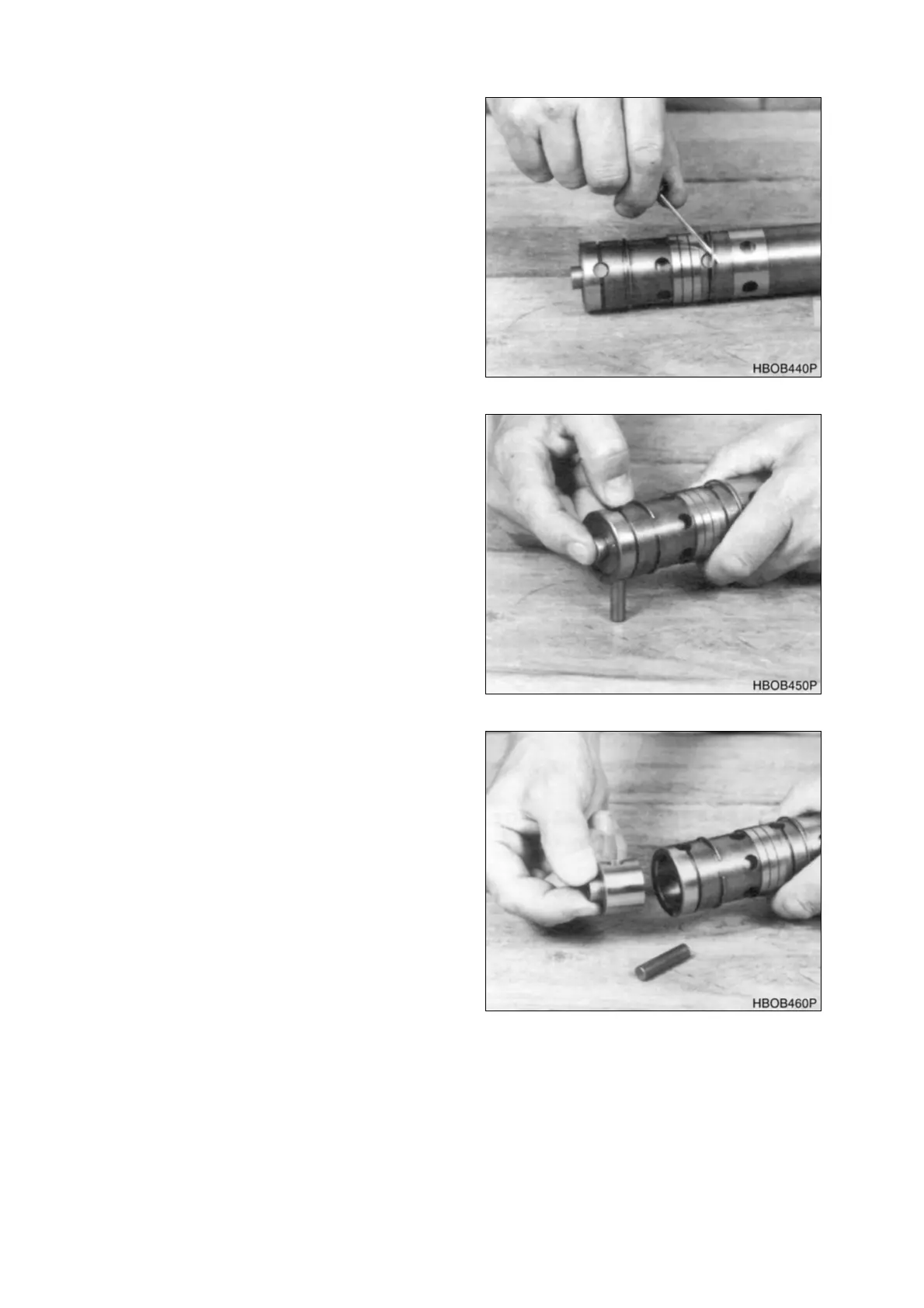

C. Carefully take spring ring from recess
and guide it back with 3 mm
screwdriver.
NOTE: Avoid damage to spring ring.
D. Press pin out gently with finger.
E. Remove plug.
Figure 45
Figure 46
Figure 47
