S0709665K
Page 33
Flow Amplifier (Danfoss)
2. Assemble check valve.
A. Install ball, spring and plug.
B. Tightening torque: 0.5 ±1 daNm. (45
±90 in lb).
3. Assembly of amplifier spool.
A. Install orifice in plug. Tightening
torque: 0.5 ±1 daNm. (45 ±90 in lb).
B. Install check valve. Tightening
torque: 2 ±0.3 daNm. (175 ±25 in lb).
NOTE:
Avoid damaging spool surface.
Remember O-ring.

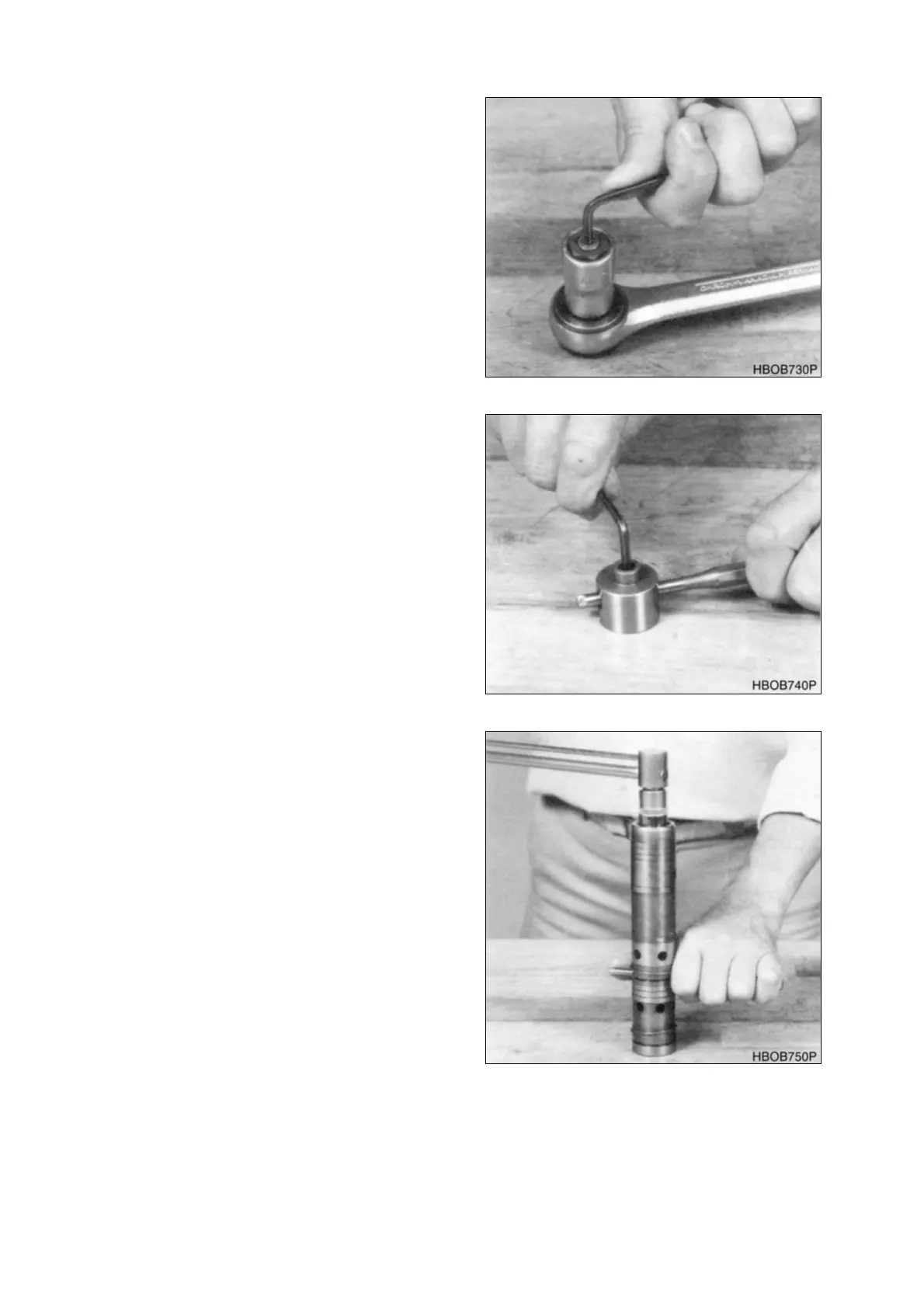

Figure 74
Figure 75
Figure 76
