S0709665K
Page 34
Flow Amplifier (Danfoss)

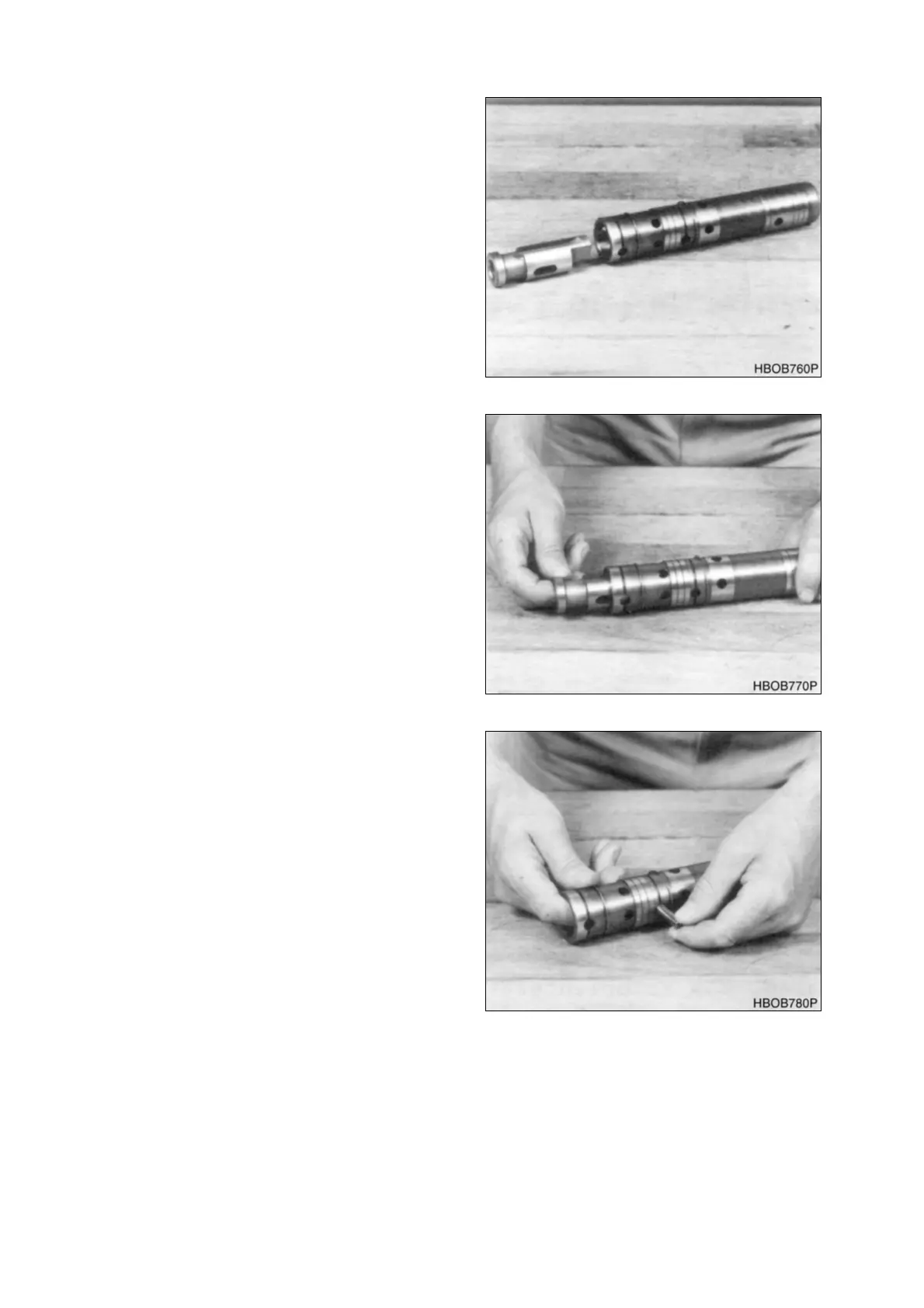

C. Place inner spool in correct position.
NOTE:
When assembling OSQA 5 and
OSQB 5 there are two ways of
installing inner spool. Only one
is correct. The pilot channel
which is faced upwards must be
lined up with one of five
amplification holes in the outer
spool.
D. Guide inner spool in.
E. Install pin.
Figure 77
Figure 78
Figure 79
