S0709665K
Page 37
Flow Amplifier (Danfoss)

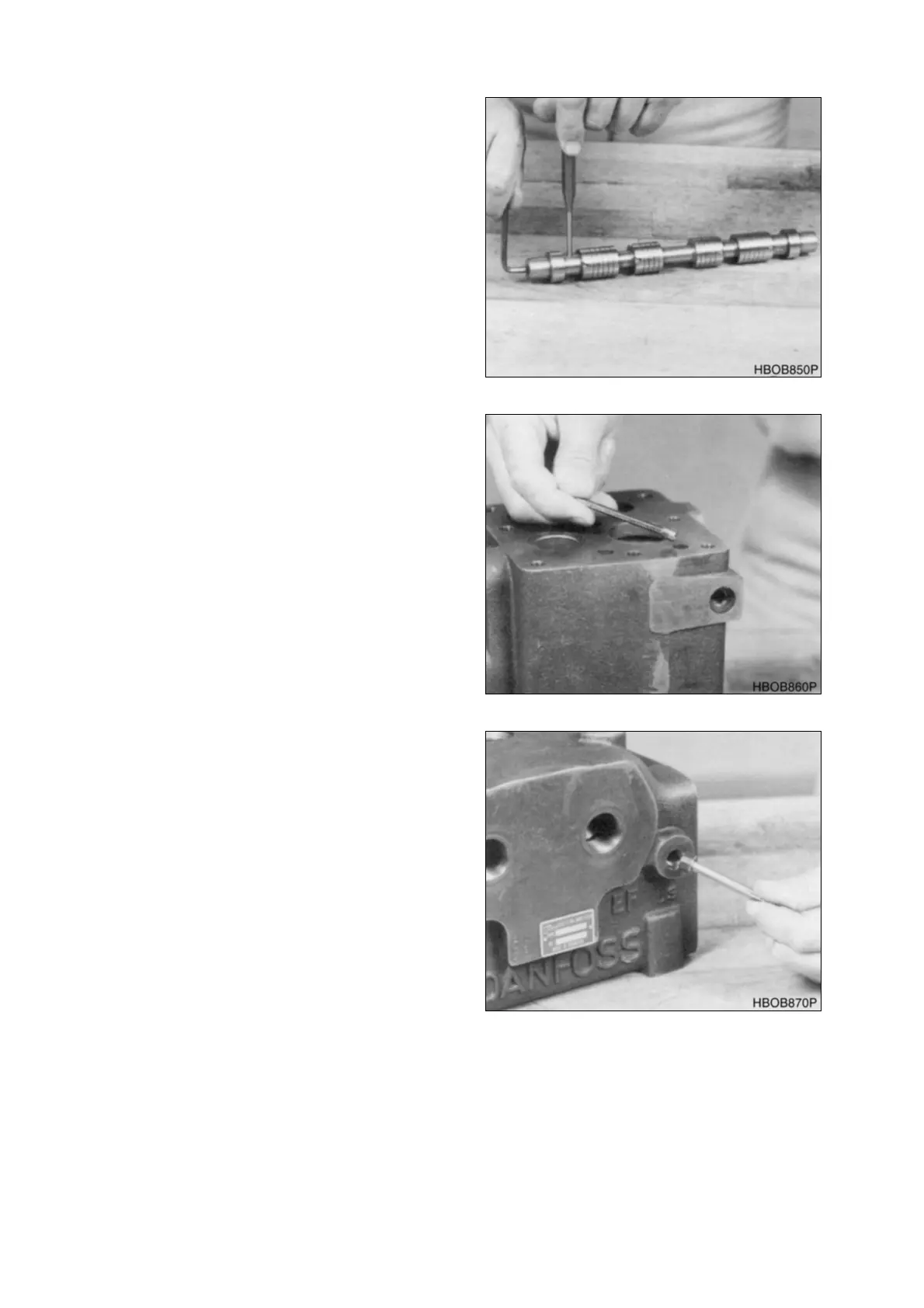

5. Assembly of directional spool.
A. Screw in orifice.
B. Tightening torque: 0.5 ±0.1 daNm.
(45 ±10 in lb).
6. Installation of orifice and throttle check
valve.
A. Install orifice in housing.
B. Tightening torque: 0.5 ±0.1 daNm (45
±10 in lb).
C. Install orifice in LS-connection.
D. Tighten torque: 1 ±0.3 daNm. (90
±25 in lb.).
Figure 86
Figure 87
Figure 88
