S0709665K
Page 38
Flow Amplifier (Danfoss)
E. Install throttle check valve in PP-
connection.
F. Tighten torque: 1 ±0.3 daNm. (90
±25 in lb.).
7. Comments on flow amplifiers with internal
PP:
A. 1/4 BSP.F in PP-connection: Install
washer and plug. Tightening torque 4
±0.3 daNm (355 ±25 in lb).
B. 7/116 - 20 UNF in PP-connection:
Install O-ring and plug. Tightening
torque: 1.5 ±0.5 daNm (135 ±45 in
lb).
8. Installation of shock valves.
A. Guide shock valve in and secure it by
hand. Remember O-ring.
9. Assembly of pressure relief valve.
A. Guide adjustment screw, spring and
cone up into cartridge.

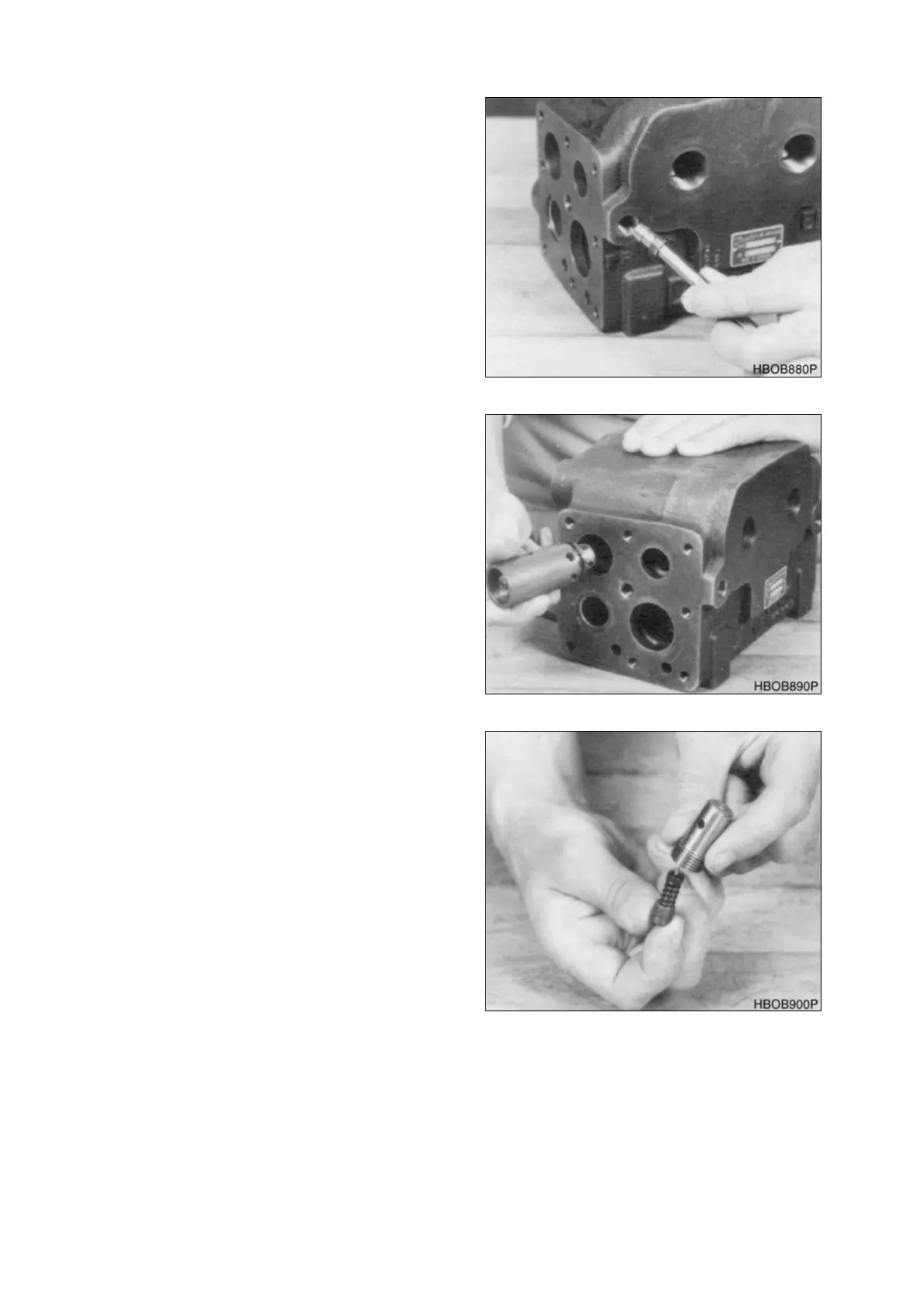

Figure 89
Figure 90
Figure 91
