Flow Amplifier (Danfoss)
B. Screw adjustment screw so far in
that 10 mm hexagon key fully
engages.

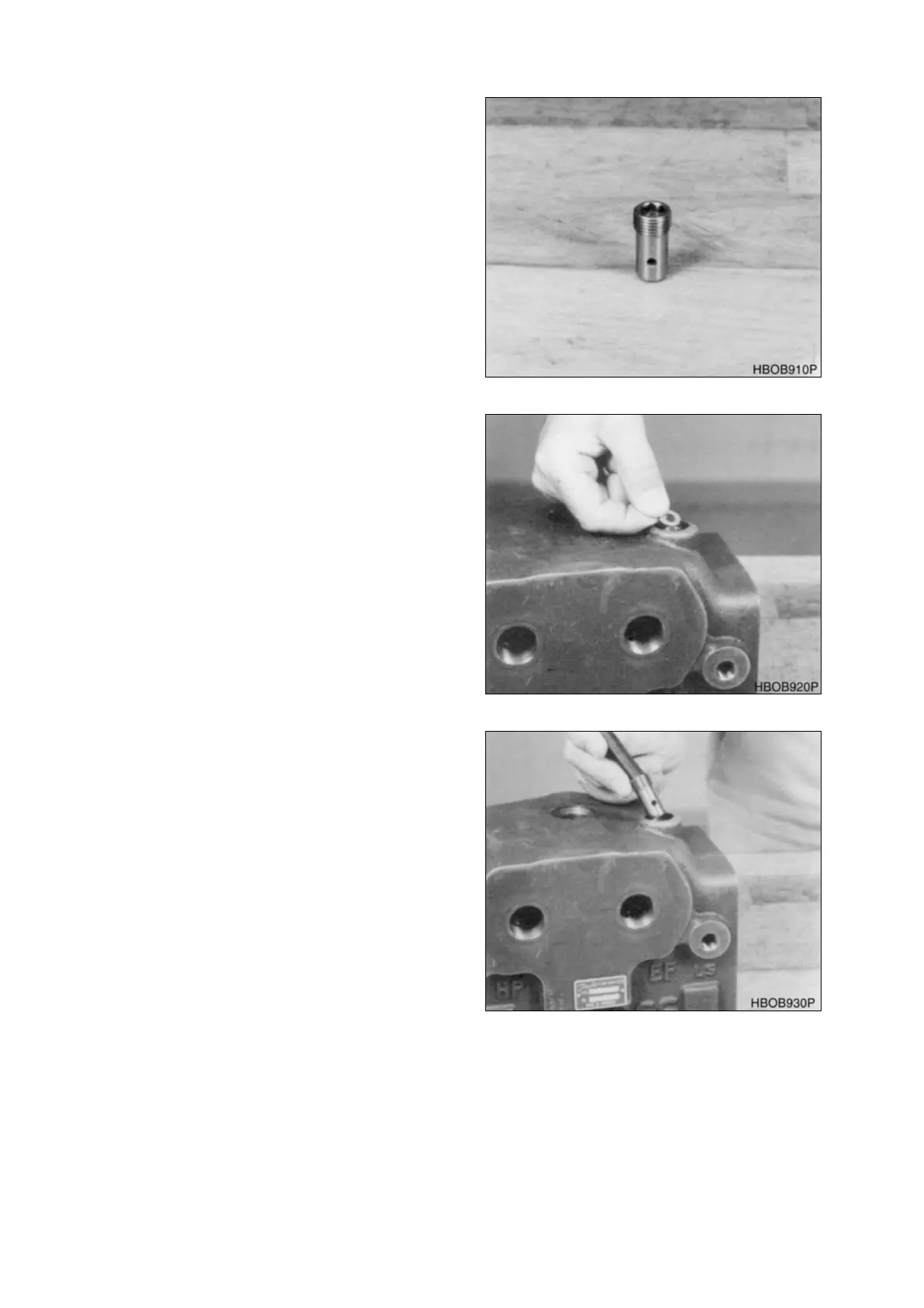

10. Installation of pressure relief valve.
A. Let washer drop into hole.
B. Install pressure relief valve. Tighten
torque: 3 ±0.3 daNm. (265 ±25 in lb).
Figure 92
Figure 93
Figure 94
