Flow Amplifier (Danfoss)
C. Install spring in plug with Vaseline.
Install assembled plug and spring.
Remember O-ring. Tightening torque
2.5 ±0.03 daNm (220 ±25 in lb).
12. Installation of spools.
A. Install directional spool. Install
priority valve spool.
NOTE:
Spring control must be placed
in correct position against LS-
connection.
B. Install spring.
NOTE:
Spring must be by LS-
connection.

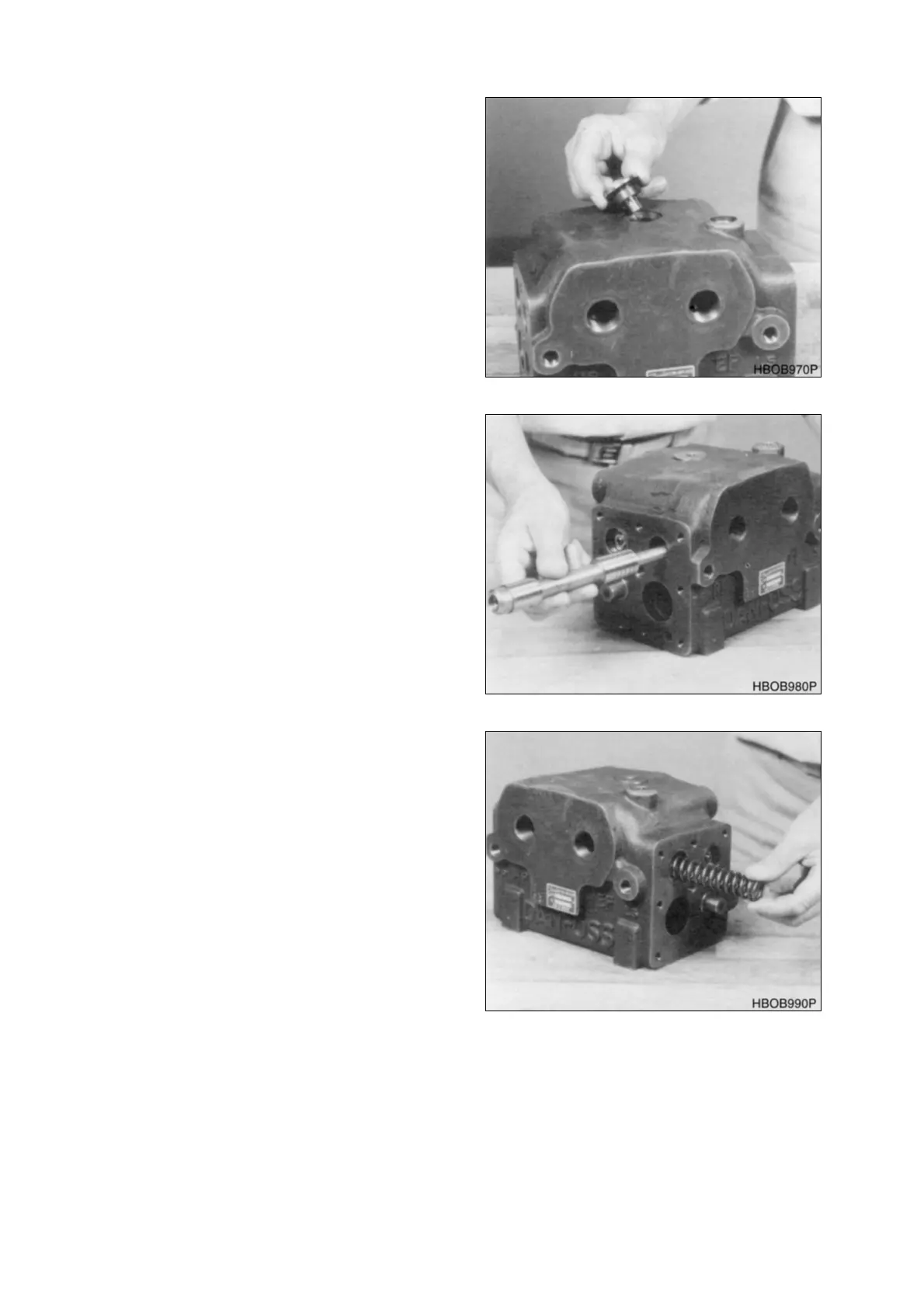

Figure 98
Figure 99
Figure 100
