Flow Amplifier (Danfoss)
C. Install amplifier spool.
NOTE:
The orifice must be placed in
correct position against LS-
connection.
13. Installation of end cover at PP-connection.
A. Install spring with Vaseline on
amplifier spool.
NOTE:
The spring must be installed at
PP-connection.
B. Install spring guide with Vaseline.

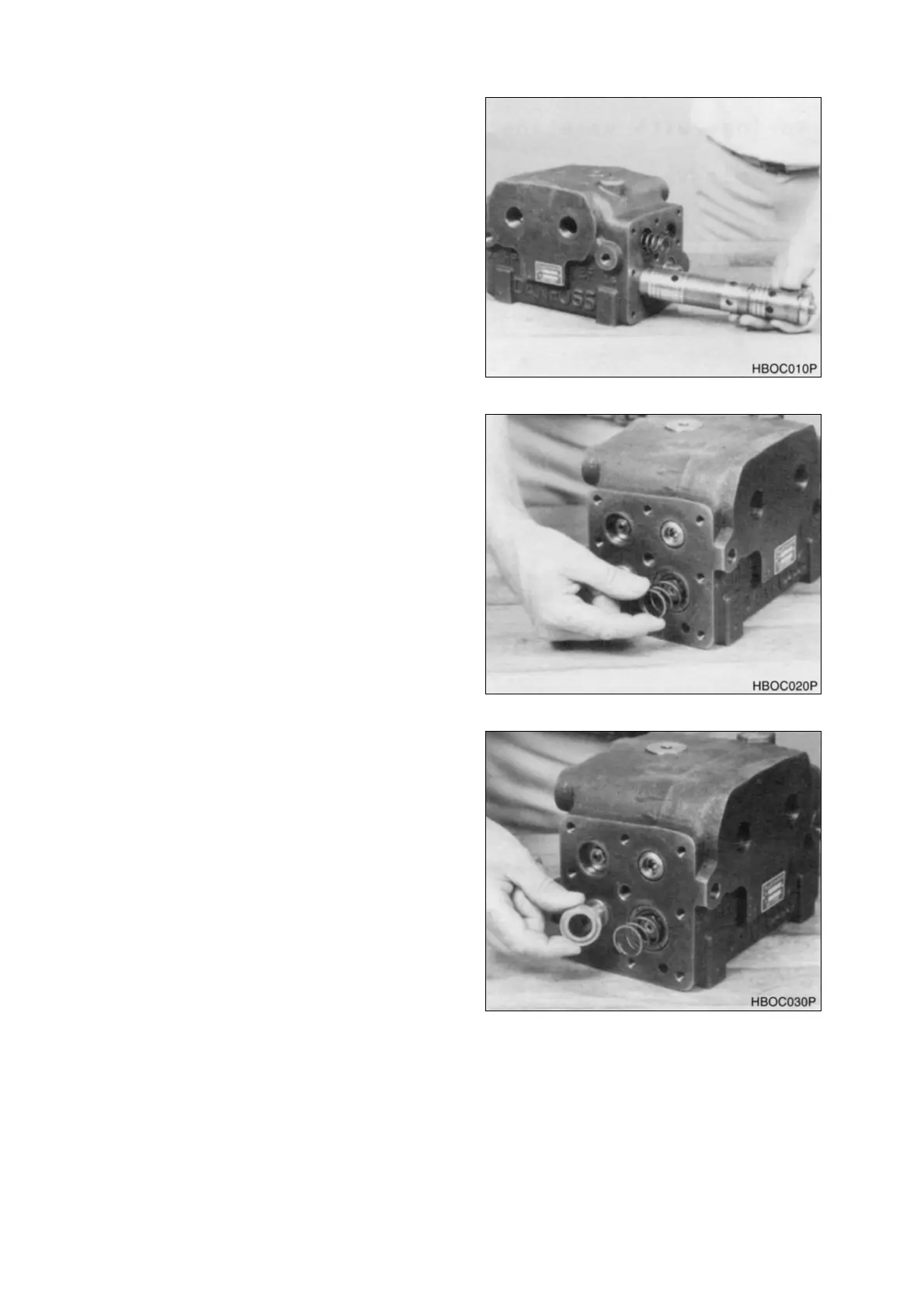

Figure 101
Figure 102
Figure 103
