Power Steering Unit
Return to Master Table of Contents
DISASSEMBLY
It is very important to keep the inside of the steering unit clean. Make sure that the outside of the steering
unit is clean before opening the unit. Use a wire brush and solvent to clean the entire unit.
1. Remove steering column from steering
unit. Bolt steering unit to stabilizing base.
Bolt base to work bench.
2. Remove bolts from steering unit end cover.
See Figure 10.
3. Remove end cover from unit. See Figure
11.
4. Lift cylinder gear off unit. See Figure 12.
Remove two O-rings.

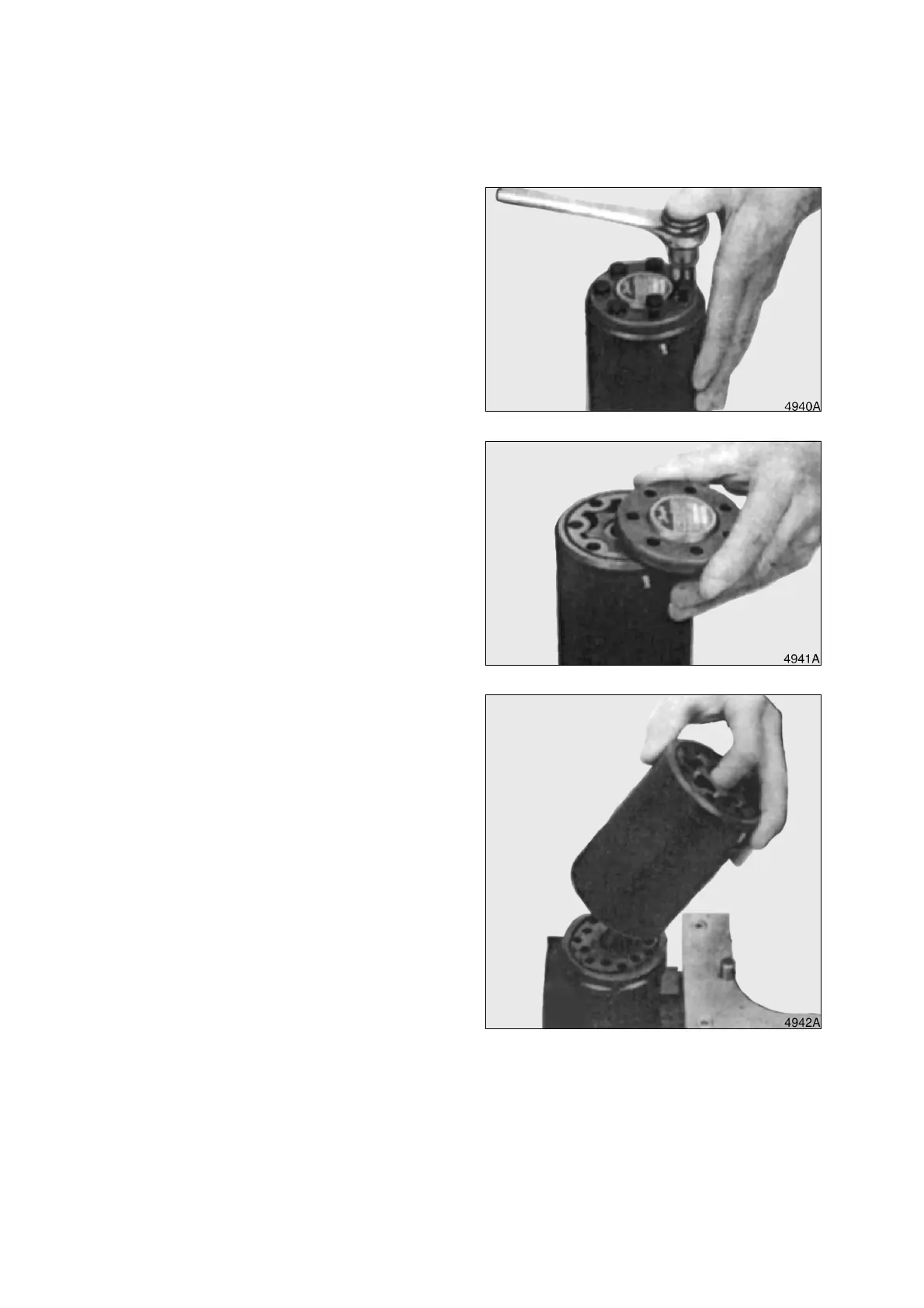

Figure 10
Figure 11
Figure 12
