S0709730K
Page 14
Power Steering Unit
Return to Master Table of Contents

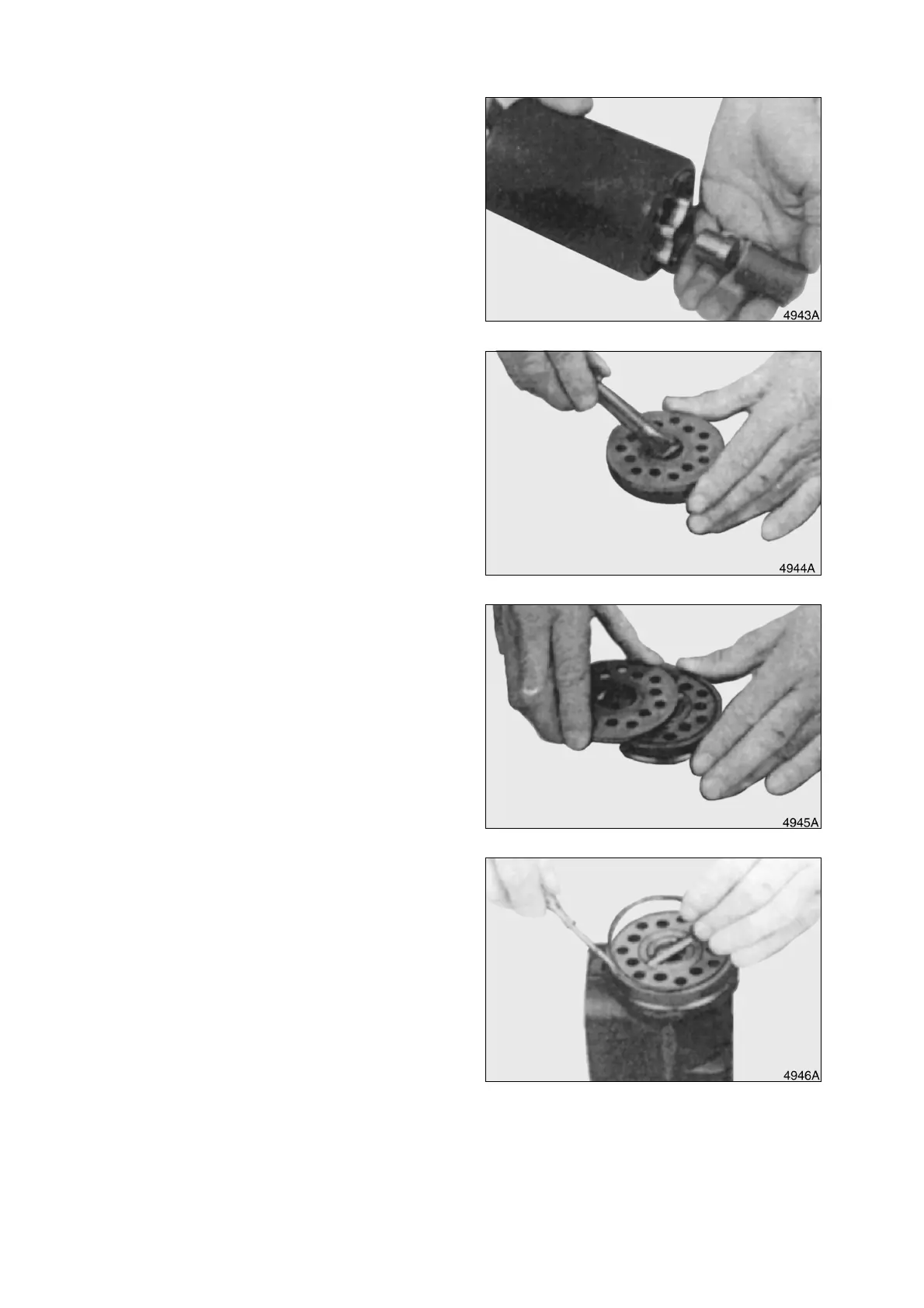

5. Remove spacer bushing and spacer from
cylinder gear (If equipped). See Figure 13.
NOTE:
Refer to parts manual for our
unit to determine if these parts
are installed.
6. Remove shaft from housing. See Figure
14.
7. Remove distributor plate from housing.
See Figure 15.
8. Remove O-ring from top of middle plate.
See Figure 16.
Figure 13
Figure 14
Figure 15
Figure 16
