Power Steering Unit
Return to Master Table of Contents
5. Install seal ring on sleeve. See Figure 34.
Burnish seal ring with a smooth object until
seal does not protrude past diameter of
sleeve.
6. Rotate seal ring. See Figure 35. It must
rotate freely without resistance.
7. Turn sleeve 180°. Install cross pin into
sleeve and spool. See Figure 36.

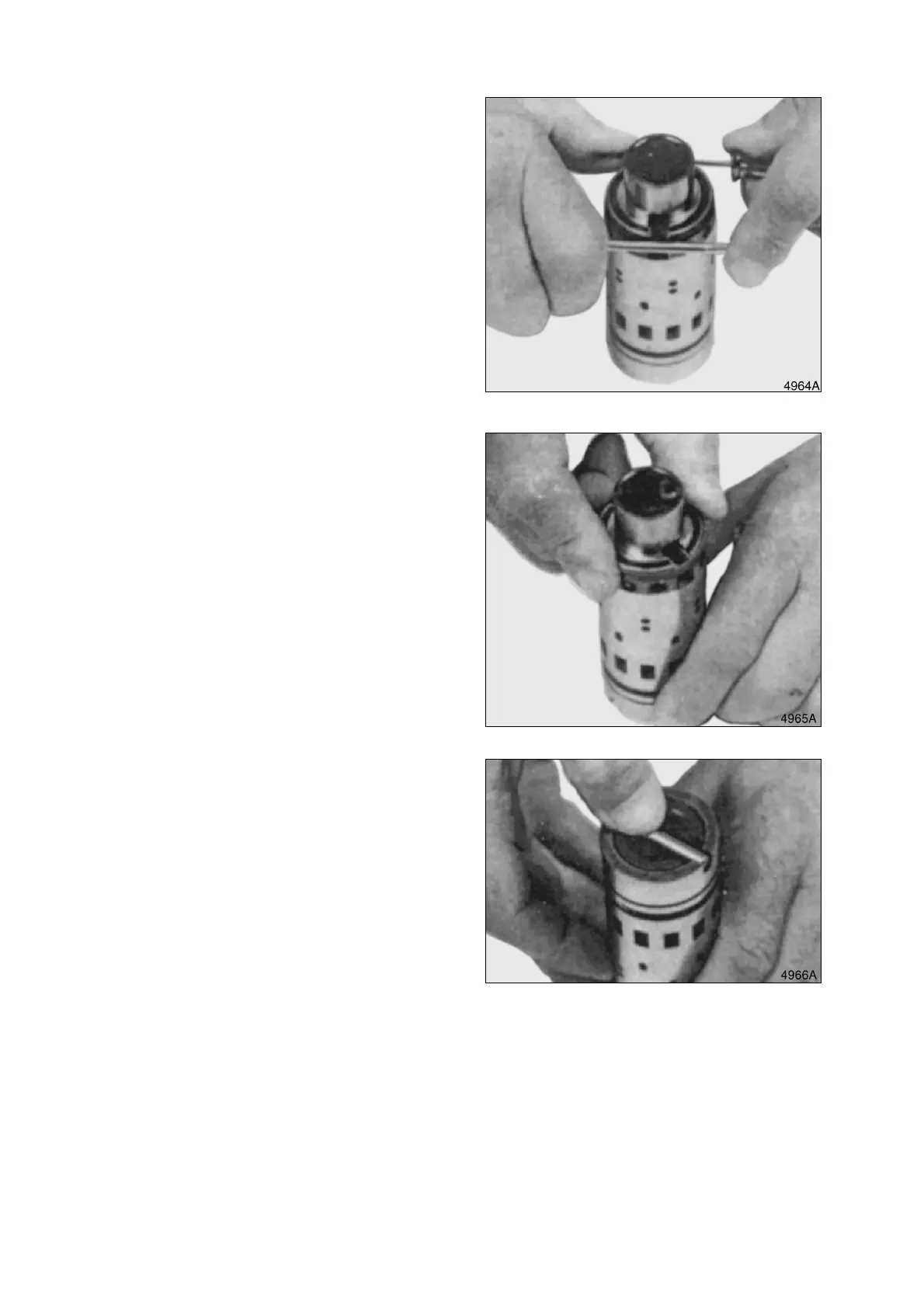

Figure 34
Figure 35
Figure 36
