Daewoo Mega 500-V - Page 629

S0709730K
Page 27
Power Steering Unit
Return to Master Table of Contents
26. Use a screwdriver to install OSPL 800 and
1000 spacers (If equipped.). See Figure
56.
NOTE: Refer to parts manual for our
unit to determine if these parts
are installed.
27. Install end cover. See Figure 57.
28. Install a washer and roll pin into hole
shown in Figure 58.
29. Install six remaining bolts and tighten
them. See Figure 59. Cross tighten bolts
and roll pin to 48.1 Nm (35 ft lb).

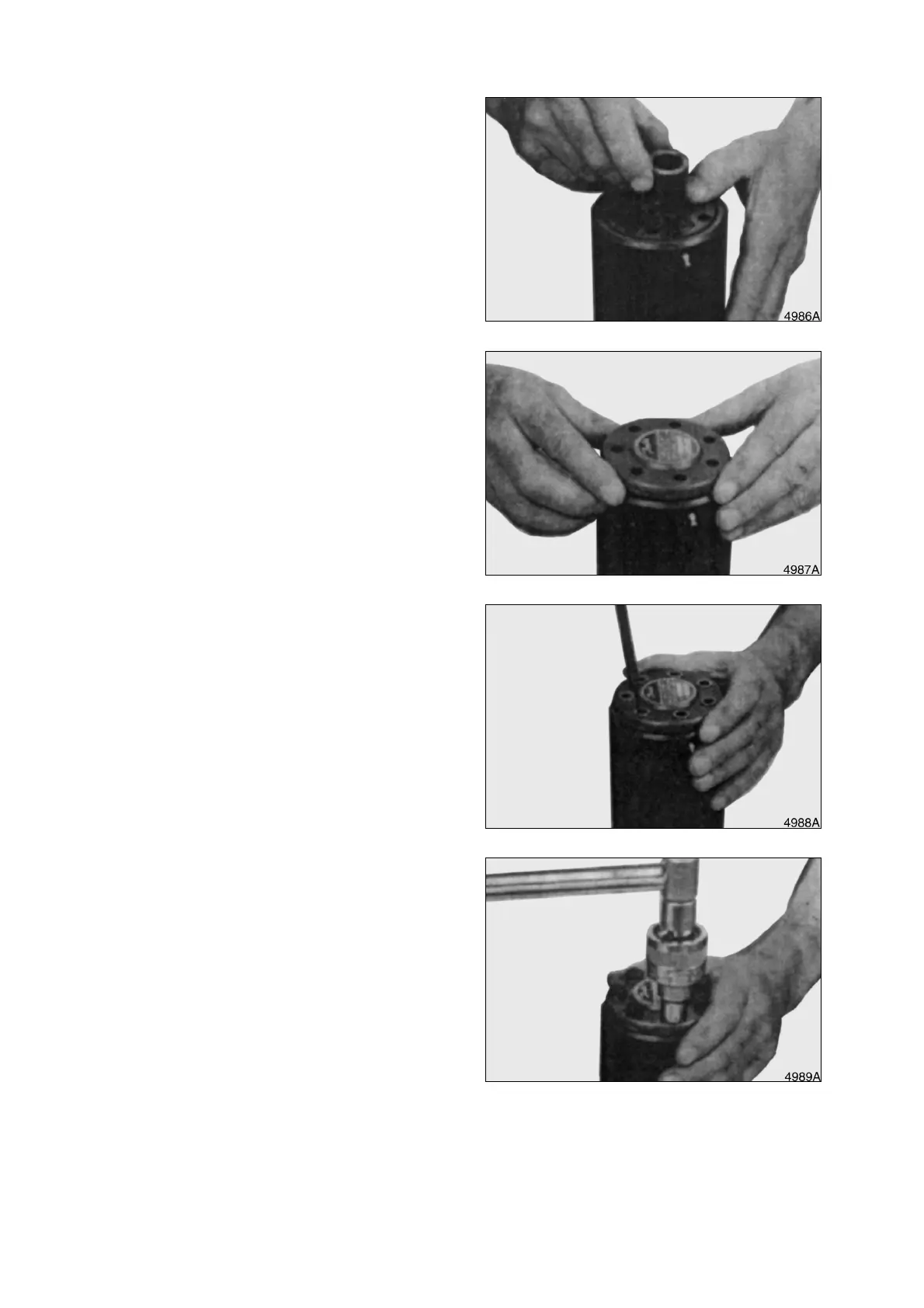

Figure 56
Figure 57
Figure 58
Figure 59
