Power Steering Unit
Return to Master Table of Contents
23. Lubricate two O-rings with 20 weight
mineral oil and install them in grooves of
cylinder gear. Slide cylinder gear into
position on housing. See Figure 53.
24. Use a bolt to align holes in cylinder gear
with bolt holes in housing. See Figure 54.
25. Install spacer bushing. See Figure 55.
Remove bolt that was installed in previous
step (If equipped.).
OSPL 630:1 = 3.80 mm (0.1496 in) (15,
Figure 5)
OSPL 800 (16, Figure 5)
OSPL 1000 (16, Figure 5)
NOTE:
Refer to parts manual for our
unit to determine if these parts
are installed.

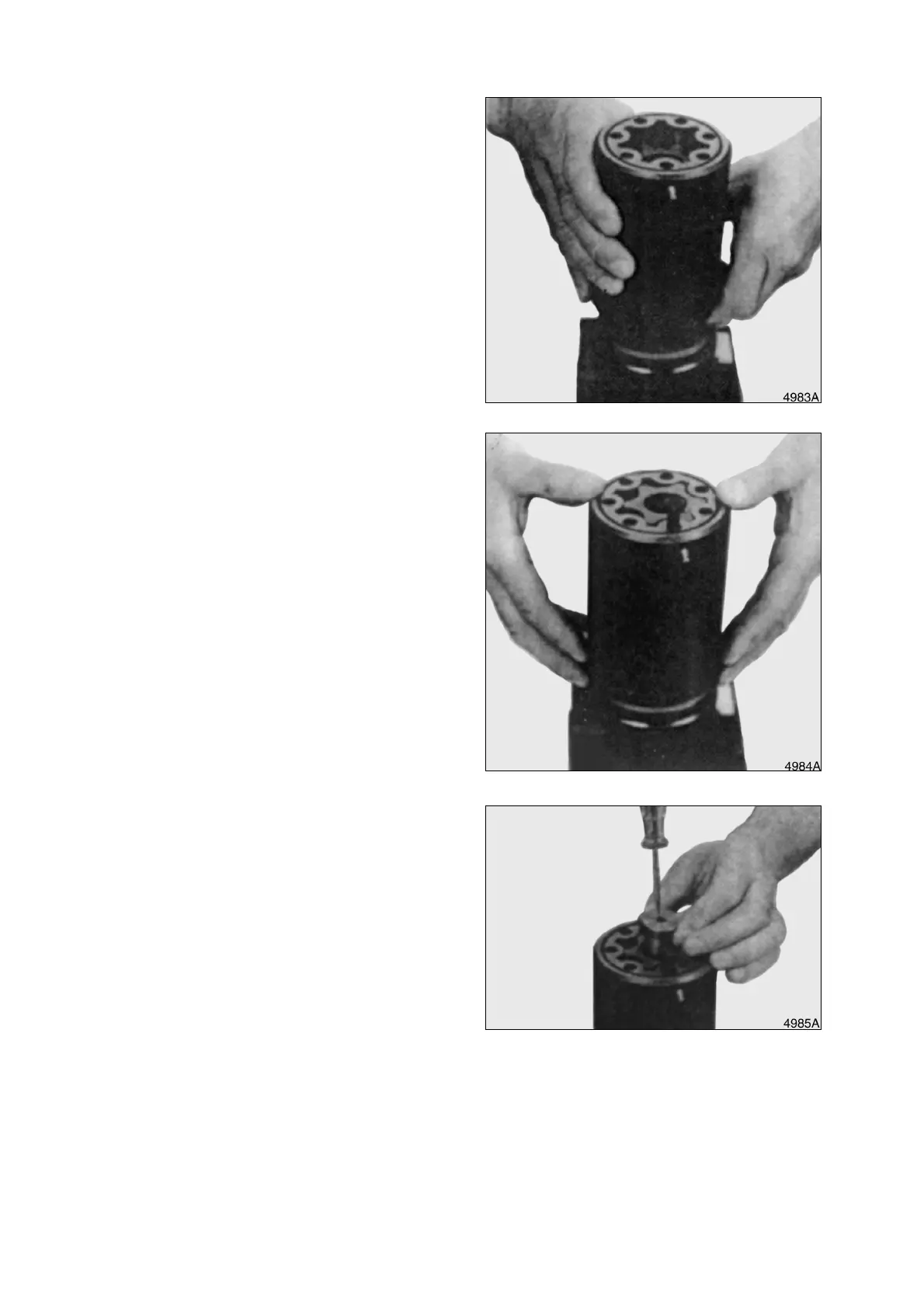

Figure 53
Figure 54
Figure 55
