Power Steering Unit
Return to Master Table of Contents

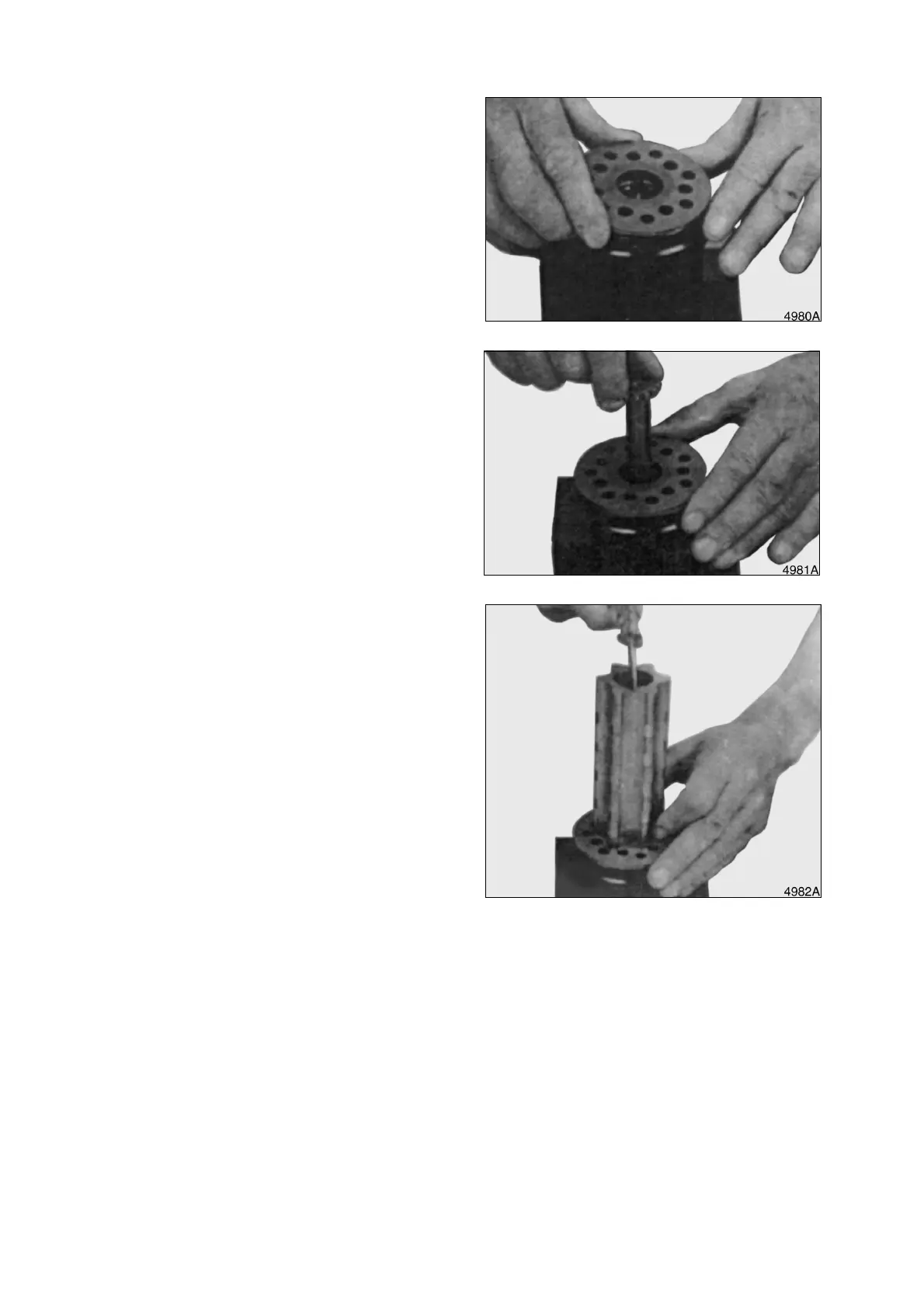

20. Install distributor plate. See Figure 50. Be
sure to properly align plate holes with
holes in middle plate.
21. Install shaft into bore of housing. See
Figure 51. Position slot in shaft to engage
cross pin.
22. Position rotor so that cross pin is between
two teeth as shown by position of
screwdriver. See Figure 52.
Figure 50
Figure 51
Figure 52
