Power Steering Unit
Return to Master Table of Contents
16. Install threaded bushing into hole that ball
was placed into. See Figure 46. Lightly
tighten bushing. The top of the bushing
must be lower than the surface of housing.
17. Lubricate O-ring with 20 weight mineral oil
and install it in groove. See Figure 47.
18. Install middle plate onto housing. See
Figure 48. Be sure to properly align plate
holes with holes in housing.
19. Lubricate O-ring with 20 weight mineral oil
and install it in groove. See Figure 49.

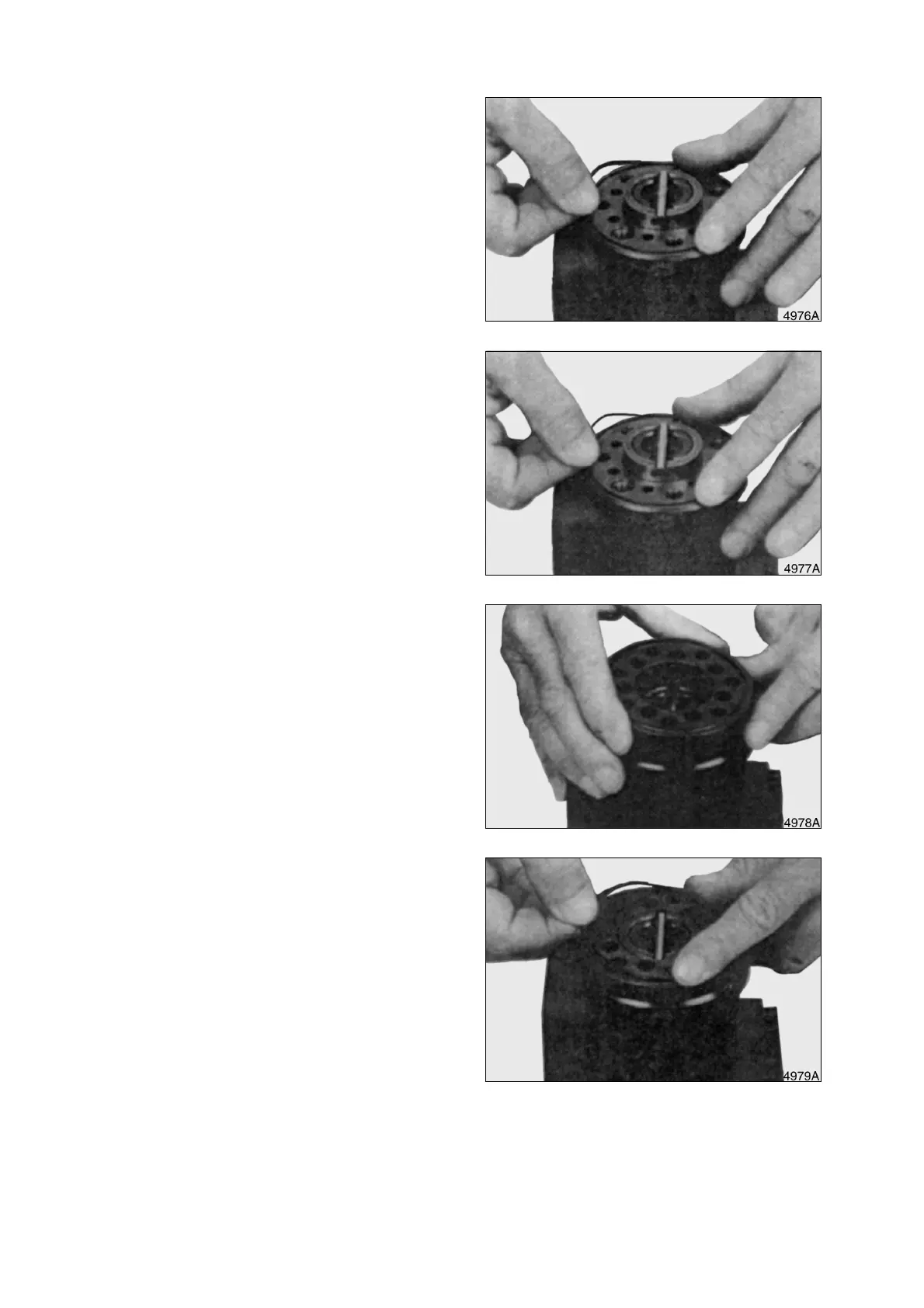

Figure 46
Figure 47
Figure 48
Figure 49
