Power Steering Unit
Return to Master Table of Contents
13. The sleeve will push the O-ring and
backup ring into correct position. See
Figure 43.
14. Bolt housing back into stabilizing base.
See Figure 44.
15. Insert ball into hole. See Figure 45.

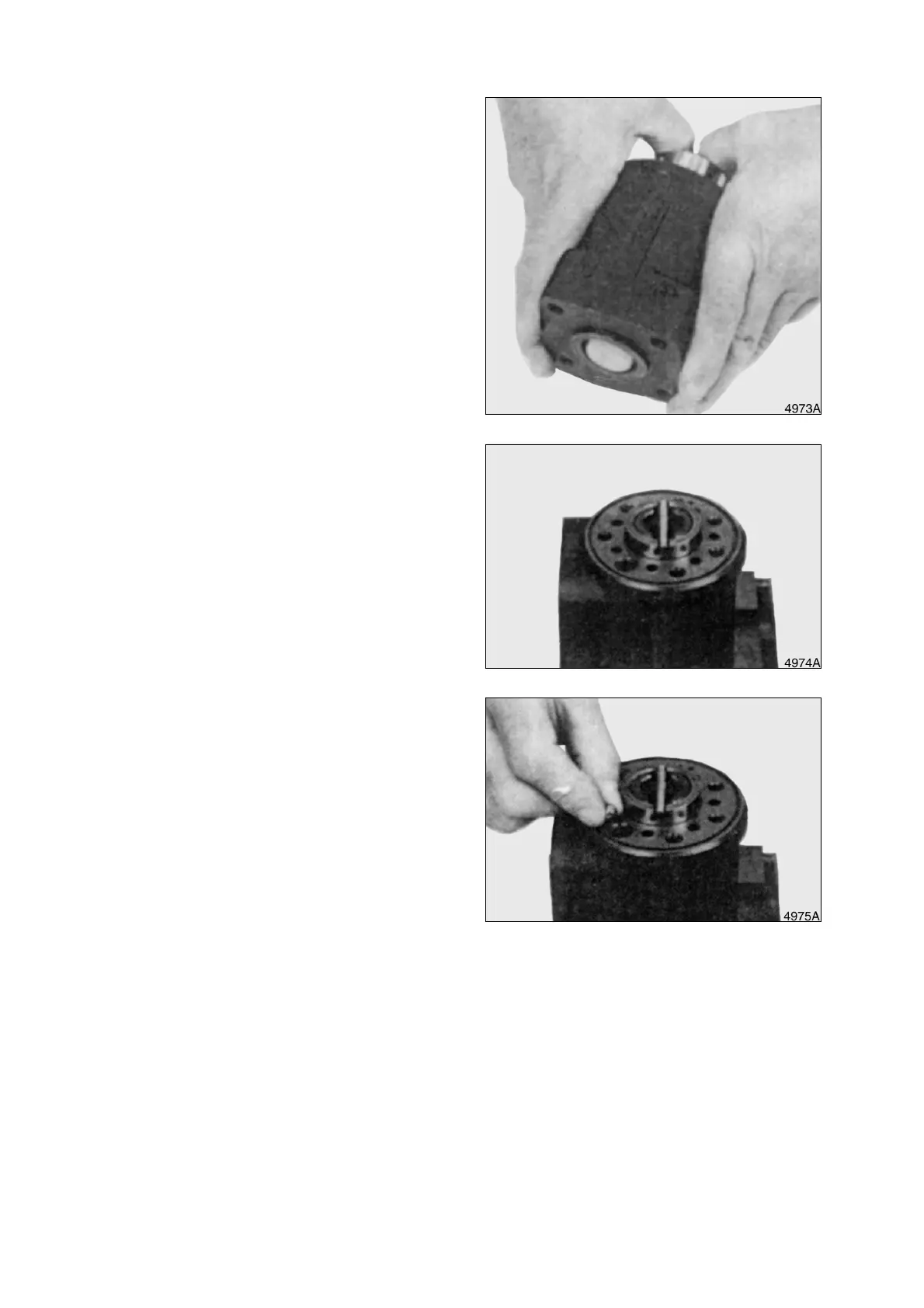

Figure 43
Figure 44
Figure 45
