S0709730K
Page 22
Power Steering Unit
Return to Master Table of Contents

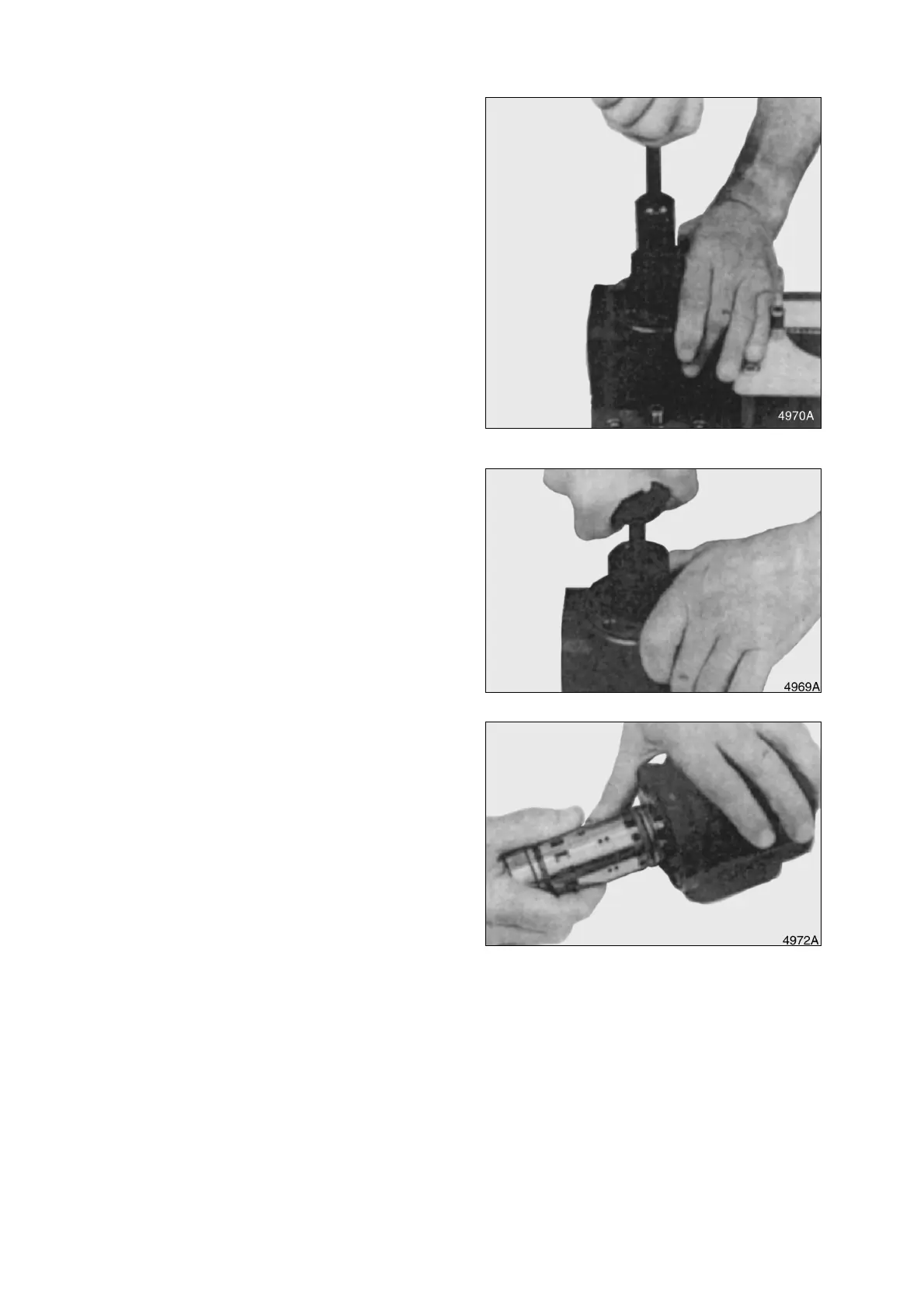

10. Insert assembly tool down into bore of
steering unit. See Figure 40.
11. Use assembly tool to install O-ring and
backup ring into bore. See Figure 41.
12. Unbolt housing from stabilizing base. Hold
housing in a horizontal position. See
Figure 42. Insert sleeve and spool into
bore.
Figure 40
Figure 41
Figure 42
