Barcode Configuration | Single Label

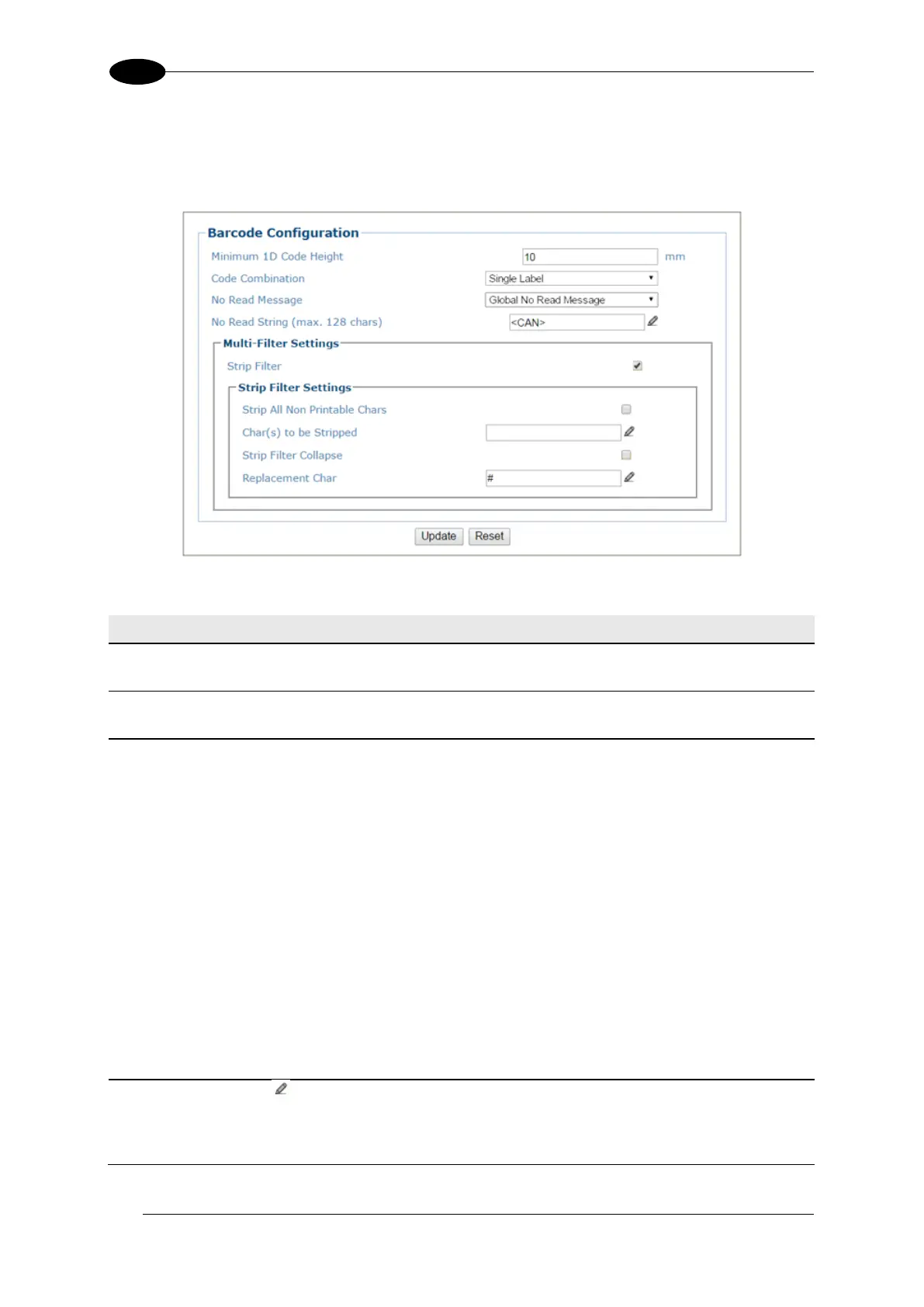

When Single Label has been selected from the Code Combination drop-down list, the

Barcode Configuration window reveals related input fields.

1. Enter the appropriate information in the form as described below:

Field Name

Action/Definition

Minimum

Code Height

Enter the Minimum Code Height in the field provided (mm [in]).

Code

Combination

Single Label has been selected.

No Read

Message

Select Disable No Read Message, Global No Read Message, or Local No

Read(s) Message from the drop-down list. The No Read condition occurs

whenever a code cannot be read or decoded.

 Disable No Read Message: The No Read Message is not transmitted.

 Global No Read Message: The No Read String will be sent if the

barcode reader is unable to decode one or more barcodes in the reading

phase. When multiple codes are enabled in the Barcode Settings Table,

and not all of the codes are read within a trigger cycle, a single Global No

Read message is transmitted to the host.

 Local No Read(s) Message: This option is used when Standard Multi

Label or Code Collection is selected. A Local No Read message is a

configurable No Read message associated with each individual code

enabled in the Barcode Settings Table.

No Read

String (max.

128 chars)

Click to activate the Text Entry Tool and create a string to be displayed

when Global No Read Message is selected from the No Read Message

drop-down list.
