Datalogic AV7000 Reference Manual

IMAGING FEATURES
217
5
Adjusting DM3610 Left Focus Offset
1. Place a box/spacer in the beam of the DM3610 with the LEFT side of the box aligned
with the Far Working Distance of the RIGHT camera based on the application drawing.
You must know the width of the box/spacer, and in this example, a 3 in [76.2 mm] spacer
is used.

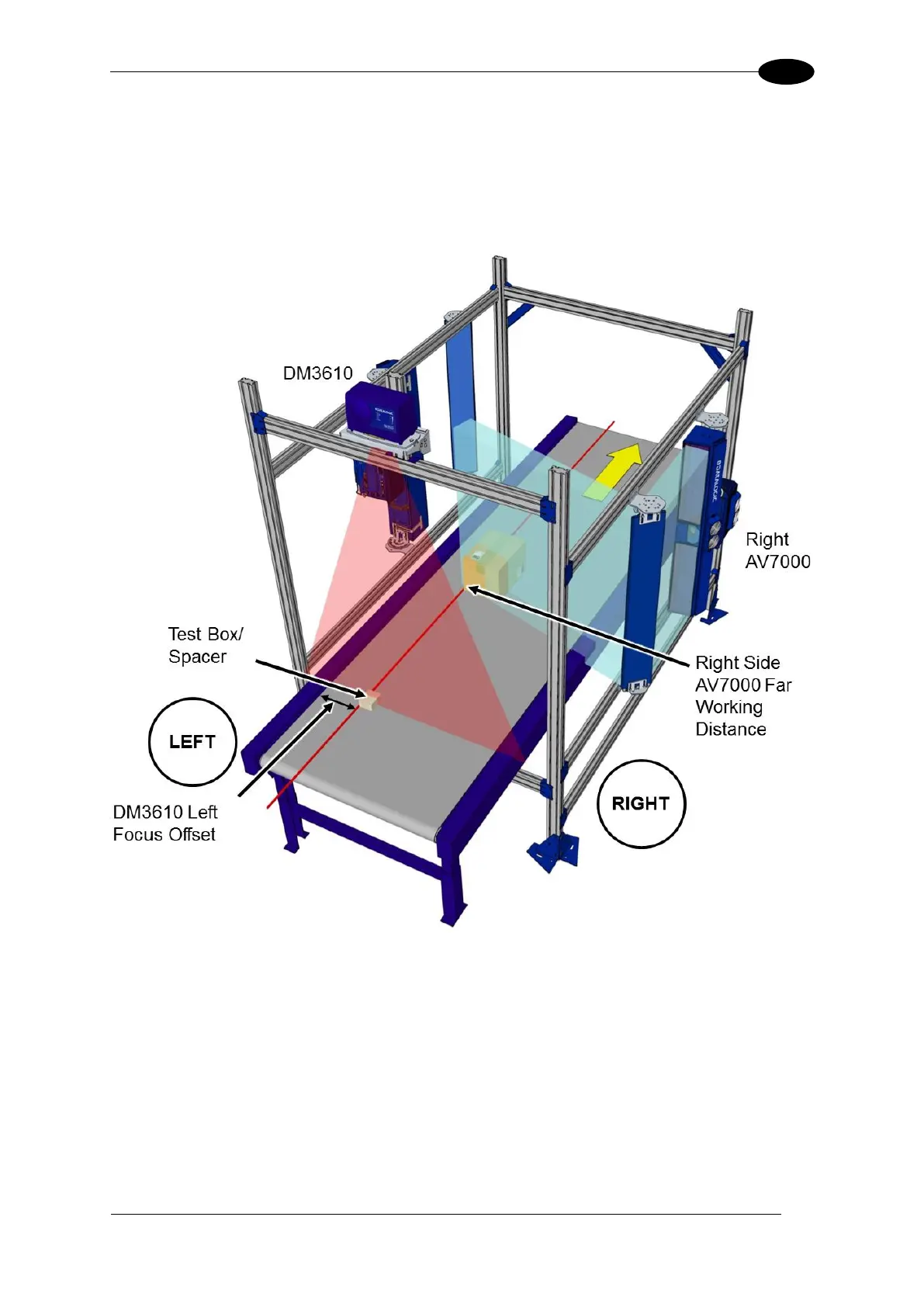

Figure 100: Left Focus Offset
2. Measure from the LEFT edge of the conveyor to the LEFT edge of the box/spacer. This
measurement becomes the Left Offset.
3. Enter that distance in negative ¼ inch [6.35 mm] increments into the Left Offset field. In
this example the distance is 9 inches [228.6 mm]. 9 x 4 (¼ in. increments) = 36, so -36 is
entered.
