5

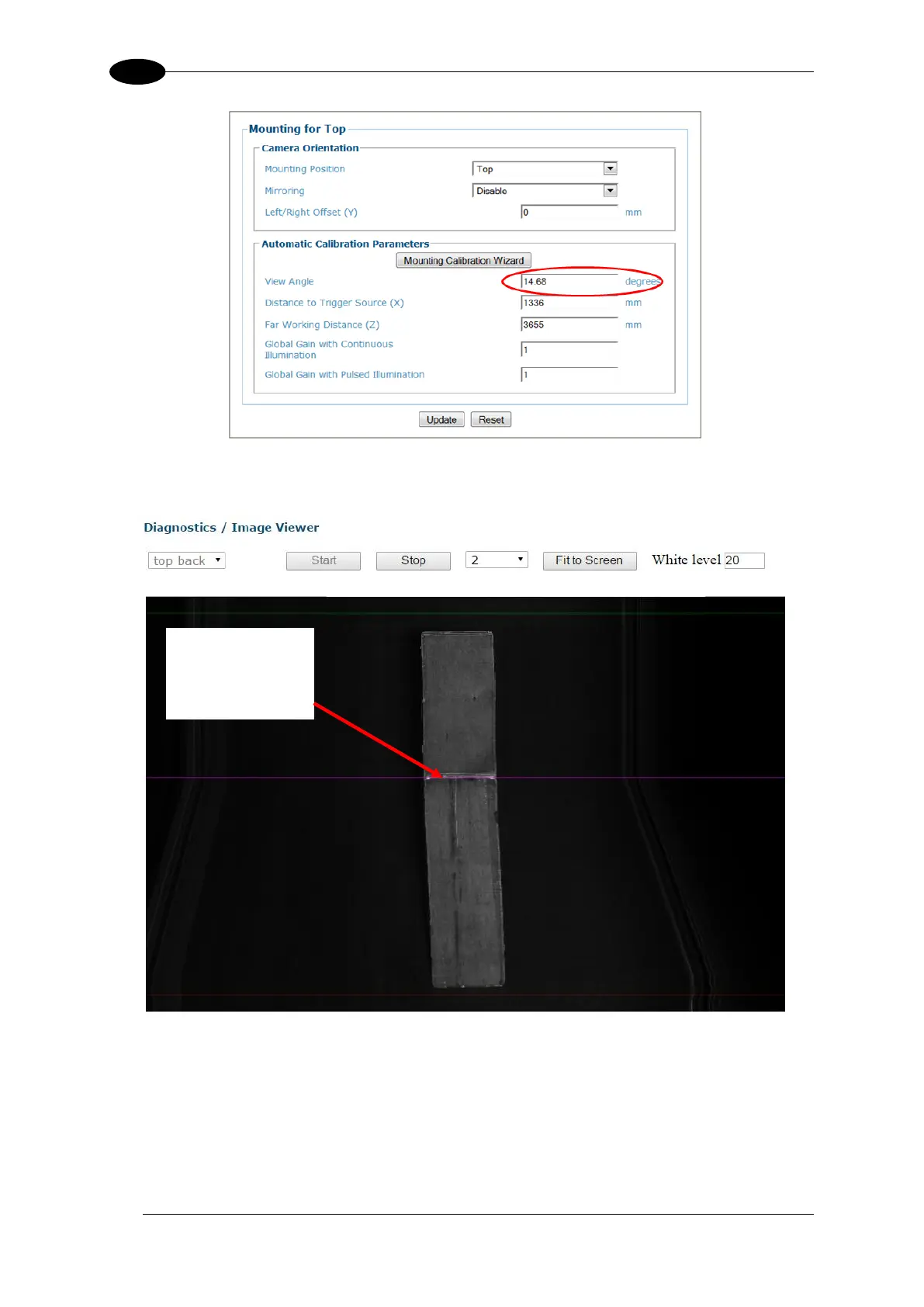

4. Incrementally modify the View Angle until the Focusing Data Transition Point aligns
with the corner of the box.
5. Re-run the small box and confirm the Distance to Trigger Source (X) setting. Make
adjustments as needed.
6. Re-run the tall box and confirm the View Angle setting. Repeat process until both the
tall (or near distance for side read) and small (farthest distance for side read) boxes
have the same Focusing Data Transition Point at the corner of the box.
0.
Box corner
and Focusing
Data Transition
Point align
