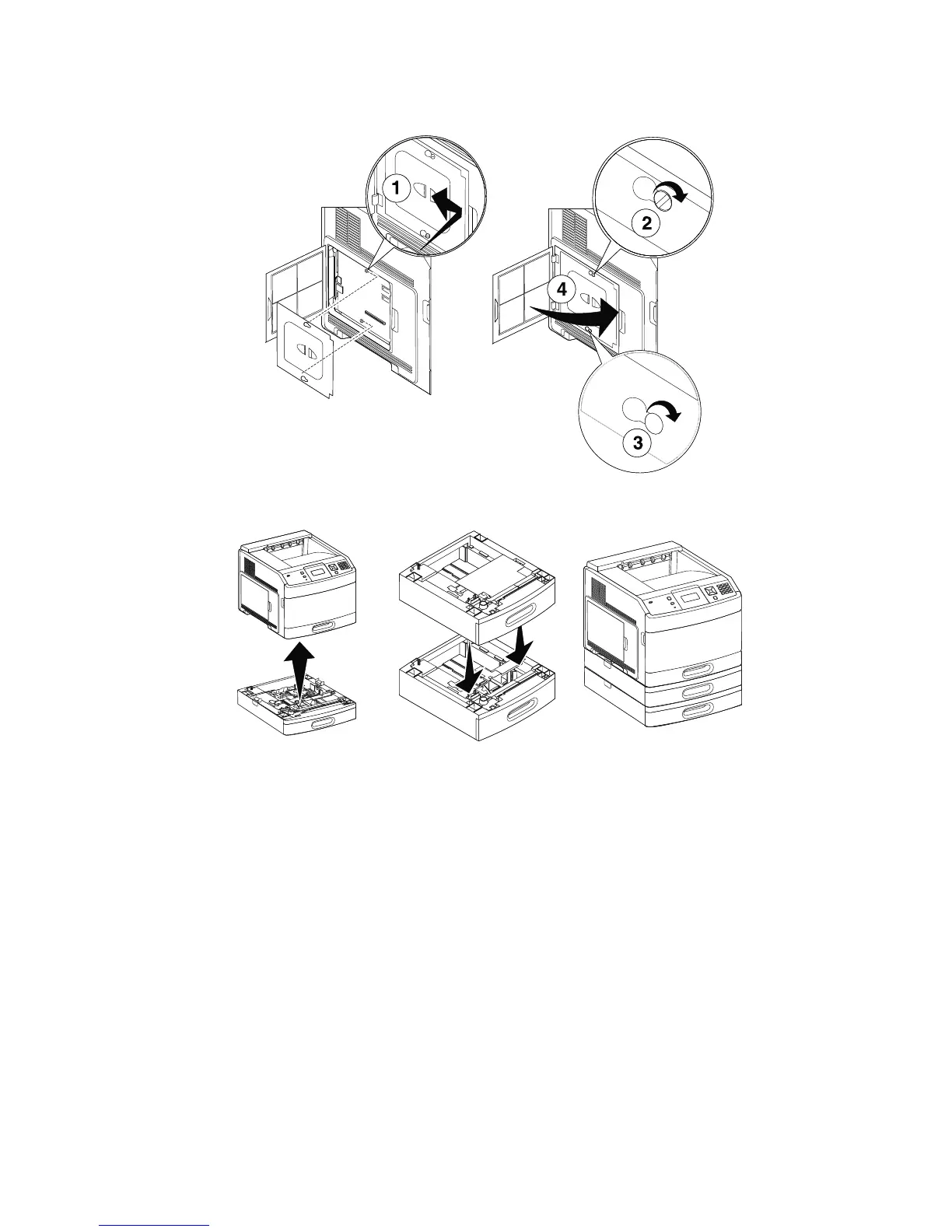

Repair Information 4-155

14. Replace the system board cover.

15. Lift the printer off the 250/550 sheet optional drawer, place the RFID option on top of the drawer, and place

the printer on top of the RFID option.
