4-156 Service Manual

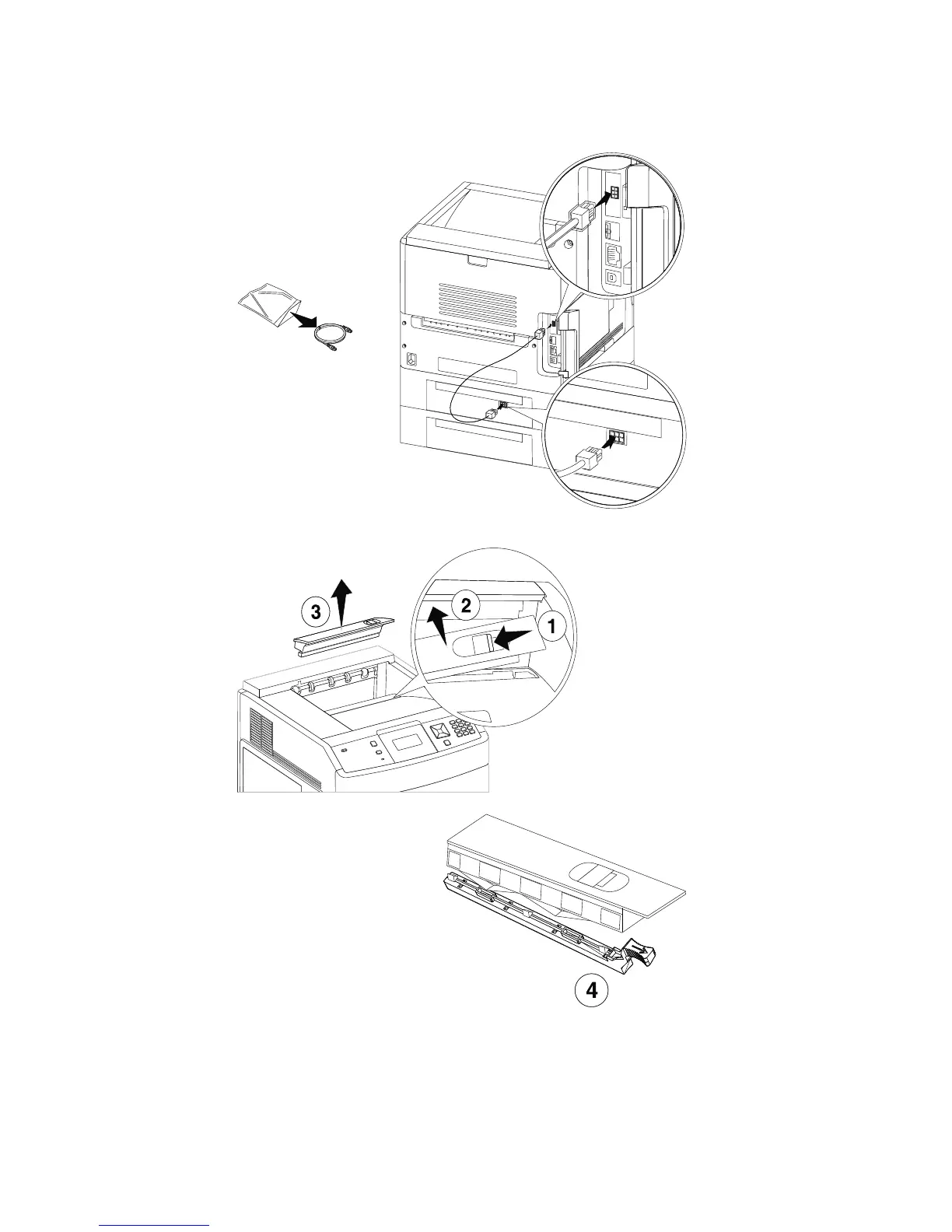

16. Unpack the RFID cable, and attach between the RFID option and the interface card. Reconnect all printer

cables.

17. Remove the old fuser wiper (or blank).
