16.10 Terminal Assignment
16.10.1 Power Supply Connection (ES801.1 and ES801.1-S)

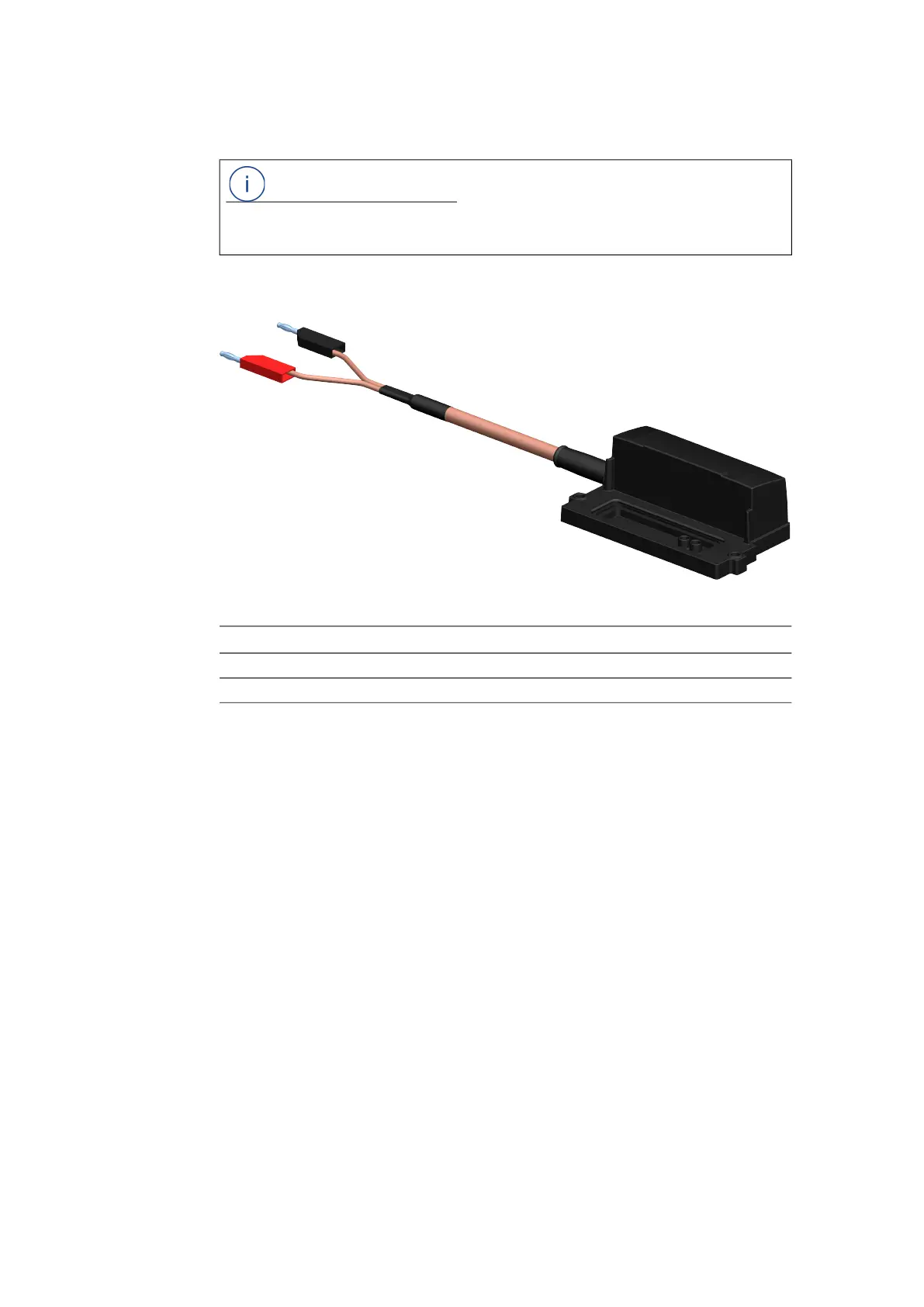

Fig. 16-2 Power supply connection (PWR, Base Module ES801.1 and ES801.1-S)
NOTE
All connections are shown with a view onto the interfaces of the modules.
All shields are on housing potential.
Plug Signal Meaning
Red UBATT+ Supply voltage, positive
Black UBATT- Supply voltage, ground
