133 | Applications
ETAS ES800 System | User Guide
14.5 Cabling for Rapid Prototyping Applications

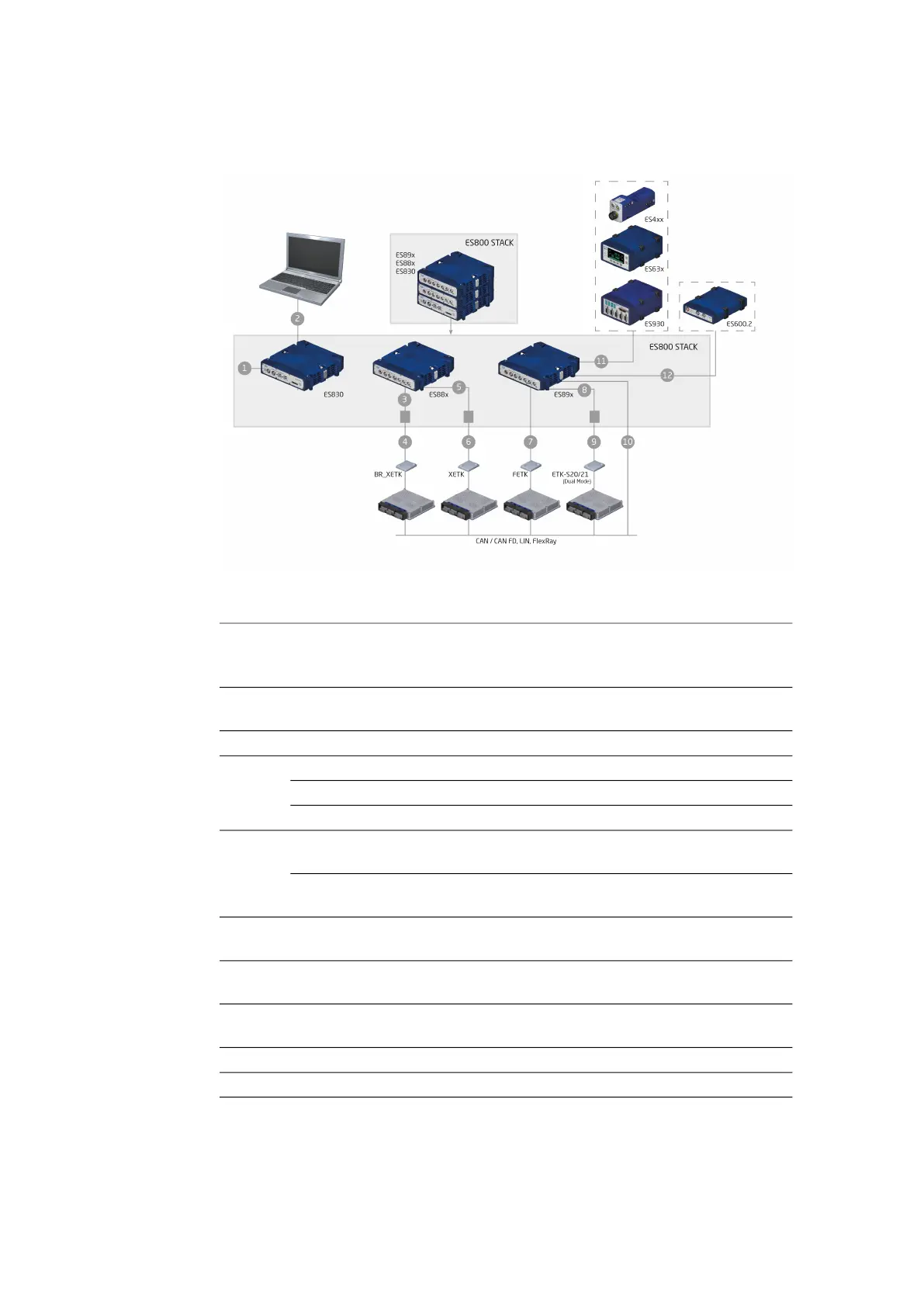

Fig. 14-2 Cabling the ES800 system for Rapid Prototyping applications
Cables
in
Fig. 14-1
Function Short
name
1 Power supply via an ES800 Base Module (ES801.1 or
ES801.1-S for the module stack
ES801.1/
ES801.1-S
2 Gigabit Ethernet PC connecting cable CBE250
3 Automotive Ethernet Splitter Cable (at ES88x) CBEB240
Automotive Ethernet Splitter Cable (at ES88x) CBEB242
Automotive Ethernet Splitter Cable (at ES88x) CBEB245
4 Automotive Ethernet Interface Cable for ES88x (con-
nected to CBEB240)
CBEB125
Automotive Ethernet Interface Cable for ES88x (con-
nected to CBEB242)
CBEB120
5 Fast Ethernet ES89x/XETK connection (connected to
CBAE330)
CBE230
6 Adapter cable for connecting an XETK (connected to
CBE230)
CBAE330
7 Gigabit Ethernet ES89x/FETK connecting cable and ES89x
power cord
CBE260
8 ETK adapter cable CBAE360
9 ETK cable CBM150
