ETAS ES800 System | User Guide
Temperature range: -40°C to +125°C/-40°F to +257°F
17.4.11 Cable CBEP430.1

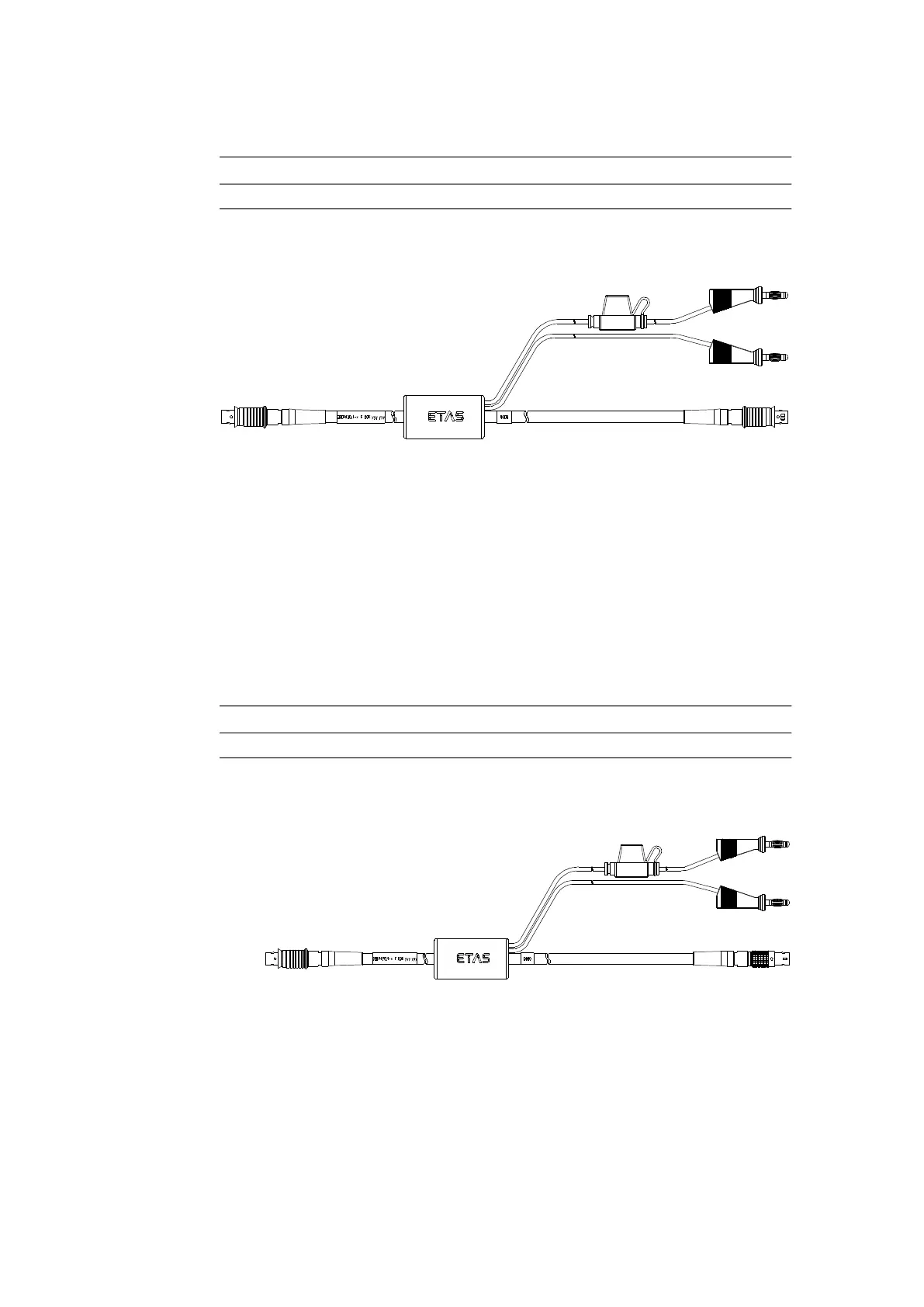

Fig.
17-12 Cable CBEP430.1
For interconnecting ES4xx/ES63x/ES93x modules and for connecting an ES4xx/
ES63x/ES93x chain to an ES910.3 rapid prototyping module. Additional connection
to the power supply to compensate voltages losses in long chains.
Incompatible with ES59x, ES6xx and ES11xx. To connect this modules, use cable
CBE130 or CBE140.
A replaceable fuse is located in the cable (MINI car blade-type fuse, fast, 3 A, 58 V).
Robust, water-proof and dust-proof (IP67).
Temperature range: -40°C to +125°C/-40°F to +257°F
17.4.12 Cable CBEP450.1
Fig. 17-13 Cable CBEP450.1
Ethernet and voltage supply connection of an ES4xx/ES63x/ES93x chain to an
ES710/ES715 drive recorder.
A replaceable fuse is located in the cable (MINI car blade-type fuse, fast, 3 A, 58 V).
Robust, water-proof and dust-proof (IP67).
Product Length Order number
CBEP425.1-3 3 m F 00K 105 972
Product Length Order number
CBEP430.1-0m5 0.5 m F 00K 104 928
