ETAS ES800 - Fetk;Gigabit Ethernet Connection (FETK;GE); Fig. 16-6 Fetk;Gigabit Ethernet Connection (FETK;GE)

170 |
ETAS ES800 System | User Guide
16.10.5 FETK/Gigabit Ethernet Connection (FETK/GE)

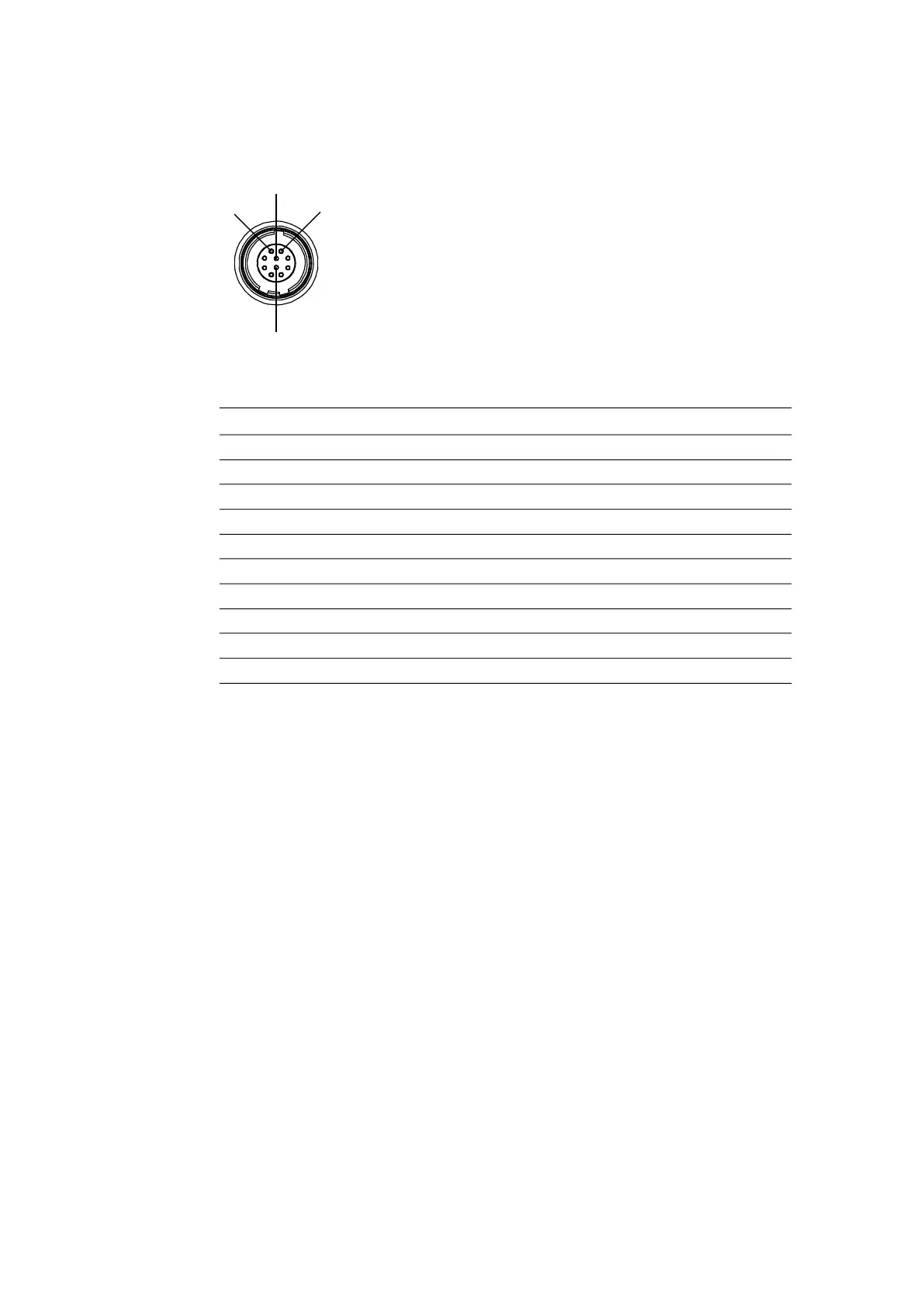

Fig. 16-6 FETK/Gigabit Ethernet connection (FETK/GE)
Pin Signal Meaning
1 BI_DA+
2 BI_DC-
3 BI_DC+
4 BI_DB-
5 BI_DB+
6 BI_DD-
7 BI_DD+
8 BI_DA-
9 UBATT+ Supply voltage, positive
10 UBATT- Supply voltage, negative
8
1
10
9
