58 | ES882.x ECU and Bus Interface Module
ETAS ES800 System | User Guide
• Slave operating mode (monitoring)
- Electrical isolation of the channels from each other, from device ground and
from the supply voltage
Complete technical data for the ES882.x module can be found in the chapter
“Technical Data” on page 140.
7.3 Connections
The front side of the ES882.x module features the following connections:

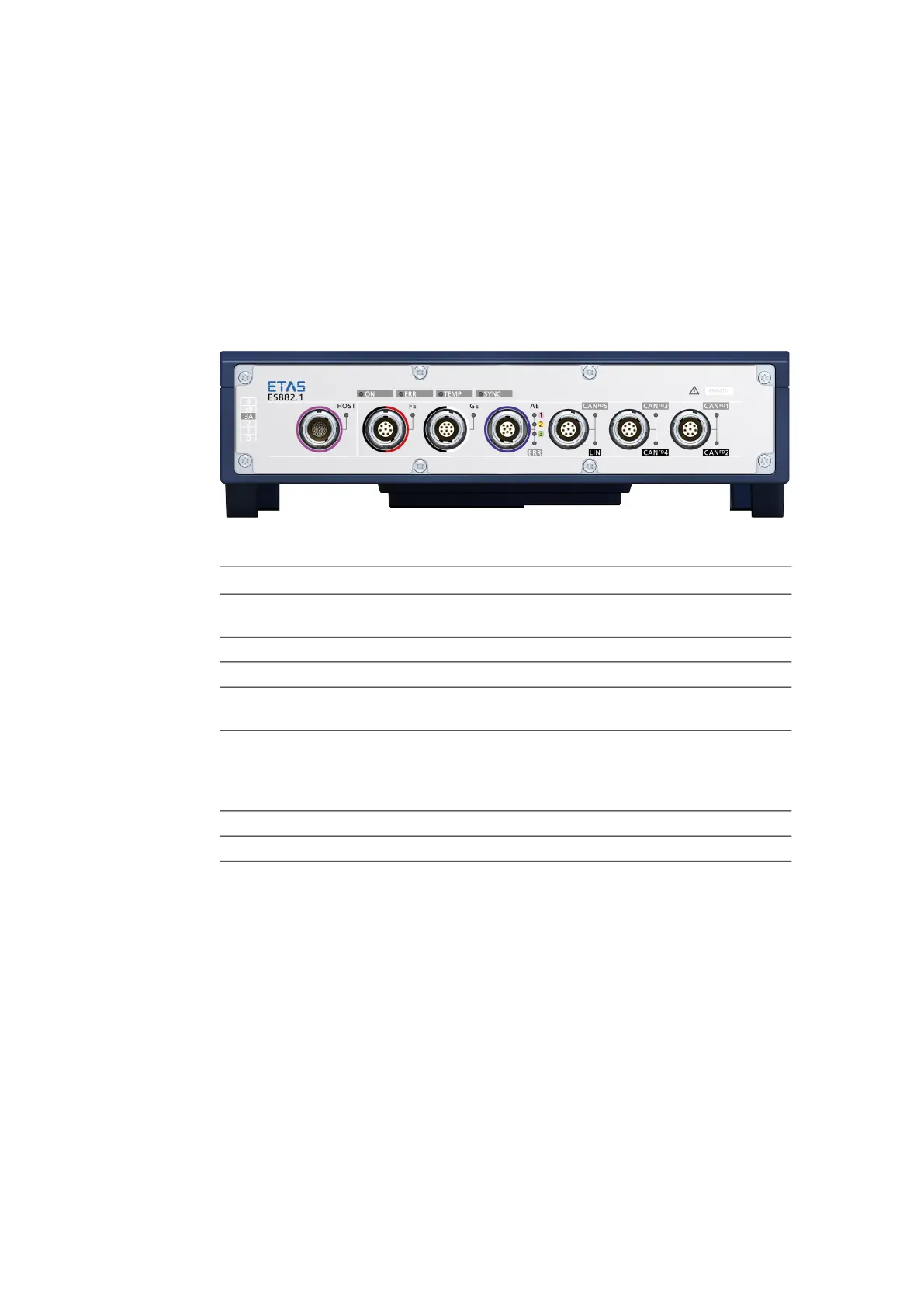

Fig. 7-2 ES882.x Front Side
Information on combining modules of the ES800 system with ETAS modules from
other series can be found in chapter
3.7 on page 27.
Name Interface For description see
HOST 1 x Gigabit Ethernet
(HOST)
Chapter 12.1 on page 89
FE 1 x Fast Ethernet Chapter 12.2 on page 90
GE 1 x Gigabit Ethernet Chapter 12.4 on page 92
AE 3 x 100BASE-T1
Automotive Ethernet
Chapter 12.5 on page 94
CAN5 / LIN 1 x CAN FD and 1 x LIN Chapter
12.7 on page 102
and
12.8 on page 105
CAN3 / CAN4 2 x CAN FD Chapter 12.7 on page 102
CAN1 / CAN2 2 x CAN FD Chapter 12.7 on page 102
