5.5.4 Changing between Operating States

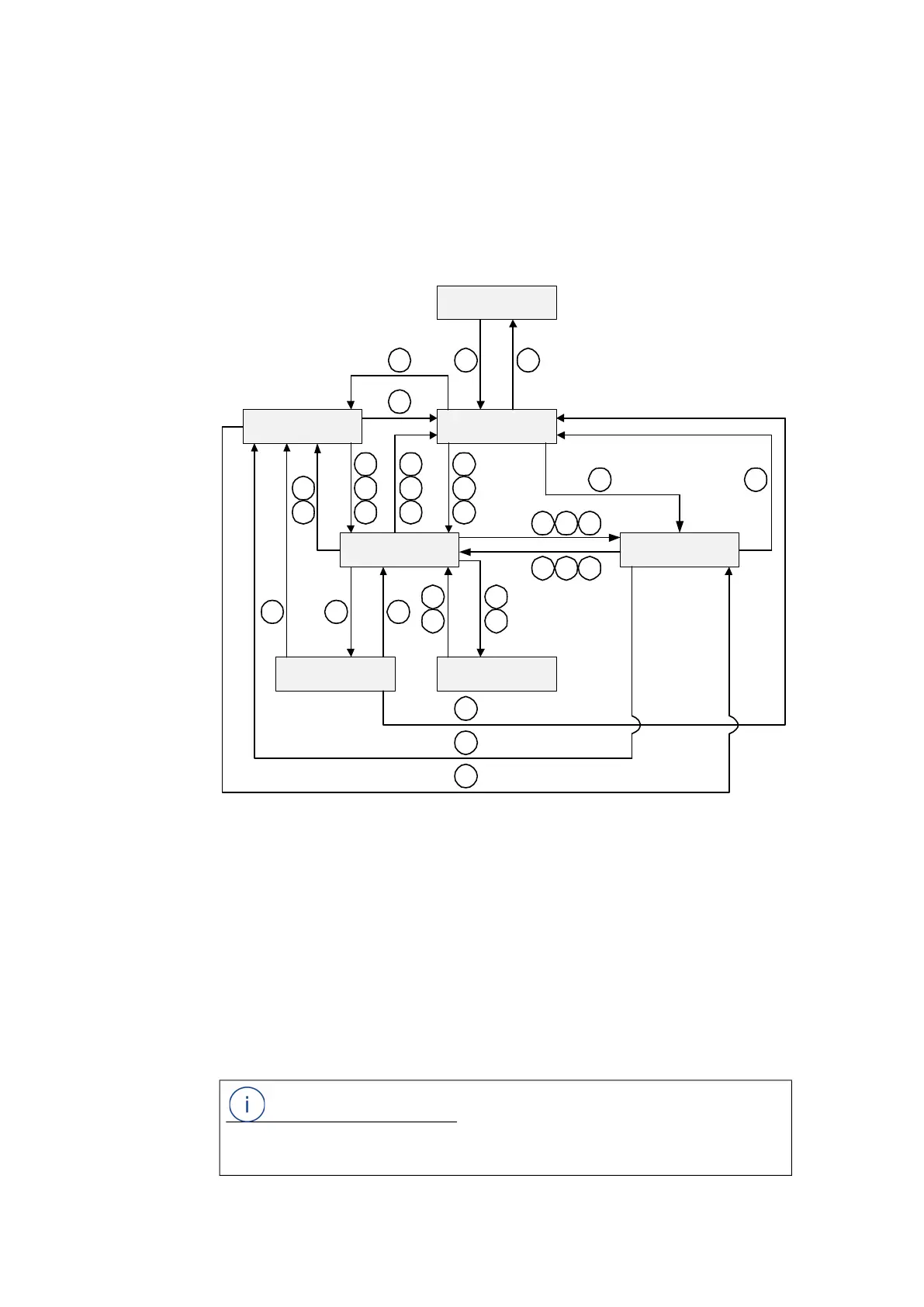

State Diagram
The change between the operating states of the ES820.1 can be depicted in a
state diagram (see Fig. 5-5 on page 41).
Fig. 5-5 Changing between operating states (simplified)
The numbers in the state diagram correspond to the number of operating state
changes that can be performed by the ES820.1, triggered by events (triggers or
timers) of the "Wake-Up" and "Sleep" functions (see chapter
11.4 on page 80).
5.5.5 Events
The ES820.1 is triggered to change between operating states by events. These
events can be activated, deactivated and combined with timers in order to delay
the event in the configuration software. The changes between operating state
shown in
Fig. 5-5 on page 41 are each linked to a selection of the events and timers
listed here.
NOTE
Further information can be found in the "Drive Recorder Configurator Tutorial"
document, which is available in the ETAS Download Center.
LowPowerStandbyFastBootStandby
PassiveOn
ReconfigurationMeasurement
Off
1
5
5
8
10
1112
13
16
13
178
2
3
4
2
3
4
7*
9*
6*
7*
9*
2 3 4
15
14
14
15
ActiveOn
6 7 9
