11.1.4 Display of the Measuring State (ES820.1 only)
The front side of the ES820.1 features two LEDs for indicating the measuring state
of the module:
- MEM: Status of the memory module and memory access
- MEAS: Status of the measurement
"MEM" LED

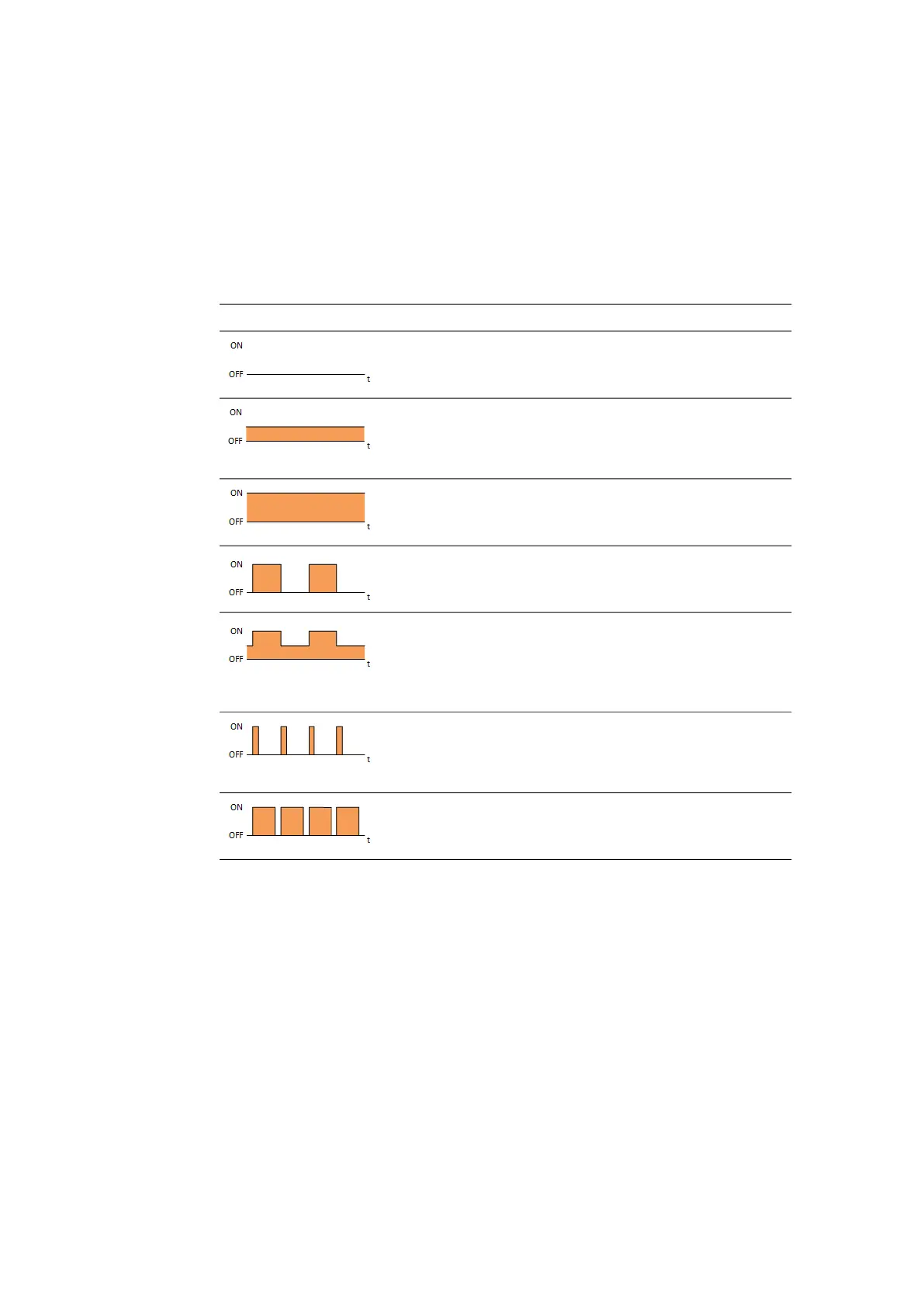

MEM LED Description State
Off No write access to the memory module,
memory capacity sufficient
Orange, reduced No write access to the memory module,
warning threshold for memory capacity
reached, a small amount of memory
capacity still available
Illuminated
orange
No write access to the memory module,
memory capacity full. No further data
can be recorded.
Flashing orange,
0.5 s on/0.5 s off
Write access to the memory module
Flashing orange,
reduced,
0.5 s on/0.5 s off
Write access to the memory module,
warning threshold for memory capacity
reached, a small amount of memory
capacity still available, limited recording
time
Flashing orange,
0.1 s on/0.4 s off
Memory module being prepared for
removal,
pending measured data being written to
the memory module
Flashing orange,
0.4 s on/0.1 s off
Memory module can be removed
