ETAS ES800 System | User Guide
Assignment of the Automotive Ethernet Signal to the DSUB9 Con-
nectors

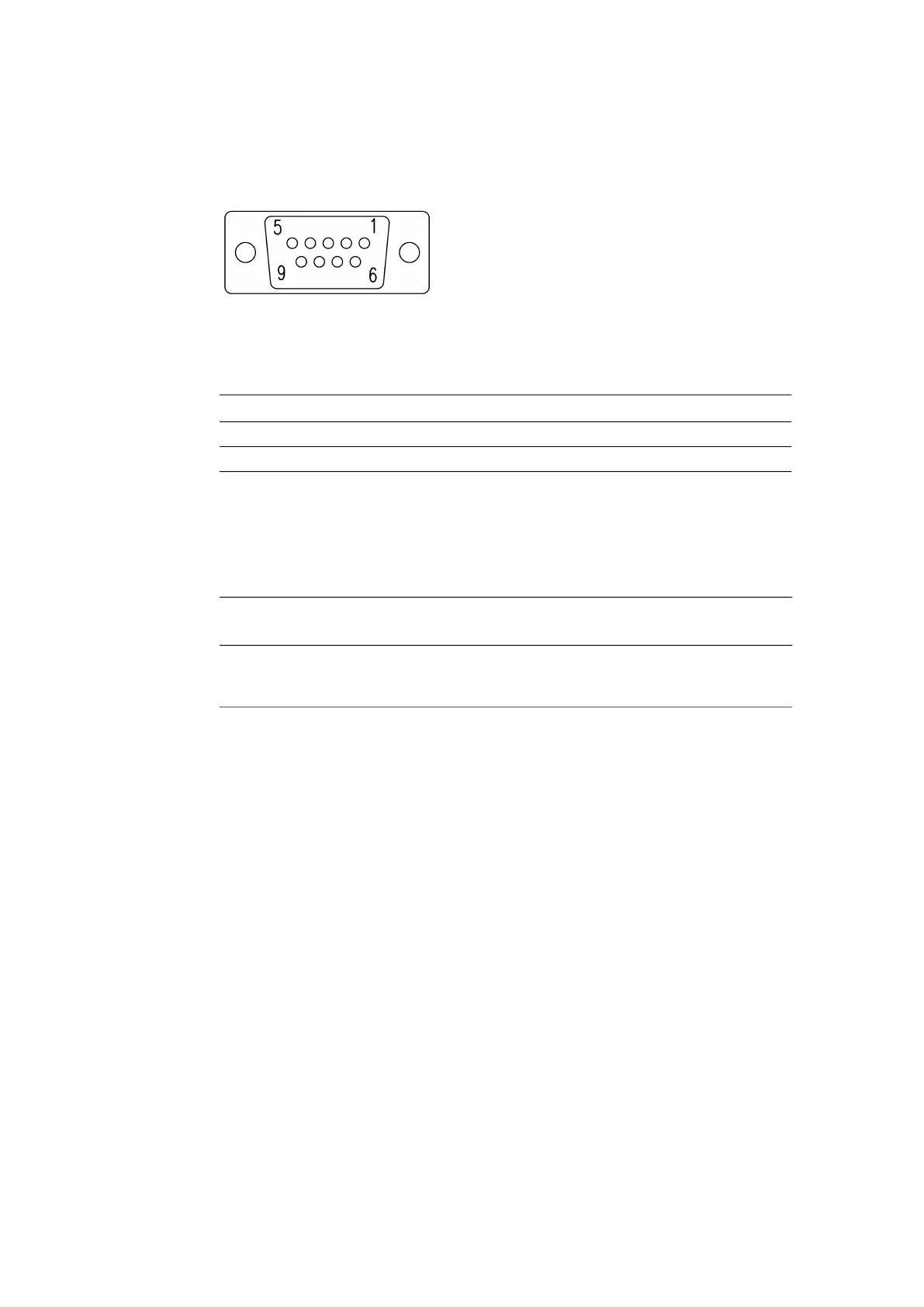

Fig. 17-23 "AE" connection (one cable section)
The assignment of the connections of the DSUB9 connector of a cable section to
the signals of an Automotive Ethernet channel [N] is represented in the table.
Temperature Range
-40 °C to +85 °C/ -40 °F to +185 °F
Order Information
Pin Signal Meaning
4 AE [n]+ Automotive Ethernet, channel [n], BI_DA+
5 AE [n]- Automotive Ethernet, channel [n], BI_DA-
Order name Short name Order
number
Automotive Ethernet Splitter cable 100 Mbit/s,
Yamaichi YCP - 4x DSUB PHA B (8mc - 4x 9fc),
0m4
CBEB242.1-0m4 F 00K 111 123
