64 | ES891.x ECU and Bus Interface Module
ETAS ES800 System | User Guide
9 ES891.x ECU and Bus Interface Module
ES891.1 and ES891.2 are named in this document ES891.x. Only if there are differ
-
ences, then they are named ES891.1 or ES891.2.
The only difference between the ES891.1 and ES891.2 is regarding the CAN-func-
tionality. See chapter “CAN Interface (CAN)” on page 160..
This chapter contains information about the following topics:
• Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
• Properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
• Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
• Function Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
9.1 Overview

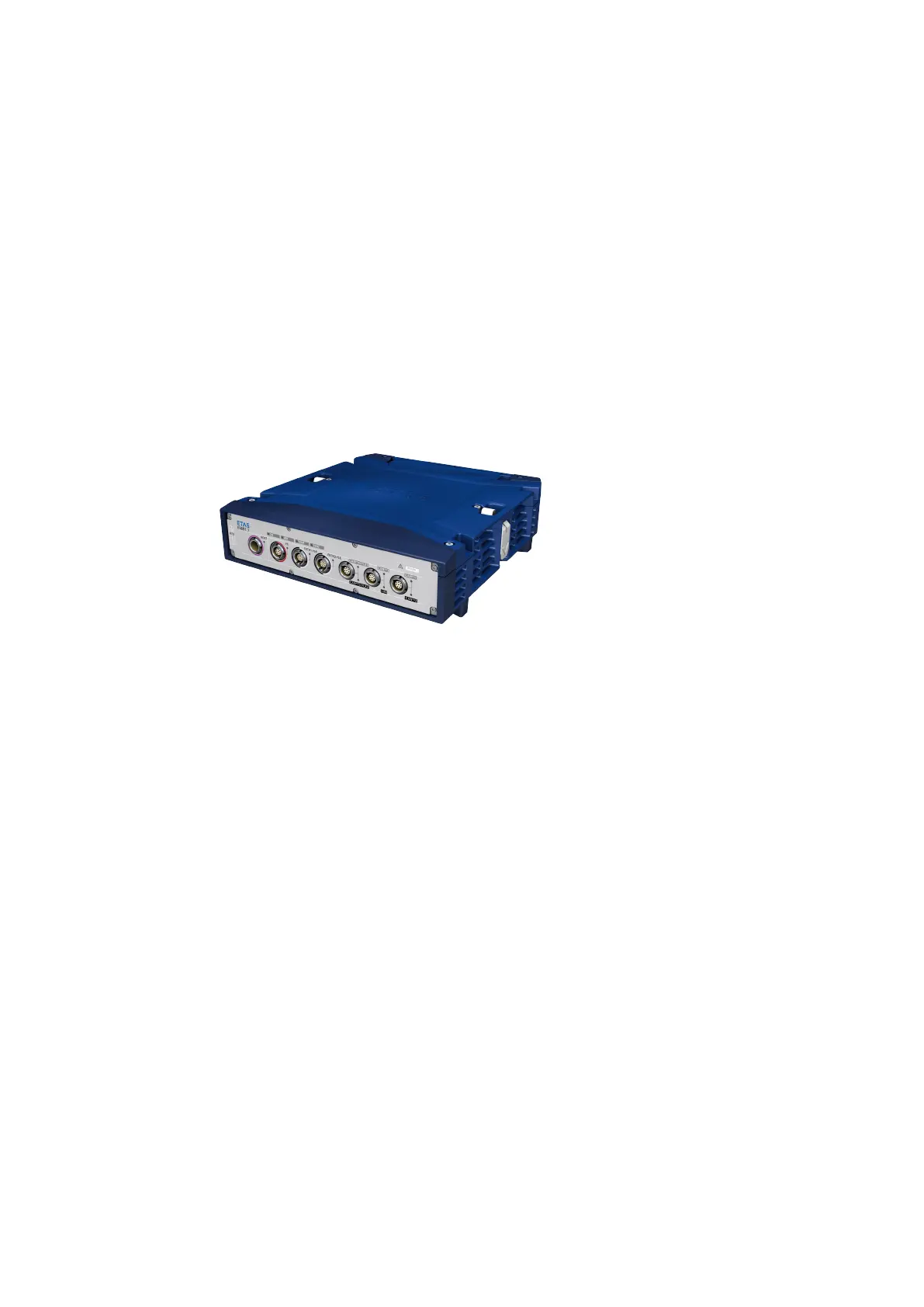

Fig. 9-1 ES891.x ECU and Bus Interface Module
The ES891.x ECU and Bus Interface Module is part of the ES800 system and sup-
ports the FlexRay, CAN FD, CAN and LIN vehicle buses as well as XETK and FETK
ECU access.
9.2 Properties
The most important properties of the ES891.x module at a glance:
- 1 Gigabit Ethernet connection (Host)
- 1 Fast Ethernet connection for compatible ETAS modules
- 2 Gigabit Ethernet connections (FETK or Ethernet)
- Automatic standby function
- Precise synchronization of all connected modules and their measuring
channels
- 5 independent CAN interfaces:
• CAN FD (> 1 Mbaud) or CAN High-Speed (max. 1 Mbaud)
• CAN protocols CAN V2.0a (standard identifier with 11 bit) and CAN V2.0b
(extended identifier with 29 bit)
• Baud rate configurable via software
• ES891.2 with CAN-SIC capability
- 1 independent LIN interface:
• LIN specification LIN V2.1
• Slave operating mode (monitoring)
