17.10 Cables for the I/O Interface
17.10.1 Cable CBV821

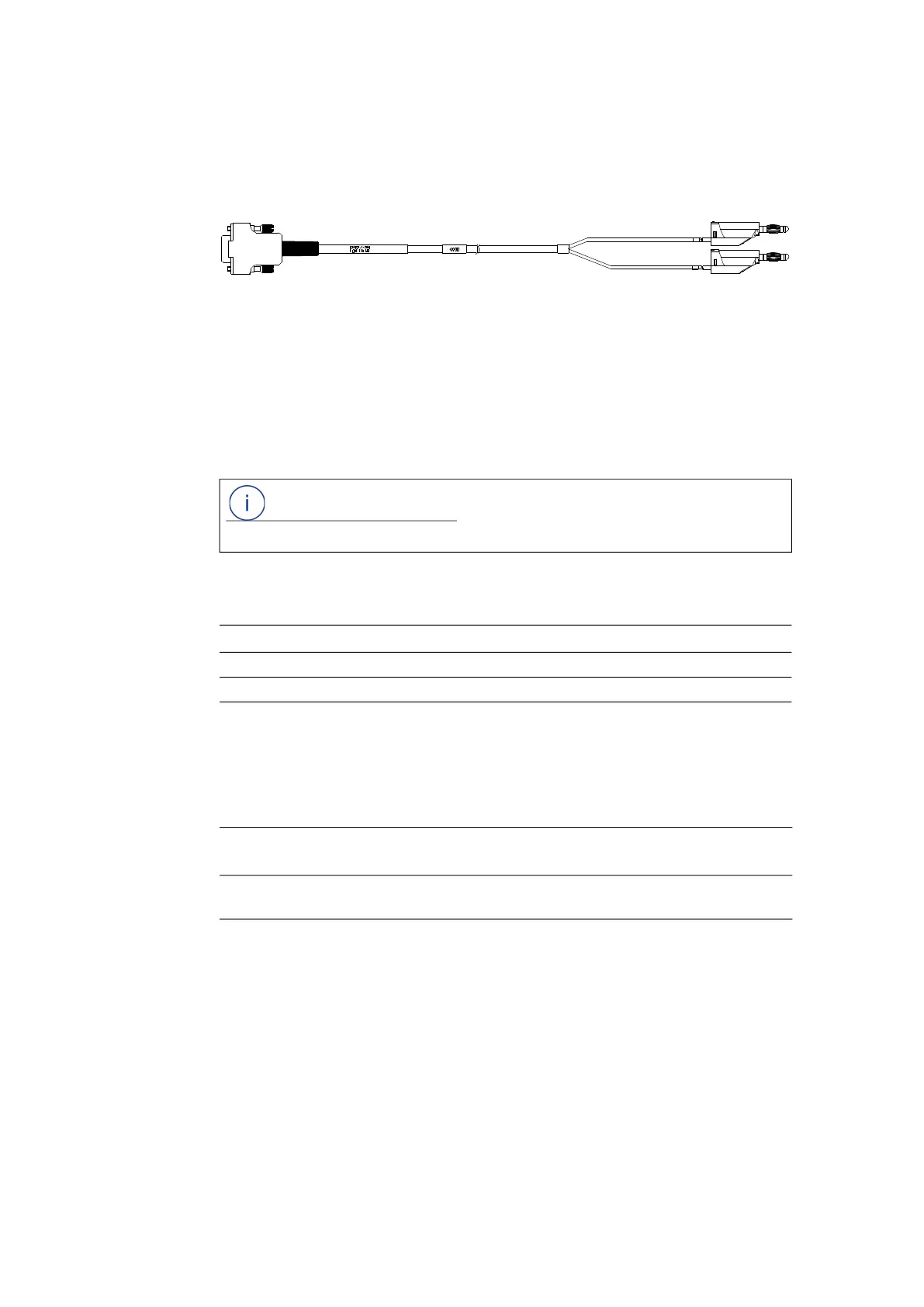

Fig. 17-35 Cable CBV821.1
Usage
Cable for connecting inputs IN1 and PSCI of the I/O interface of the ES820.1 Drive
Recorder or the ES830.1 Rapid Prototyping Module to external (trigger) signals,
e.g., to terminal 15.
Assignment of I/O Signal and Banana Plug
The banana plugs of the cable are supplied with lab plug connectors attached. The
colors of the banana plug and the lab plug connector are identical.
Temperature Range
-40 °C to +85 °C/ -40 °F to +185 °F
Order Information
NOTE
The cable ends are marked with the assigned signal name.
Pin Signal Color
12 PSCI Green
13 IN1 Yellow
Order name Short name Order
number
ES820 IO cable basic, DSUB - Banana (25fc - 2
Banana), 0m8 / 2.6 ft
CBV821.1-0m8 F 00K 110 561
