ETAS ES800 System | User Guide
16.10.2 HOST Connection (HOST)

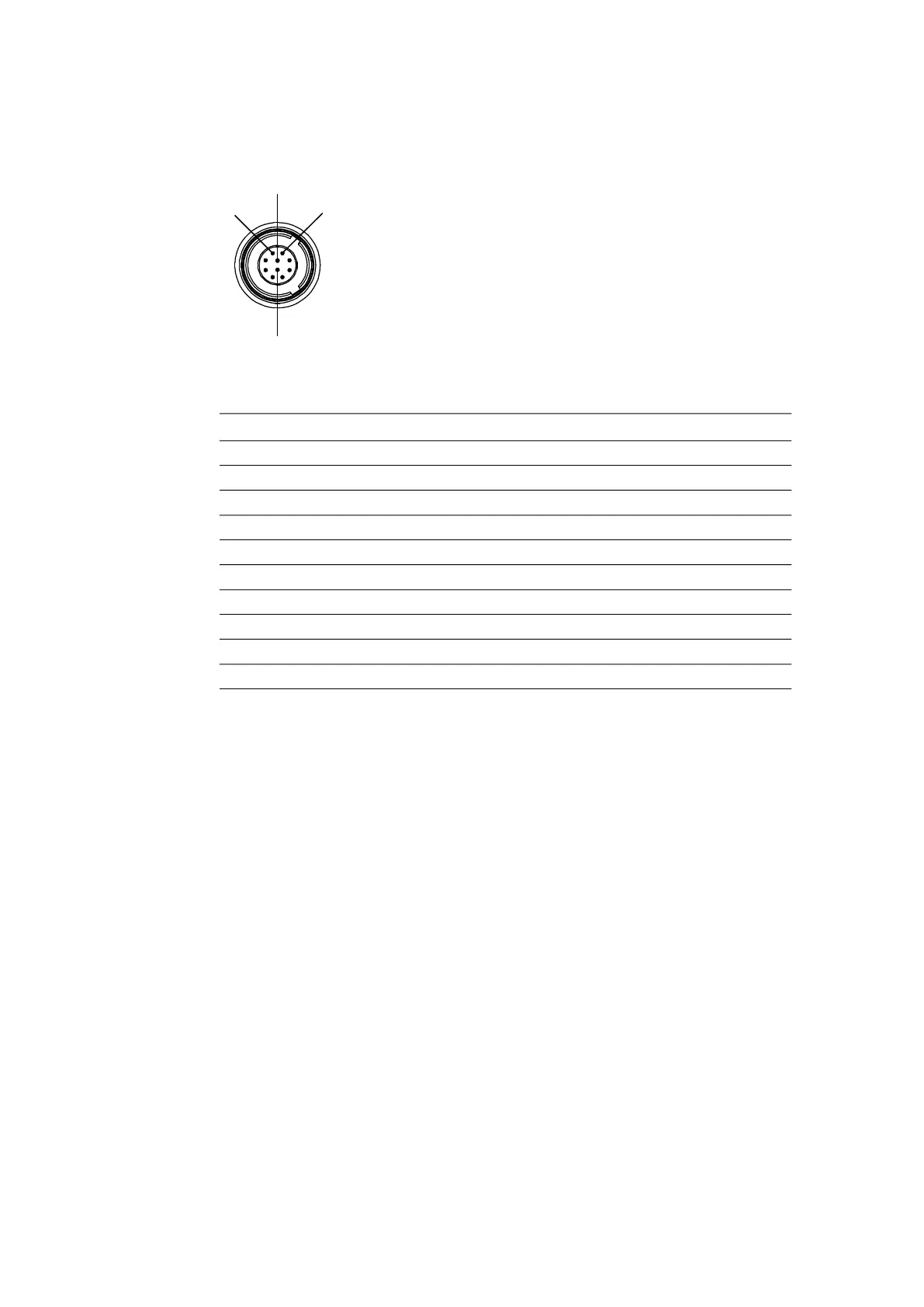

Fig. 16-3 HOST connection (HOST)
Pin Signal Meaning
1 BI_DA+ Gigabit Ethernet
2 BI_DC- Gigabit Ethernet
3 BI_DC+ Gigabit Ethernet
4 BI_DB- Gigabit Ethernet
5 BI_DB+ Gigabit Ethernet
6 BI_DD- Gigabit Ethernet
7 BI_DD+ Gigabit Ethernet
8 BI_DA- Gigabit Ethernet
9 N.C. Not connected
10 N.C. Not connected
1
8
10
9
