17.4.9 Cable CBEP420.1

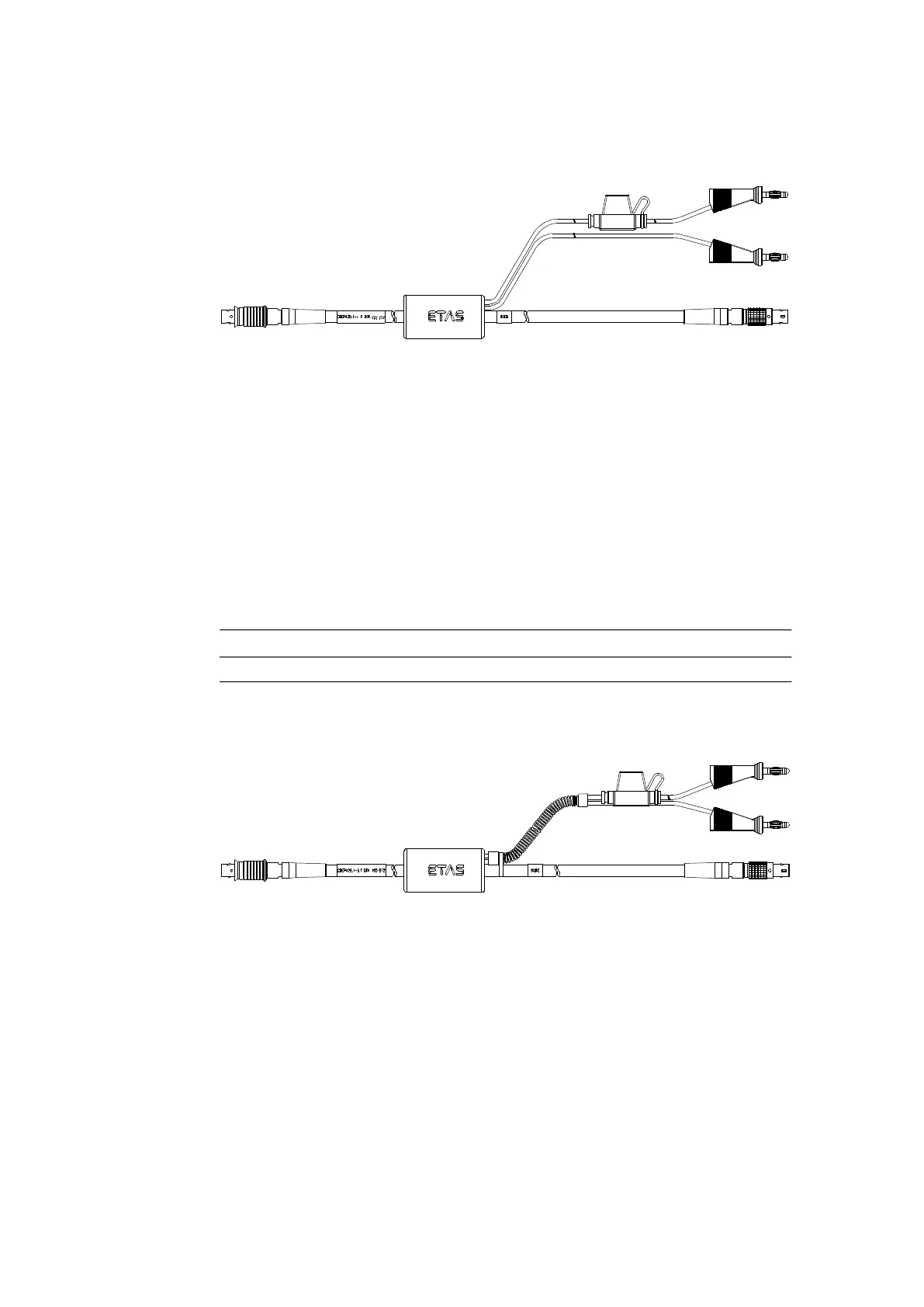

Fig. 17-10 Cable CBEP420.1
Ethernet and voltage supply connection of an ES4xx/ES63x/ES93x measuring
module with an ES600 network module or ES592/ES593-D/ES595 interface mod-
ule (if the current consumption of the connected ES4xx/ES63x chain exceeds 2.5
A), an ES1135 simulation/system controller card or an ES720 Drive Recorder. Incom
-
patible with ES610, ES611, ES620 and ES650. To connect these modules, use cable
CBEP120.
A replaceable fuse is located in the cable (MINI car blade-type fuse, fast, 3 A, 58 V).
Robust, water-proof and dust-proof (IP67).
Temperature range: -40°C to +125°C/-40°F to +257°F
17.4.10 Cable CBEP425.1
Fig. 17-11 Cable CBEP425.1
Ethernet and voltage supply connection of an ES4xx/ES63x/ES93x measuring
module with an ES600 network module or ES592/ES593-D/ES595 interface mod
-
ule (if the current consumption of the connected ES4xx/ES63x/ES93x chain
exceeds 2.5 A), an ES1135 simulation/system controller card or an ES720 Drive
Recorder.
A replaceable fuse is located in the cable (MINI car blade-type fuse, fast, 3 A, 58 V).
Robust, water-proof and dust-proof (IP67).
Product Length Order number
CBEP420.1-3 3 m F 00K 105 292
