ETAS ES800 System | User Guide
17.7 Cables and Accessories for the FlexRay Interface
17.7.1 Combined CAN/LIN/FLX Cable

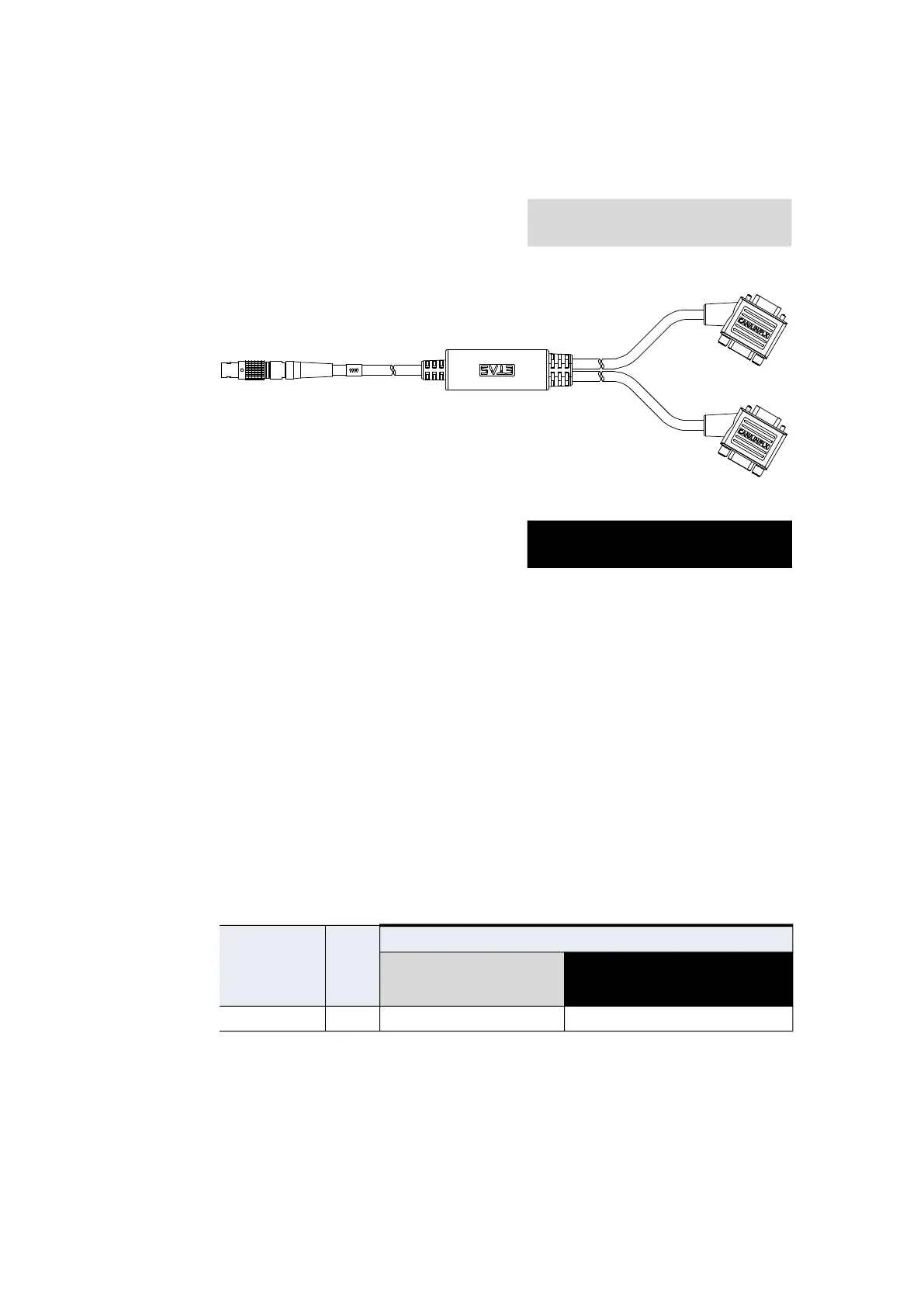

Fig. 17-25 Cable CBCFI100
Mapping of DSUB Socket-Plug Combinations of the Cable
The cable CBCFI100 allows using both interfaces of a connection at the same time.
The Lemo plug of the cable is connected to one of the combined interfaces CAN/
CAN, FLX/FLX or CAN/LIN. The other end of the cable features two 9-pin DSUB
socket-plug combinations:
- a socket-plug combination marked in gray (side B and C) for looping into
FlexRay channel 1
- a socket-plug combination marked in black (side D and E) for looping into
FlexRay channel 2
Mapping of DSUB Socket-Plug Combinations to the ES891.x
If a CBCFI100 cable is used at the FLX1/FLX2 interface of the ES891.x, these inter-
faces are mapped as follows to the DSUB socket-plug combinations:
Side B / C
(Socket / Plug: gray)
FLX1 (CHA)
FLXB (CHB)
Side A
Side D / E
(Socket / Plug: black)
ES891.x Cable Cable CBCFI100 in Fig. 17-25
Connection Socket (B) / plug (C) Socket (D) / plug (E)
(DSUB, color: gray) (DSUB, color: black)
FLX1/FLX2 1 FLX1 FLX2
