ETAS ES800 System | User Guide
In the activated state of the module, the LEDs show the following function states:
ES886.x
The four Automotive Ethernet interfaces AE1, AE2, AE3 and AE4 of the ES886.x
module are assigned to the LEDs
1, 2, 3 and 4 respectively.
In the activated state of the module, the LEDs show the following function states:
12.5.2 Automotive Ethernet Monitoring (ES886.x)
The following functions are supported at the Automotive Ethernet interfaces AE1,
AE2, AE3 and AE4 of the ES886.x modules:
- up to three(ES886.1)/four(ES886.2) BR_XETKs at the Automotive Ethernet
interfaces AE1, AE2 and AE3
and/ or
- Ethernet Monitoring at the Automotive Ethernet interfaces AE1, AE2, AE3
and AE4
and/ or
- Ethernet Monitoring with an additional internal TAP on the physical layer via
both interfaces AE1 and AE2 respectively AE3 and AE4

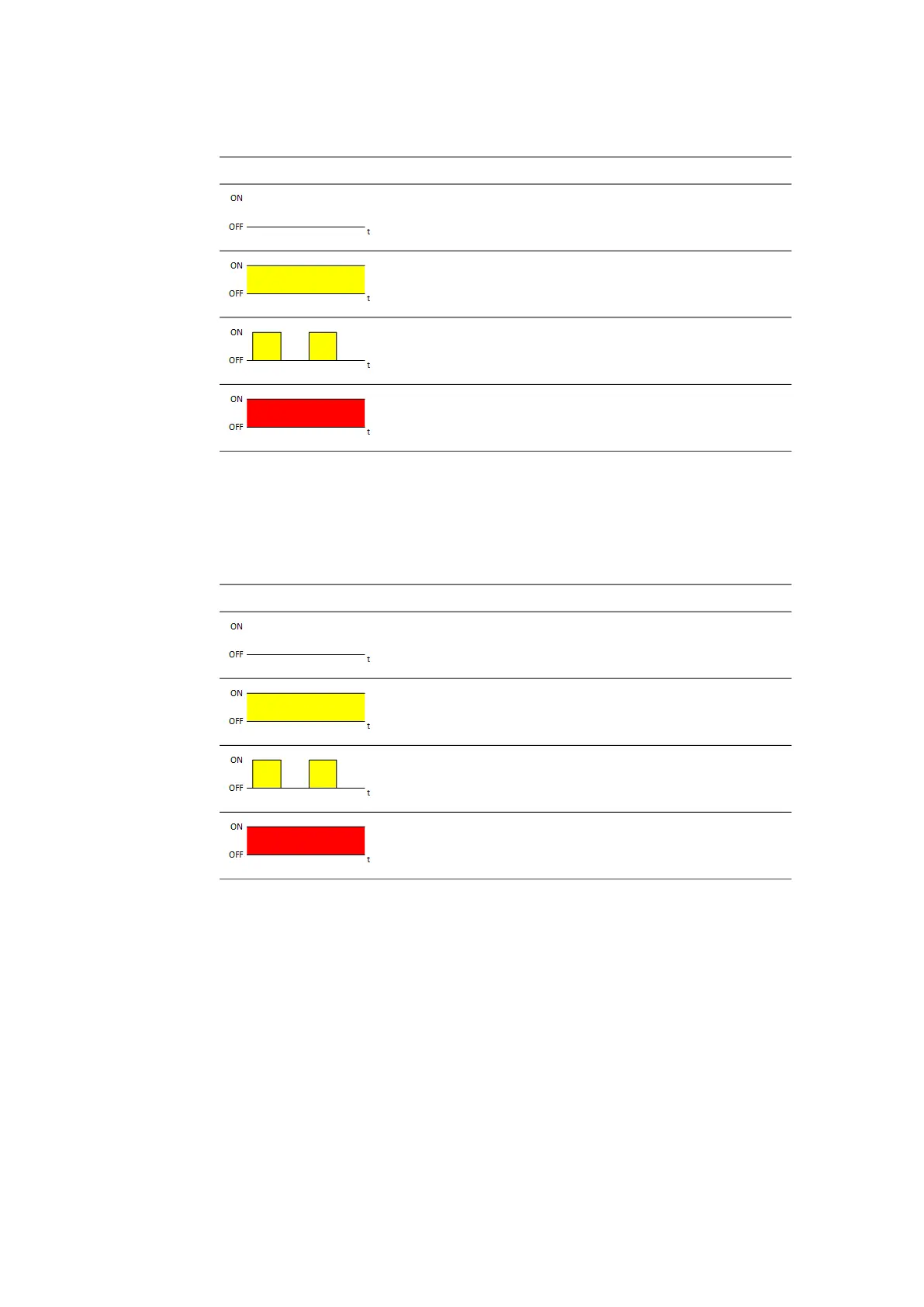

AE LED [1, 2, 3] Description State
Off Physical Automotive Ethernet connec-
tion not available
Illuminated yel-
low
Physical Automotive Ethernet connec-
tion available
Flashing yellow,
0.5 s on/0.5 s off
Automotive Ethernet connection active
Illuminated red Error state: Automotive Ethernet data
transfer interrupted
AE LED [1, 2, 3, 4] Description State
Off Physical Automotive Ethernet connec-
tion not available
Illuminated yel-
low
Physical Automotive Ethernet connec-
tion available
Flashing yellow,
0.5 s on/0.5 s off
Automotive Ethernet connection active
Illuminated red Error state: Automotive Ethernet data
transfer interrupted
