60 | ES886.x ECU and Bus Interface Module
ETAS ES800 System | User Guide
8 ES886.x ECU and Bus Interface Module
ES886.1 and ES886.2 are named in this document ES886.x. Only if there are differ
-
ences, then they are named ES886.1 or ES886.2.
The difference between the ES886.1 and ES886.2:
- CAN-functionality. See chapter “CAN Interface (CAN)” on page 160.
- AE-functionality. See chapter “Automotive Ethernet Interface (AE)” on
page 94.
This chapter contains information about the following topics:
• Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
• Properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
• Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
• Function Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
8.1 Overview

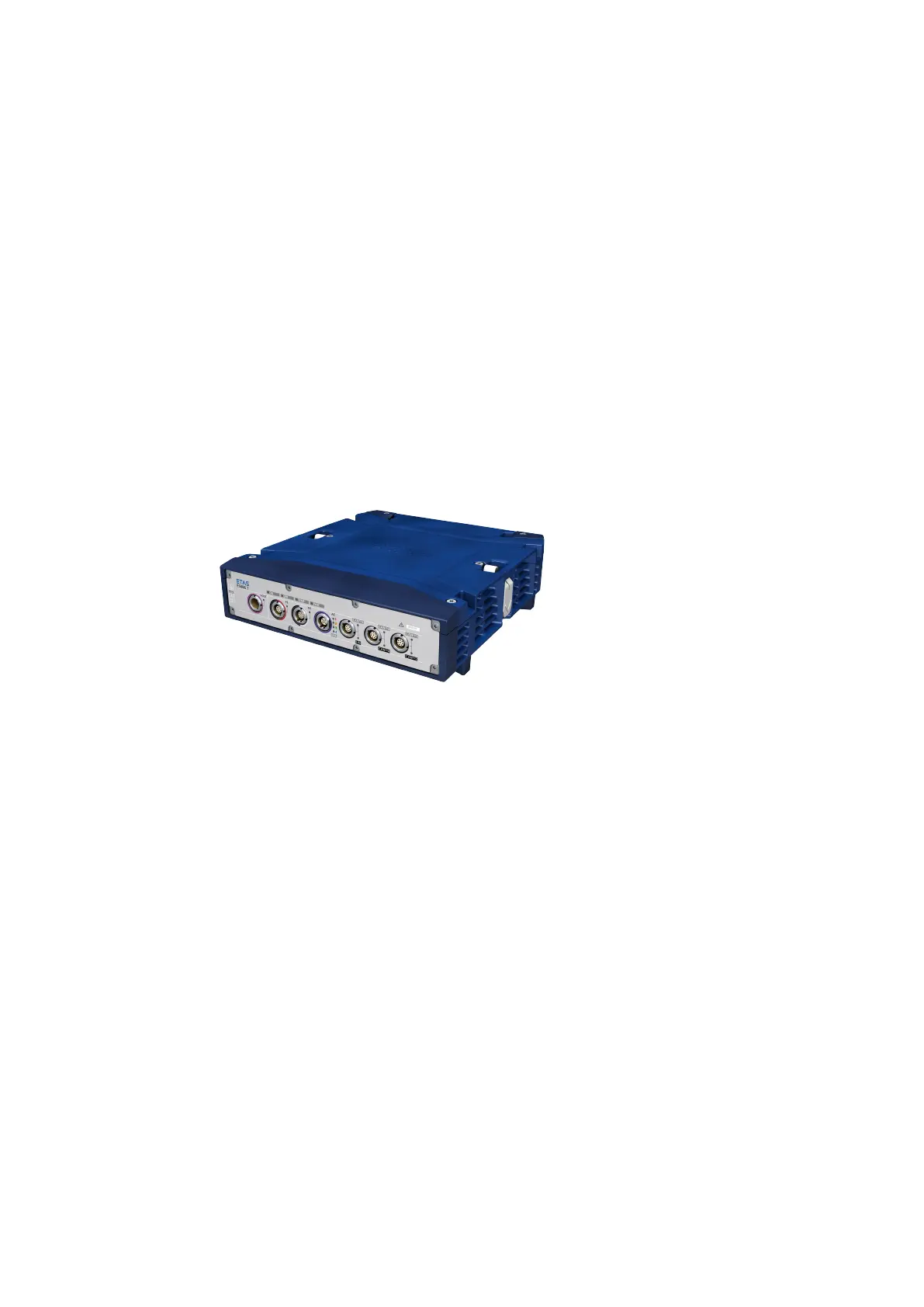

Fig. 8-1 ES886.x ECU and Bus Interface Module
The ES886.x ECU and Bus Interface Module is part of the ES800 system and sup-
ports Ethernet based vehicle buses, CAN FD, CAN and LIN as well as BR_XETK and
XETK ECU access.
8.2 Properties
The most important properties of the ES886.x module at a glance:
- 1 Gigabit Ethernet connection (Host)
- 1 Fast Ethernet connection
Ethernet monitoring:
• Hardware filtering for Ethernet Monitoring (at least 8 VLAN IDs are sup-
ported)
• Parallel communication, e.g., XCP-on-Ethernet, is possible
Connection for compatible ETAS modules
- 1 Gigabit Ethernet connection
Ethernet monitoring:
• Hardware filtering for Ethernet Monitoring (at least 8 VLAN IDs are sup-
ported)
• Parallel communication, e.g., XCP-on-Ethernet, is possible
- 4 Automotive Ethernet connections (100BASE-T1)
