ETAS ES800 System | User Guide
17.6.2 CBEB242 Cable

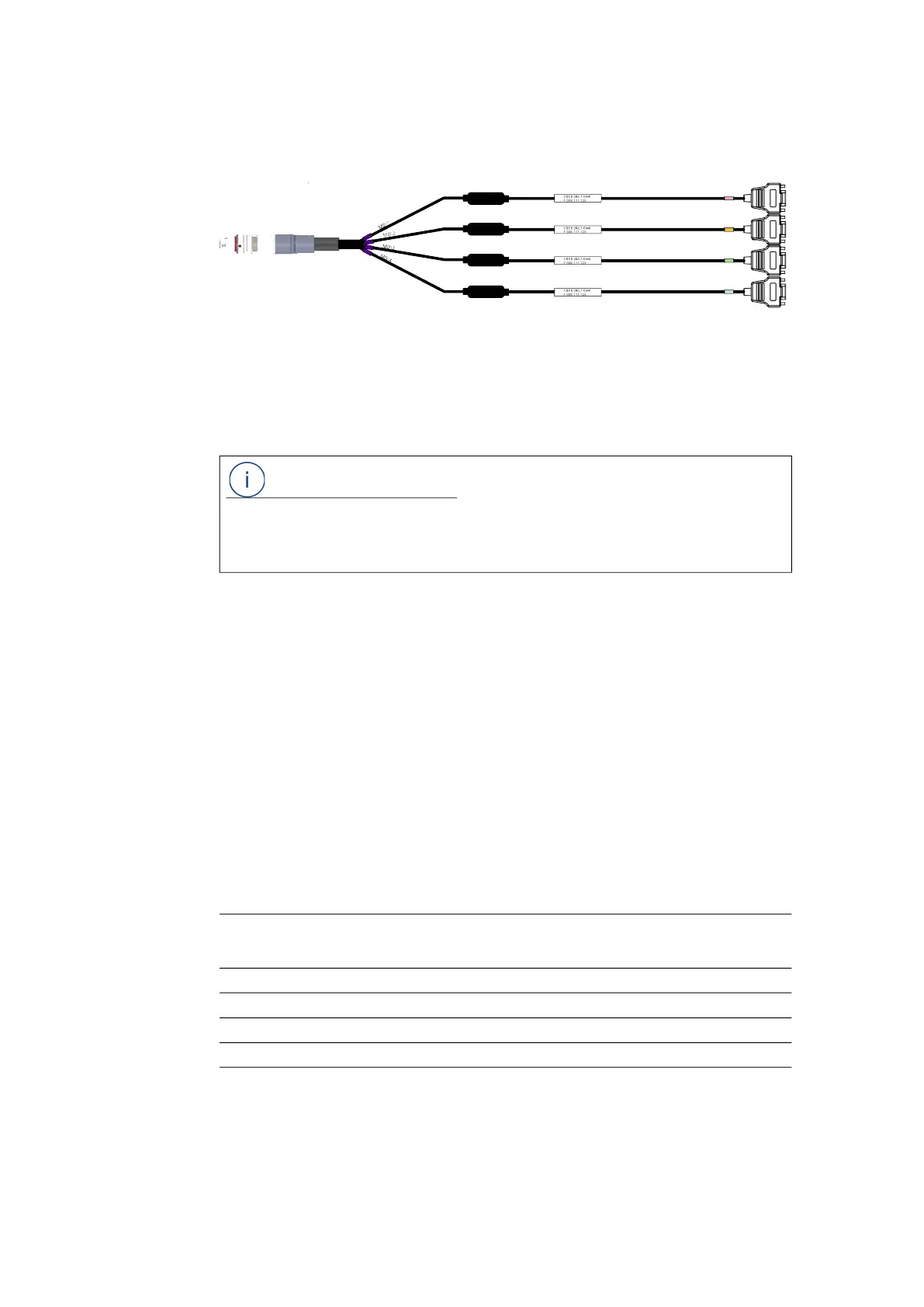

Fig. 17-22 CBEB242.1 cable
Usage
Cable for connecting the Automotive Ethernet interface (AE) of an ES800 module
to BR_XETKs.
Assignment of the Automotive Ethernet Channels to the Cable
Sections
The CBEB242.1 cable consists of four identical cable sections [n], each mapped to
an Automotive Ethernet channel [n] of the Automotive Ethernet interface (AE)
and wired in accordance with the same pattern. Each of the cable section is
equipped with a DSUB9 connector.
Labeling of the Automotive Ethernet Channels and the Cable Sec-
tions
The cable sections are labeled [n]=1 to [n]=4 and are also marked with the color of
the LEDs corresponding to the channels [n] at the AE connection of the module.
The colors of the channels [n] at the AE connection of the module and the cable
sections are identical.
When using the CBEB242.1 cable at the AE interface of the module ES882.x (three
Automotive Ethernet channels), three of the four cable harnesses are used in
accordance with the assignment in the table.
NOTE
The CBEB242.1 cable is designed for directly connecting BR_XETKs. For other
areas of application, ETAS recommends the CBEB240.1 Automotive Ethernet
cable (see chapter
17.6.1 on page 196).
ES800 module Color Automotive Ethernet channel
"AE" LED "AE" LED/cable ES882.x ES886.x
1 Purple AE 1 AE 1
2 Orange AE 2 AE 2
3 Green AE 3 AE 3
4 Blue - AE 4
