9.3 Connections
The front side of the ES891.x module features the following connections:

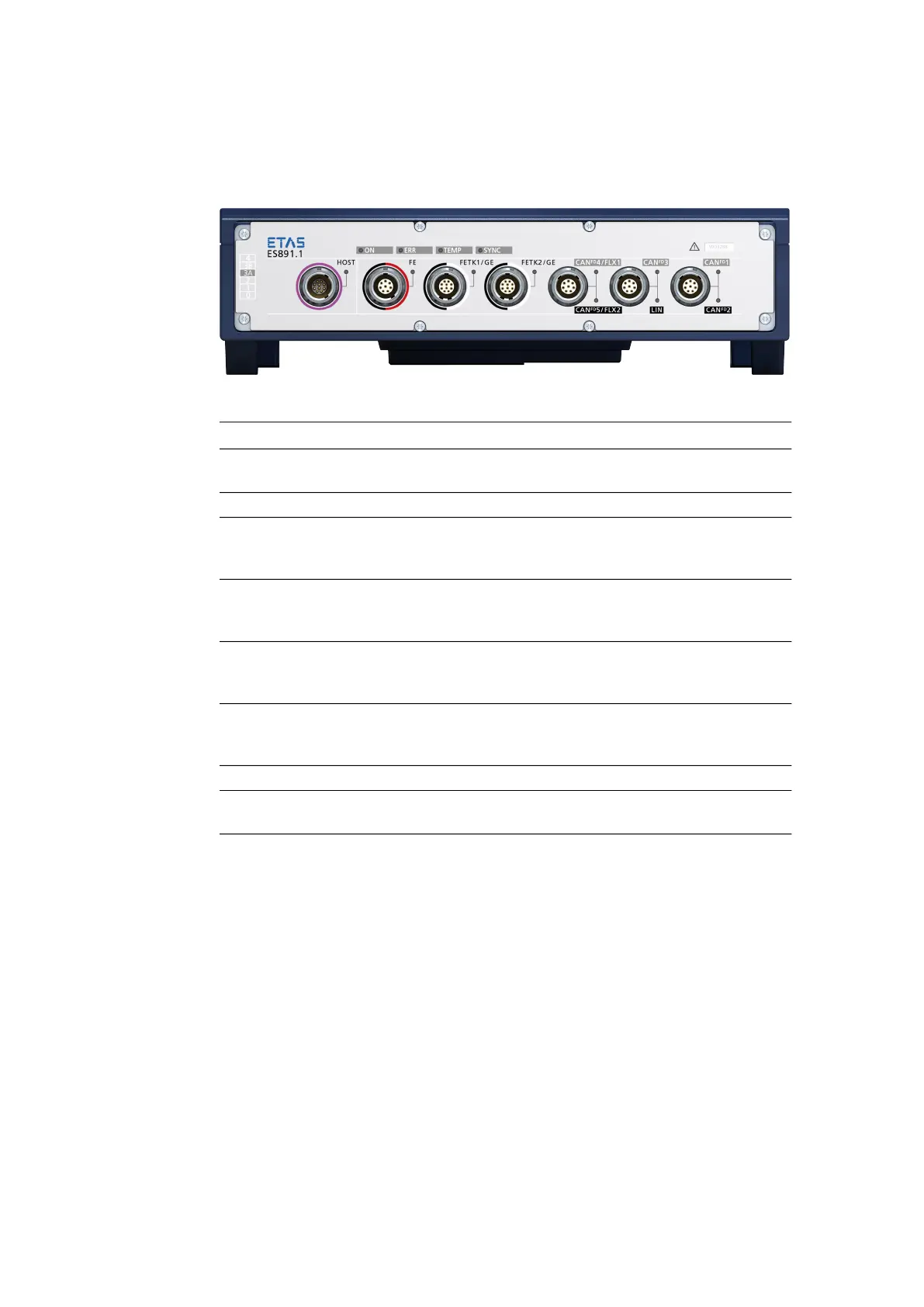

Fig. 9-2 ES891.x Front Side
Information on combining modules of the ES800 system with ETAS modules from
other series can be found in chapter
3.7 on page 27.
Name Interface For description see
HOST 1 x Gigabit Ethernet
(HOST)
Chapter 12.1 on page 89
FE 1 x Fast Ethernet Chapter 12.2 on page 90
FETK1 / GE 1 x FETK
or
1 x Gigabit Ethernet
Chapter 12.4 on page 92
FETK2 / GE 1 x FETK
or
1 x Gigabit Ethernet
Chapter 12.4 on page 92
CAN4/CAN5
or
FLX1/FLX2
2 x CAN FD
or
1 x FlexRay A/B
1)
Chapter 12.7 on page 102
and
chapter 12.6 on page 100
CAN3 / LIN 1 x CAN FD and 1 x LIN Chapter 12.7 on page 102
and
chapter 12.8 on page 105
CAN1 / CAN2 2 x CAN FD Chapter 12.7 on page 102
1)
: Depending on the configuration
