ETAS ES800 - Connections and Control Elements; ES820.1 Front Side

34 | ES820.1 Drive Recorder
ETAS ES800 System | User Guide
5.3 Connections and Control Elements
The front side of the ES820.1 module features the following connections and con-
trol elements:

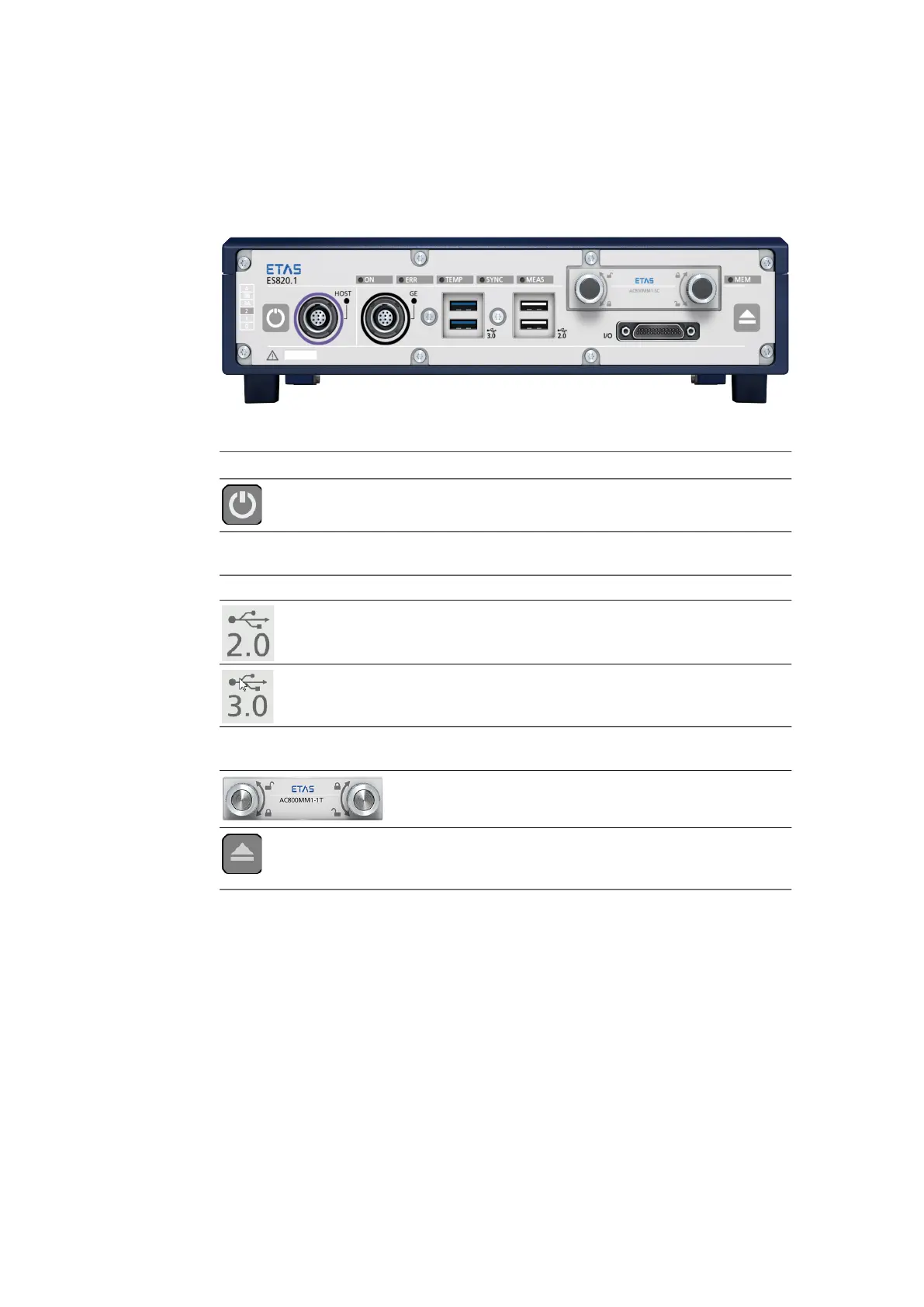

Fig. 5-2 ES820.1 front side
Information on combining modules of the ES800 system with ETAS modules from
other series can be found in chapter
3.7 on page 27.
Name Interface For description see
"Power" button for
switching on and off
Chapter 5.4.6 on page 37
HOST 1 x Gigabit Ethernet
(HOST)
Chapter 12.1 on page 89
GE 1 x Gigabit Ethernet Chapter 12.3 on page 91
2 x USB 2.0 Chapter 5.4.2 on page 35
2 x USB 3.0 Chapter 5.4.2 on page 35
I/O Digital inputs and out-
puts
Chapter 12.10 on page 109
Replaceable memory
module, optional
Chapter 5.4.5 on page 36
Button for safely
removing the memory
module
Chapter 5.4.7 on page 38
