52 | ES830.1 Rapid Prototyping Module
ETAS ES800 System | User Guide
6.5 Function Groups

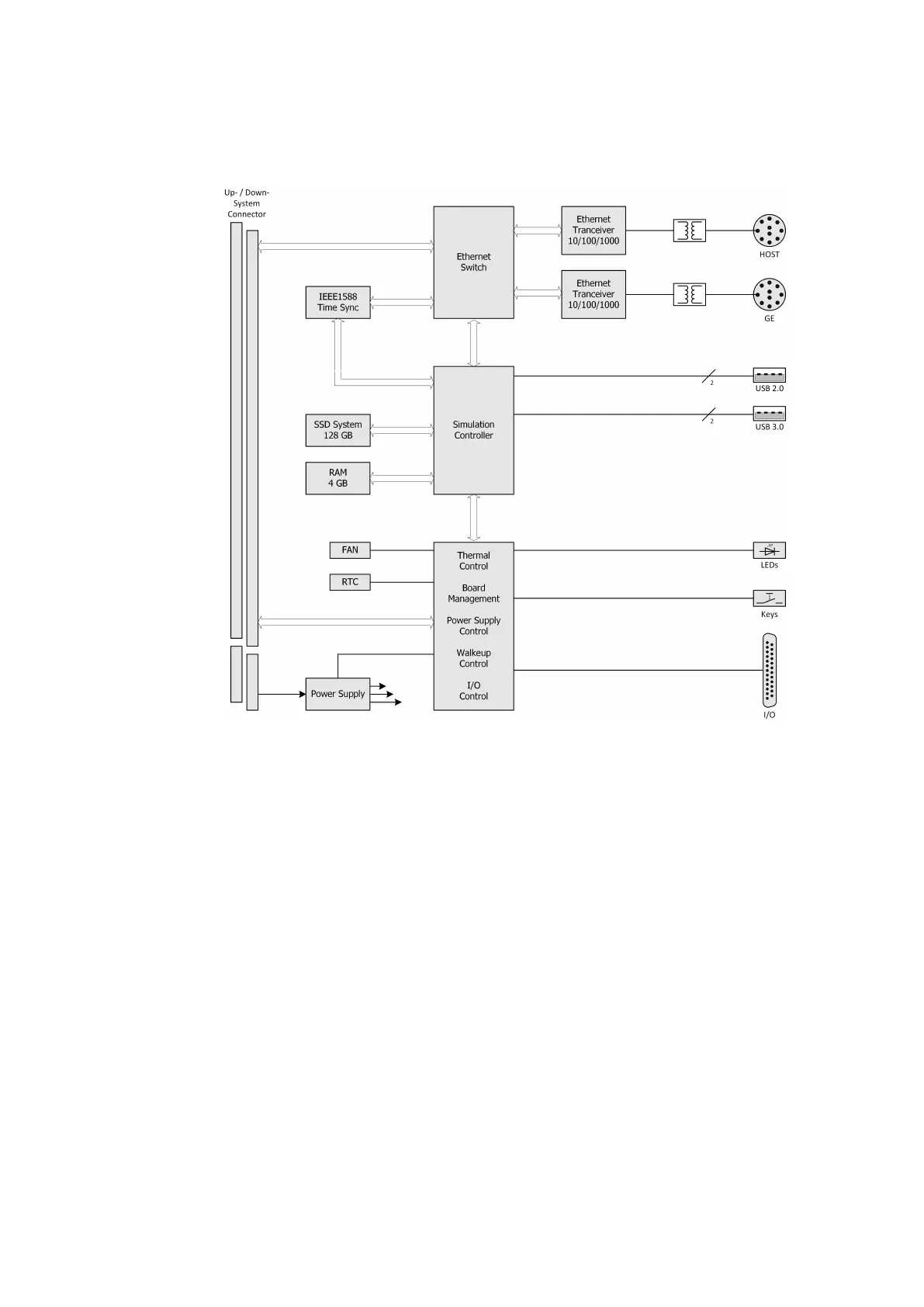

Fig. 6-3 ES830.1 Function Groups
6.5.1 Ethernet Switch
In addition to the Ethernet connection in the system connector of the stack (see
chapter
3.3 on page 24), the internal Ethernet switch of the module provides inter-
faces for the connection of further modules:
- a HOST Ethernet interface (see chapter 12.1 on page 89)
- a GE Gigabit Ethernet interface (see chapter 12.3 on page 91)
The Ethernet interfaces enable time synchronization in accordance with IEEE1588.
6.5.2 USB Interfaces
The Rapid Prototyping Module ES830.1 is equipped with 4 independent USB inter-
faces (2 x USB 3.0, 2 x USB 2.0) for extending the module (see chapter 16.9.11
on page 163).
6.5.3 "I/O" Interface
The ES830.1 module provides digital inputs and outputs with different functions at
the "I/O" interface (see chapter 12.10 on page 109).
