ETAS ES800 System | User Guide
16.10.9 CAN / LIN Connection (CAN3/LIN)

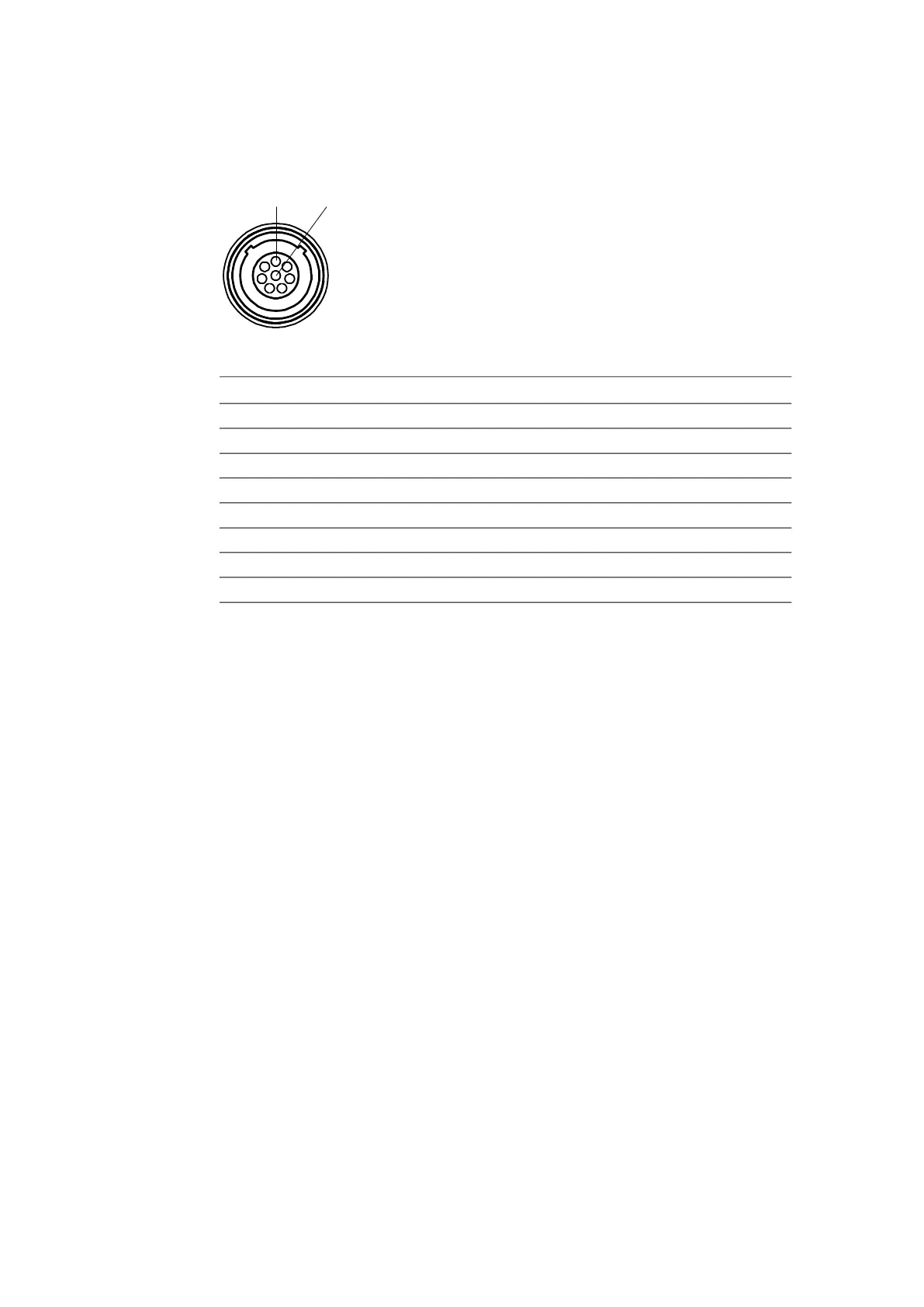

Fig. 16-10 CAN/LIN connection (CAN3/LIN)
Pin Signal Meaning
1 LIN_UBATT LIN, UBATT
2 CAN3_L CAN 3, low
3 CAN3_GND_1 CAN 3, ground
4 LIN LIN
5 LIN_GND LIN, ground
6 CAN3_GND_2 CAN 3, ground
7 CAN3_H CAN 3, high
8 - Reserved
1
8
