ETAS ES800 System | User Guide
16.10.11 I/O Connection (I/O)
Functional description see chapter “I/O Interface (I/O)” on page 109.

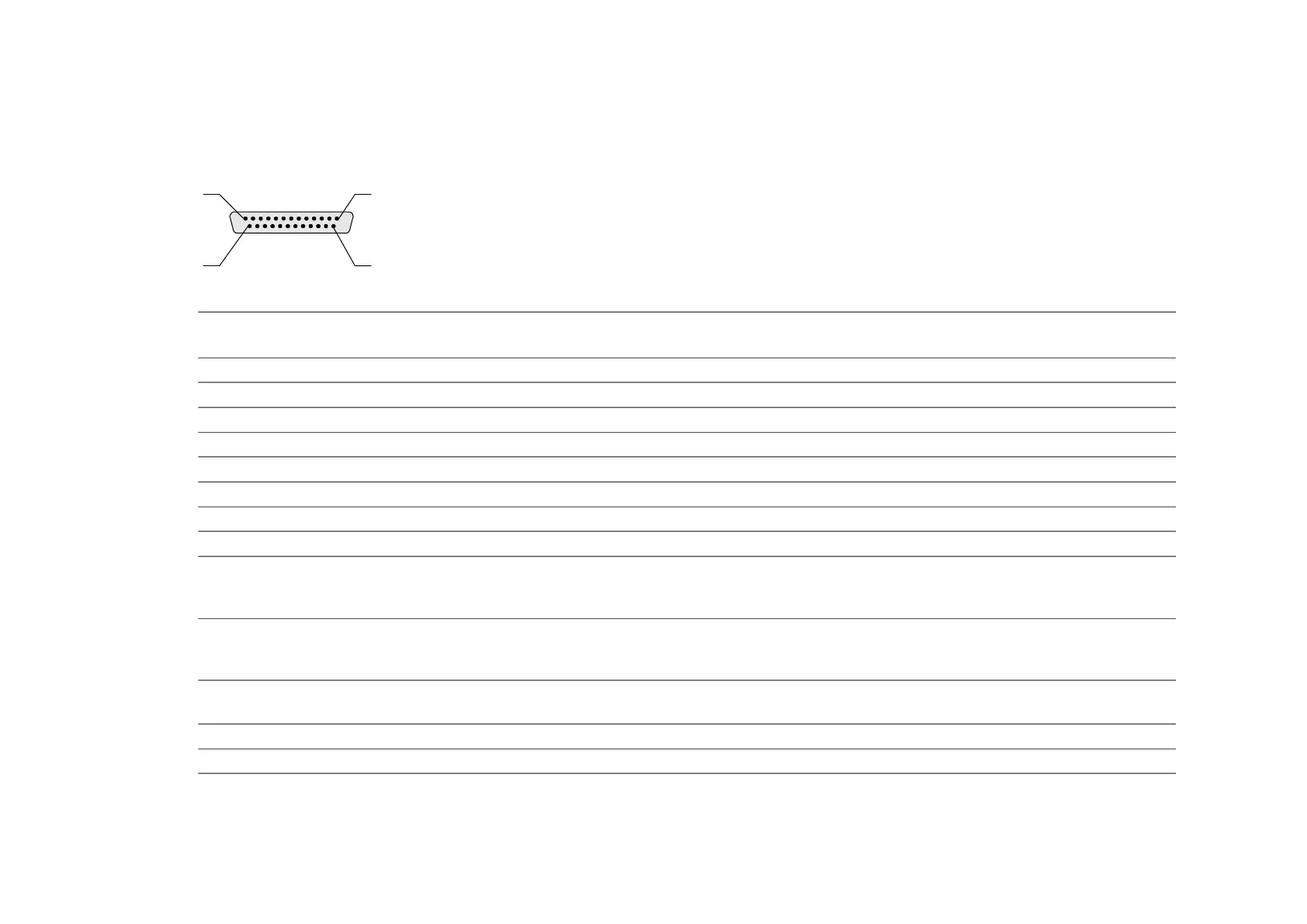

Fig. 16-12 I/O connection
Pin Signal Type Logic I max.
[mA]
Meaning
1 OUT_1 Output 5 V 10 Low: <0.5 V @ 0 mA, high: > 2.5 V @ 10 mA, can be used as INCA signal
2 OUT_2 Output 5 V 10 Low: <0.5 V @ 0 mA, high: > 2.5 V @ 10 mA, can be used as INCA signal
3 OUT_3 Output 5 V 10 Low: <0.5 V @ 0 mA, high: > 2.5 V @ 10 mA, can be used as INCA signal
4 OUT_4 Output 5 V 10 Low: <0.5 V @ 0 mA, high: > 2.5 V @ 10 mA, can be used as INCA signal
5 GND - - - Ground
6 GND - - - Ground
7 GND - - - Ground
8 GND - - - Ground
9 OUT_STA-
TUS
Output 5 V state Low: <0.5 V @ 0 mA, high: > 2.5 V @ 10 mA
High = ES820.1/ ES830.1 switched on,
Low = ES820.1/ ES830.1 in standby
11 IN_POW-
ER_BUT-
TON
Input 3.3 V - Low: <2.0 V, high: > 2.4 V
For connecting an external "Remote Power" button to ground; function of external "Remote
Power" button and "Power" button on the module is identical
12 PSCI Input - - Low: <2.2 V, high: > 2.7 V
To be switched on automatically when e.g., the ignition (Kl.15) is switched on
13 IN1 Input - - Low: <2.2 V, high: > 2.7 V. Can be used for INCA signals (signal state, trigger)
14 IN2 Input - - Low: <2.2 V, high: > 2.7 V. Can be used for INCA signals (signal state, trigger)
