16.10.7 FlexRay Connection (FLX1/FLX2)

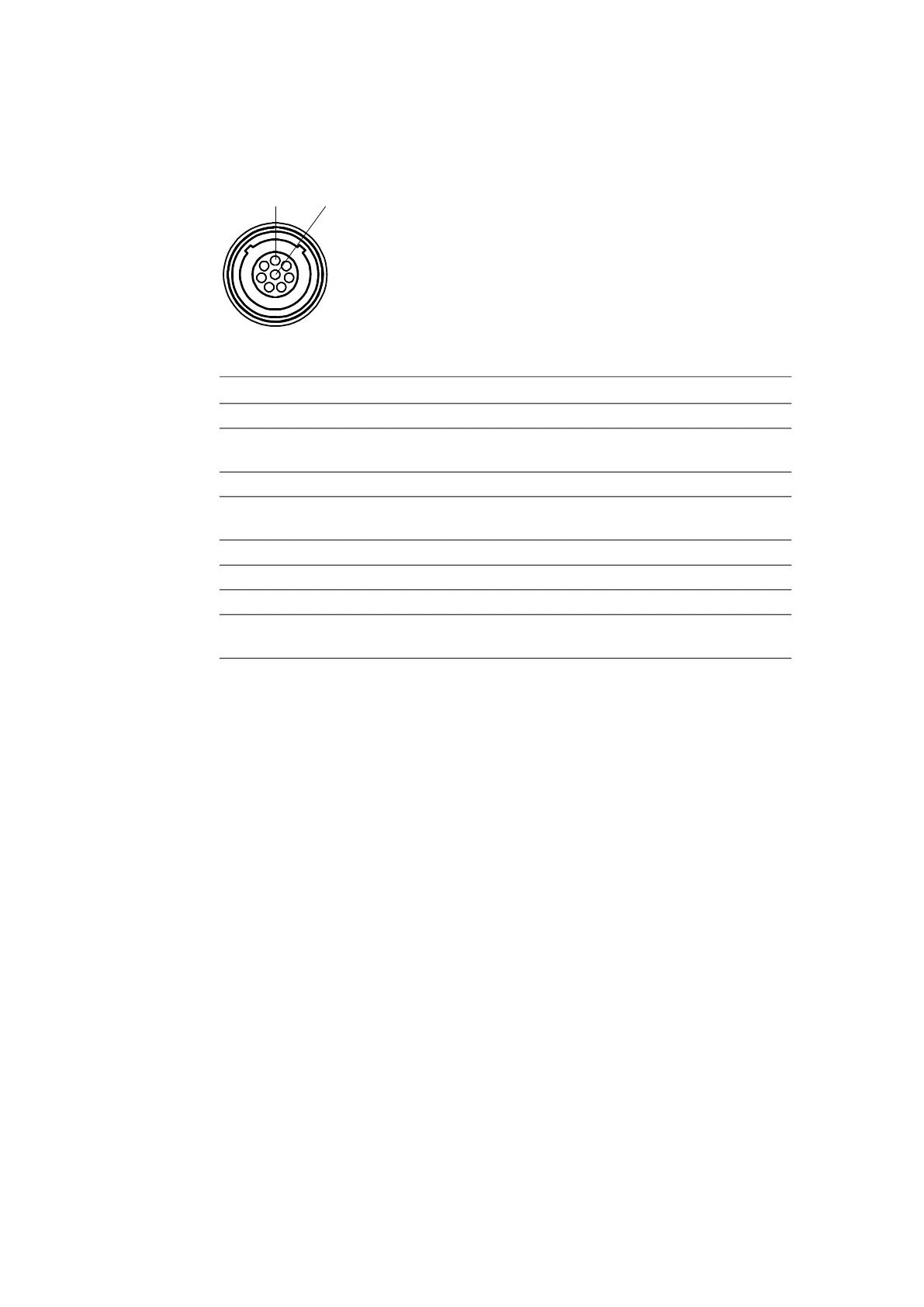

Fig. 16-8 FlexRay connection (FLX1/FLX2)
Pin Signal Meaning
1 - Reserved
2 FLX1 B-nega-
tive
FlexRay node 1, channel A, bus negative
3 FLX1 GND FlexRay node 1, channel A, ground
4 FLX2 B-posi-
tive
FlexRay node 2, channel B, bus positive
5 FLX2 GND FlexRay node 2, channel B, ground
6 FLX1 GND FlexRay node 1, channel A, ground
7 FLX1 B-positive FlexRay node 1, channel A, bus positive
8 FLX2 B-nega-
tive
FlexRay node 2, channel B, bus negative
