ETAS ES800 System | User Guide
Assignment of the Automotive Ethernet Signal to the LEMO Con-
nectors

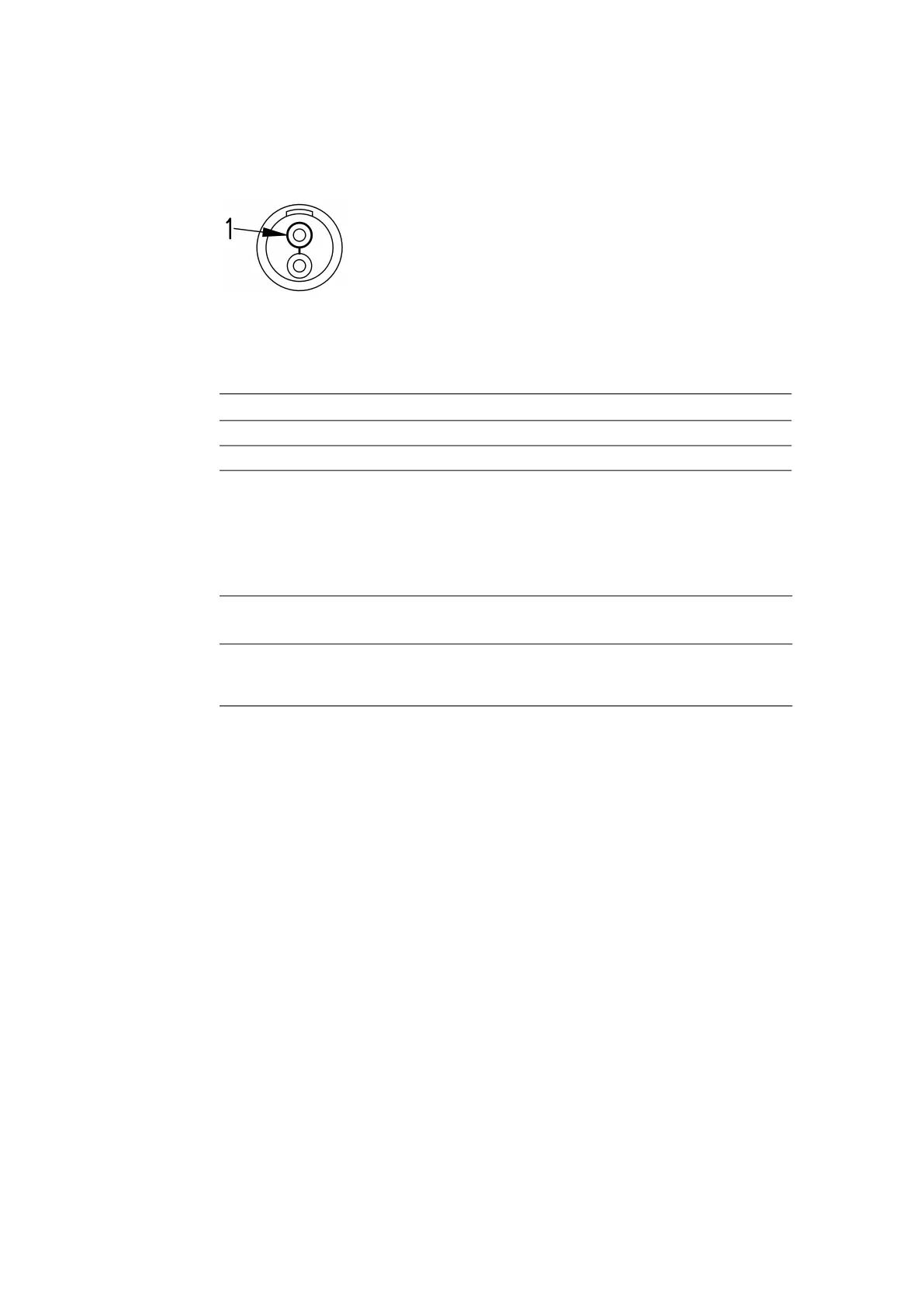

Fig. 17-21 "AE" connection (one cable section)
The assignment of the connections of the LEMO connector of a cable section to
the signals of an Automotive Ethernet channel [N] is represented in the table.
Temperature Range
-40 °C to +85 °C/ -40 °F to +185 °F
Order Information
Pin Signal Meaning
1 AE [n]- Automotive Ethernet, channel [n], BI_DA-
2 AE [n]+ Automotive Ethernet, channel [n], BI_DA+
Order name Short name Order
number
Automotive Ethernet Splitter cable 100 Mbit/s,
Yamaichi YCP - 4x Lemo PHA 1B (8mc -4x 2fc),
0m4
CBEB240.1-0m4 F 00K 111 122
