17.4.3 Cable CBE401.1

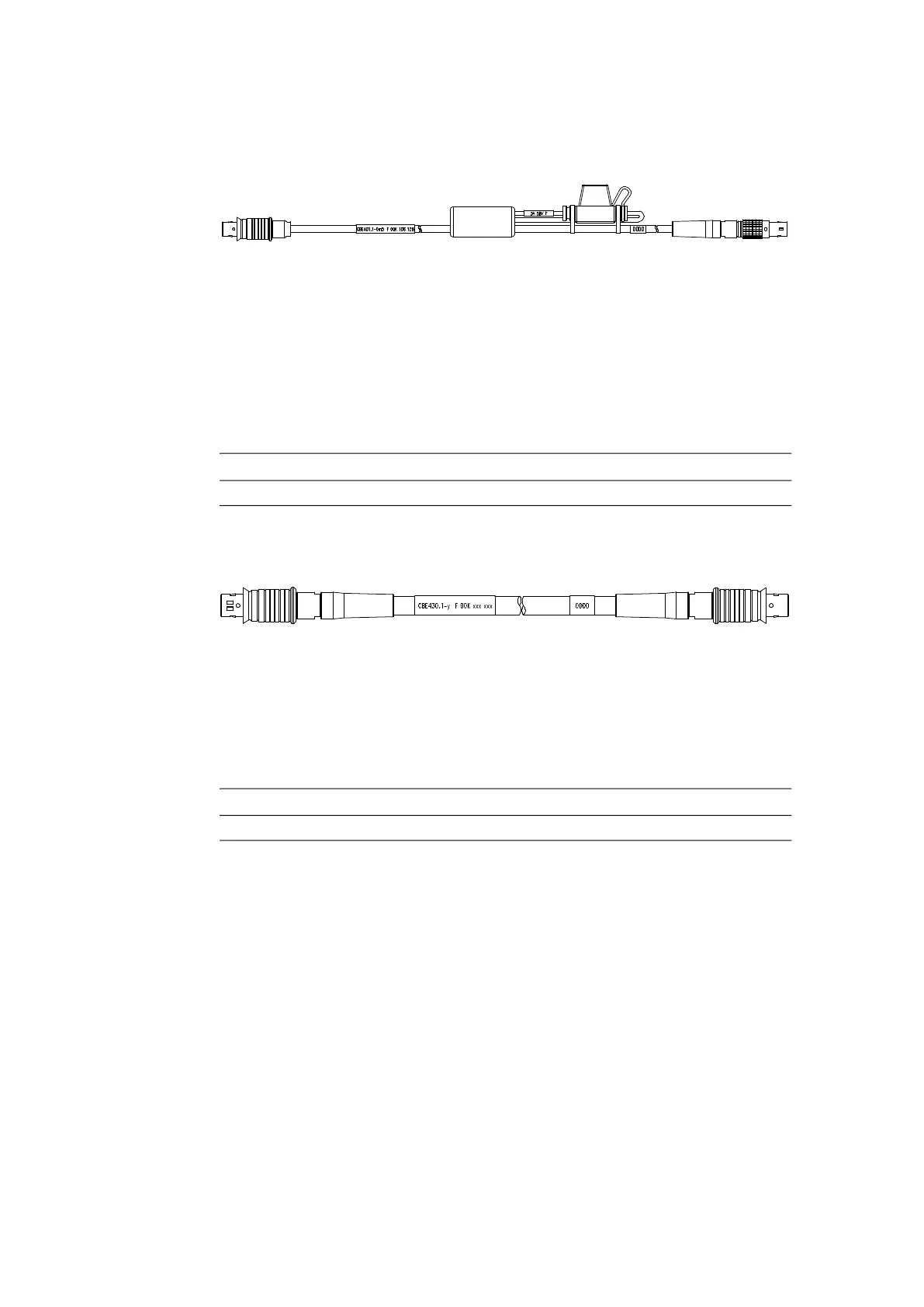

Fig. 17-4 Cable CBE401.1
Ethernet and voltage supply connection of an ES4xx/ES63x/ES93x measuring
module to an ES600 network module or an ES592/ES593-D/ES595 interface mod
-
ule.
A replaceable fuse is located in the cable (MINI car blade-type fuse, fast, 3 A, 58 V).
Robust, water-proof and dust-proof (IP67).
Temperature range: -40°C to +125°C/-40°F to +257°F
17.4.4 Cable CBE430.1
Fig. 17-5 Cable CBE430.1
Cable for interconnecting ES4xx/ES63x/ES93x modules. Incompatible with ES59x,
ES6xx, ES11xx. To connect this modules, use cable CBE130 or CBE140.
Robust, water-proof and dust-proof (IP67).
Temperature range: -40°C to +125°C/-40°F to +257°F
Product Length Order number
CBE401.1-0m5 0.5 m F 00K 106 128
Product Length Order number
CBE430.1-0m45 0.45 m F 00K 104 923
