ETAS ES800 System | User Guide
16.10.10 CAN Connection (CAN4/CAN5)

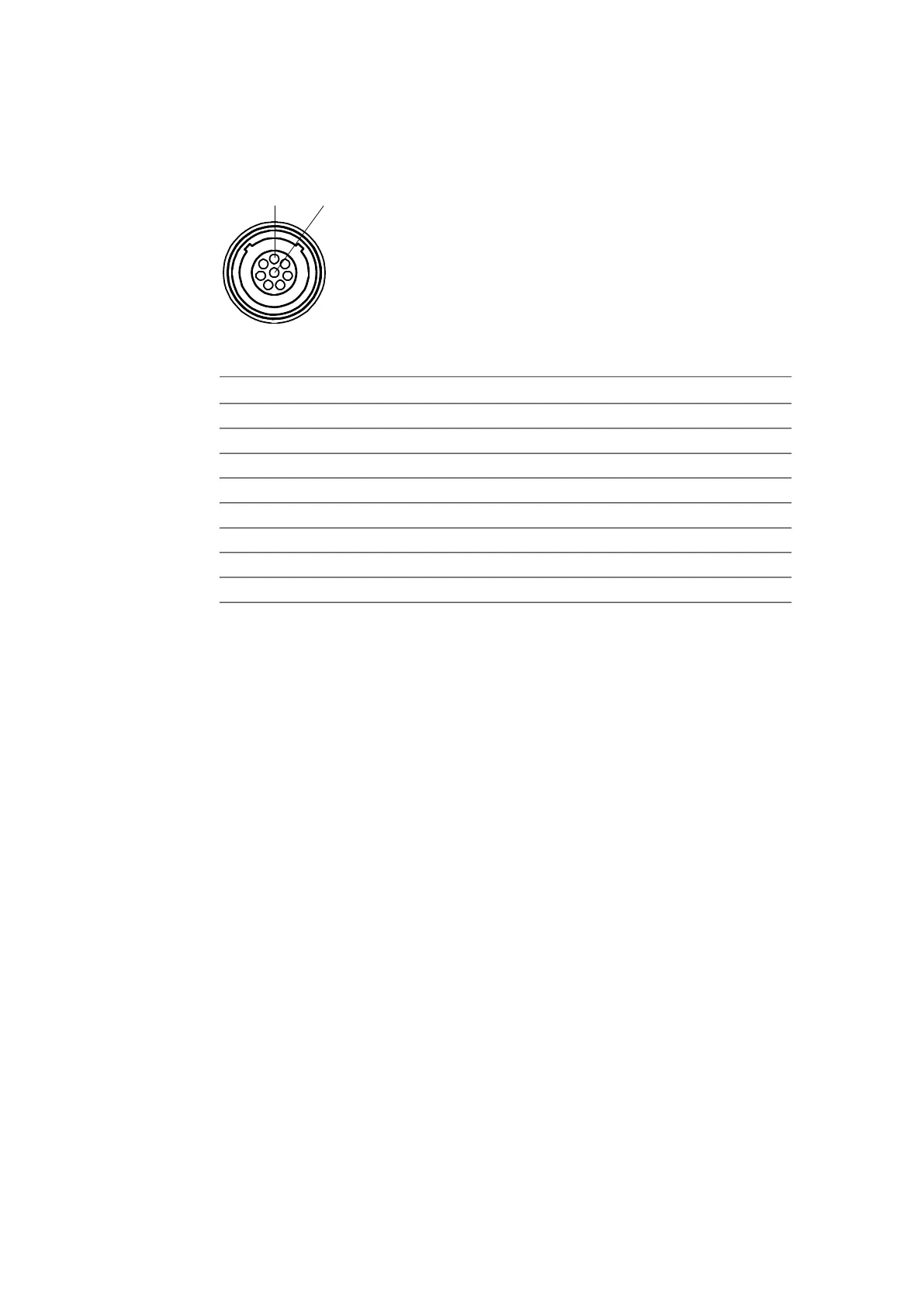

Fig. 16-11 CAN connection (CAN4/CAN5)
Pin Signal Meaning
1 - Reserved
2 CAN4_L CAN 4, low
3 CAN4_GND_1 CAN 4, ground
4 CAN5_H CAN 5, high
5 CAN5_GND CAN 5, ground
6 CAN4_GND_2 CAN 4, ground
7 CAN4_H CAN 4, high
8 CAN5_L CAN 5, low
1
8
